5 I Before tightening the 4 screws completely, grease
the thread of the thru axle and screw it partly into
the M12 nut while still allowing access to the M3x5
screws. This will ensure that the ttings are aligned.
Remove the thru axle and tighten all 4 M3x5 screws
to a torque of 1 Nm.

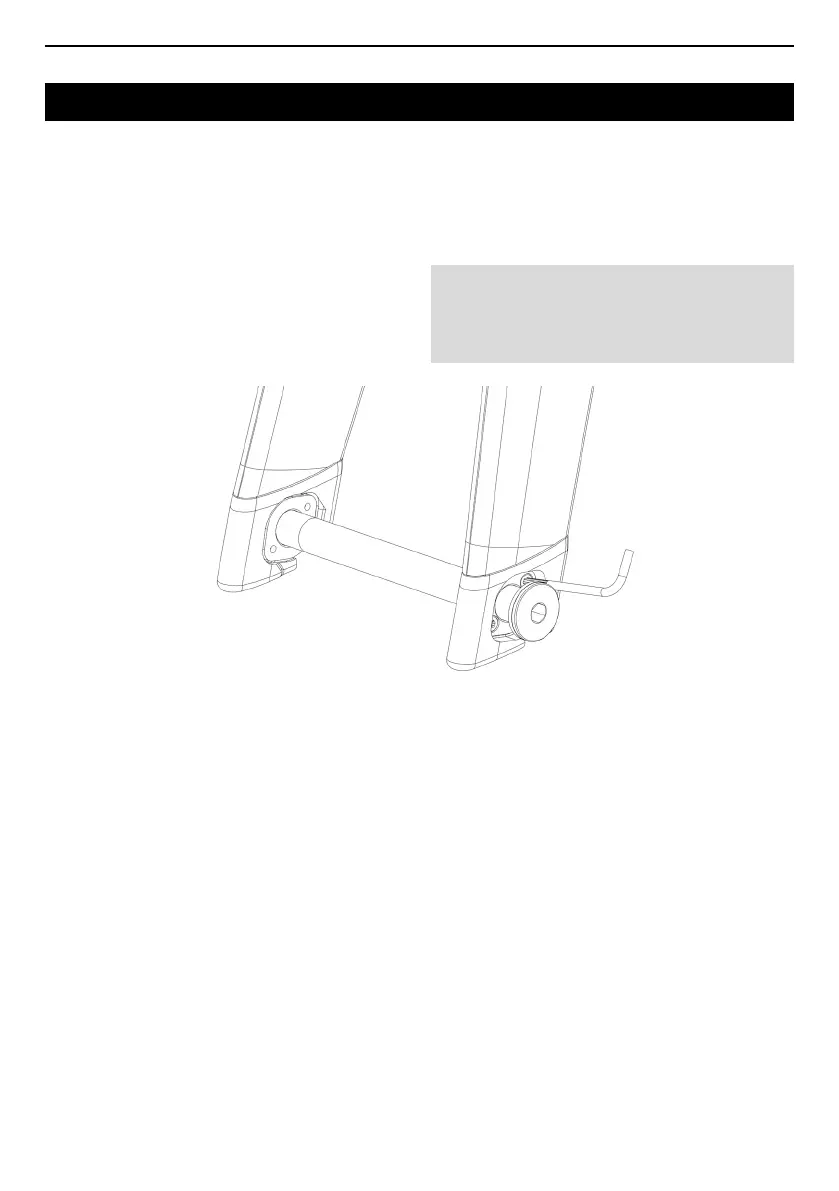

6 I Grease the thru axle thread. Install the wheel
and tighten the axle (H6 Allen wrench) to a torque
of 10Nm.
WARNING : Ensure the screw heads do not
protrude beyond the counterbore, or the axle will
rest on the screw heads rather than on the at
surface of the washer.
