Overview connectors pc-board DK-ACDRV
connector designation
X1 connector to IGBT
X2 output voltage of secondary rectier
X3 connector to IGBT
X5 connector temperature sensor
X6 interface to pc-board DK-MAPRO

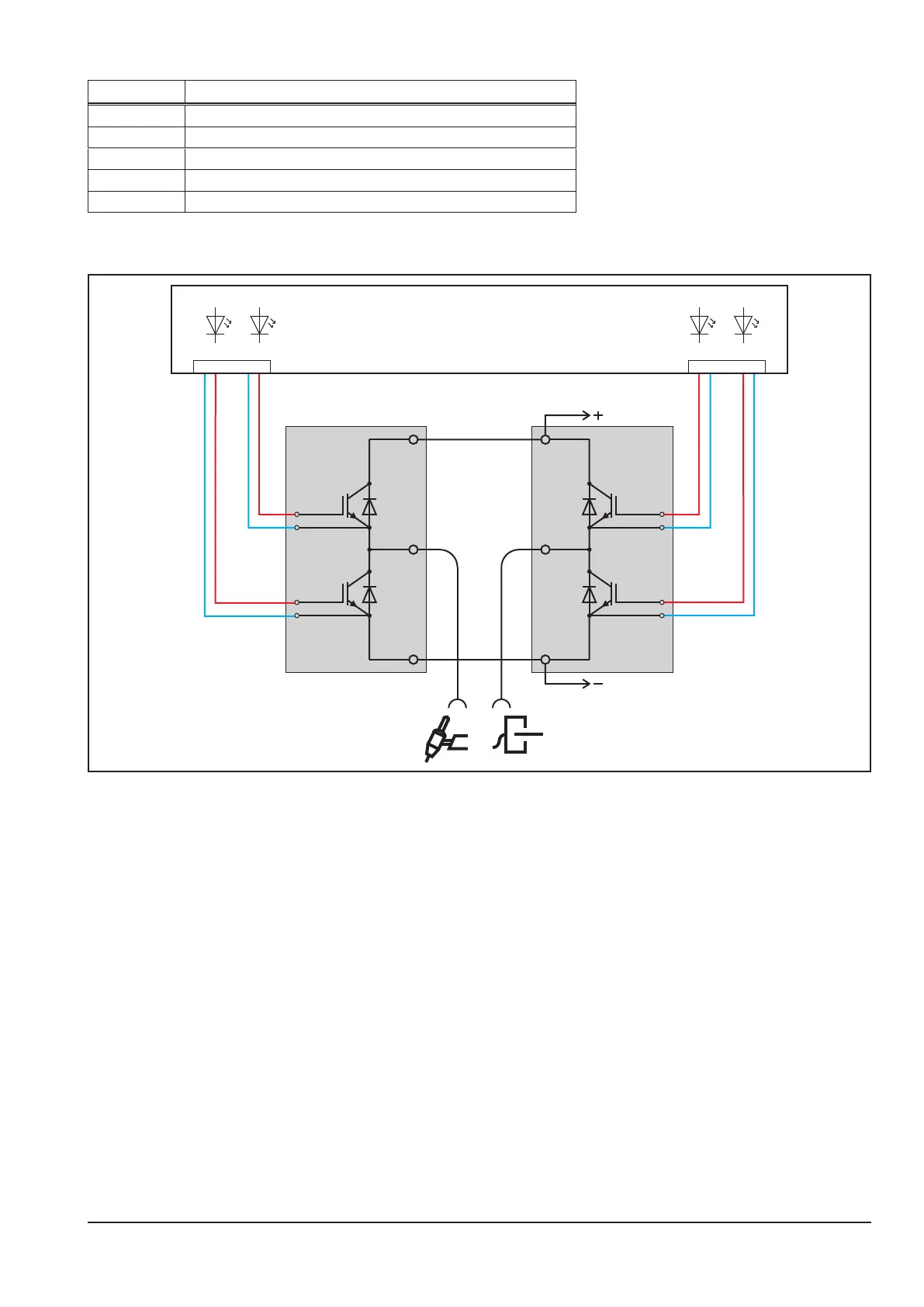

Schematic AC inverter
C1
E2
C2E1
G1
G2
E1
E2
C1
E2
C2E1
G1
G2
E1
E2
ACDRV
X3 X1
2154 1245
LED1LED4LED2LED3
