LORCH V24 - DK-DCI45; DK-ACI45 Front Panel; Board Functions; Front Panel Component Layout

page 11
Pc-board DK-DCI45 / DK-ACI45
The pc-board DK-DCI45 and DK-ACI45 are the front panels with all buttons and optical displays of the V mobile
machines.
Functions
- operating and handling of the machine
- display of operational parameters and error messages

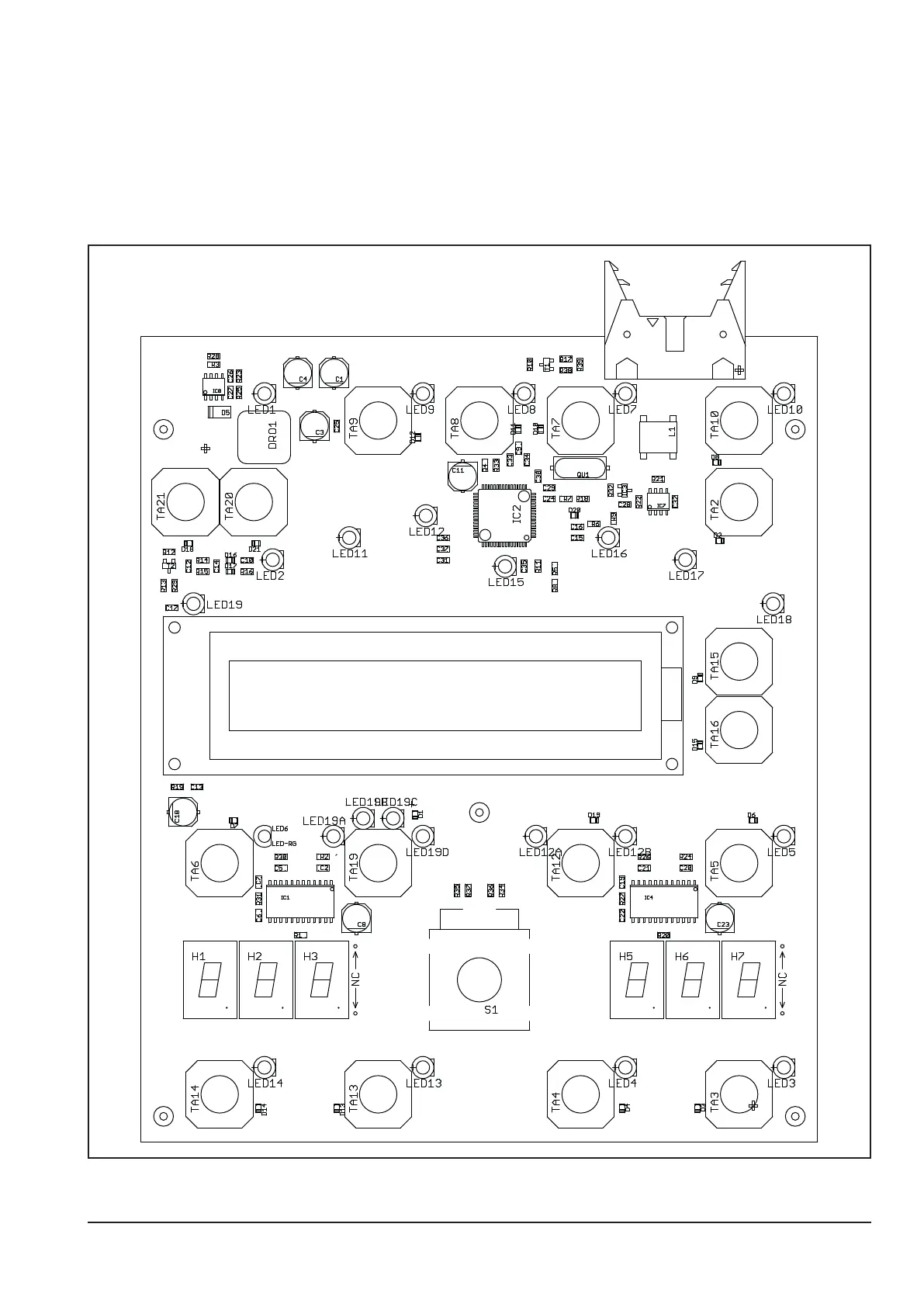

Picture pc-board DK-DCI45 / DK-ACI45
X1
