6.11.3.1 Connecting and Removing BNC Cables
BNC (Bayonet Nut Connector) is a special connector that locks on to the system port and
cannot be accidently removed.
To connect or remove a BNC connector:
• Push the BNC connector firmly into the BNC port and simultaneously twist the connec-
tor clockwise to tighten.
• To remove a BNC connector from a BNC port, push and simultaneously twist the con-
nector counter-clockwise to loosen the BNC connector.
6.11.4 Extension Cable Options
You can extend the cable run for your camera depending on the cable type used. Addition-
al extension cables sold separately. See table below:
Option Cable Type Max Cable Run Distance
1
Lorex model MCBL-60BNCU
BNC Cable
60ft / 18m
2
‘RG59’ or ‘Coax’ or ‘Coaxial
BNC’ Siamese (Video and
Power)
300ft / 92m
3
‘RG59’ or ‘Coax’ or ‘Coaxial
BNC’ (Video Only)
800ft / 242m
CAUTION
The extension cable must be a single stretch of cable between the DVR and camera. You cannot connect
multiple extension cables to each other.
Note

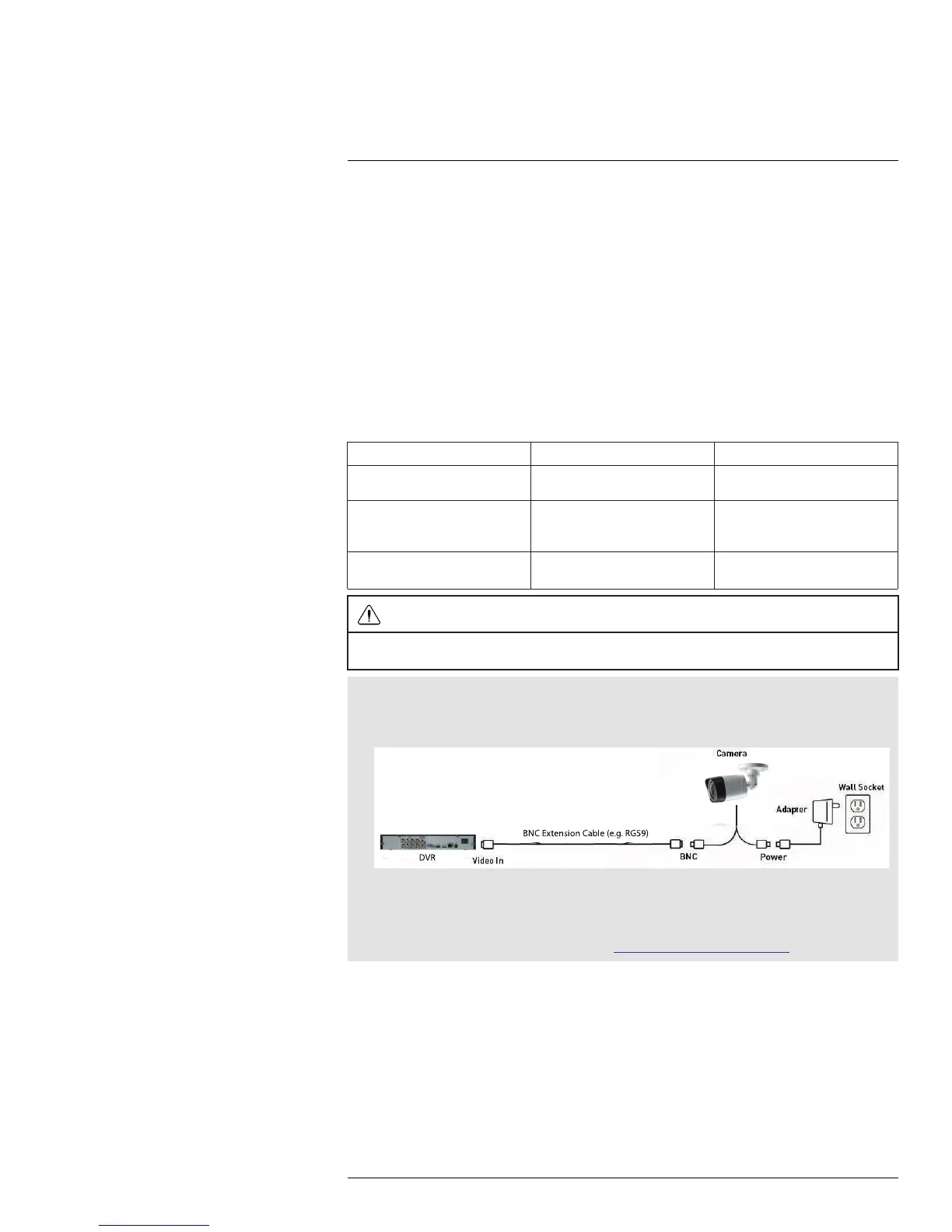

• For cable runs above 300ft / 92m (option 3), you must connect the power adapter directly to the cam-
era, rather than at the end of the extension cable (see diagram below).
BNC Extension Cable (e.g. RG59)
• Indicators that your cable run may be too long:
• Video is permanently black & white (even during day time).
• Video is unclear, soft, or distorted.
• For more information on extension cables, visit www.lorextechnology.com/support.
