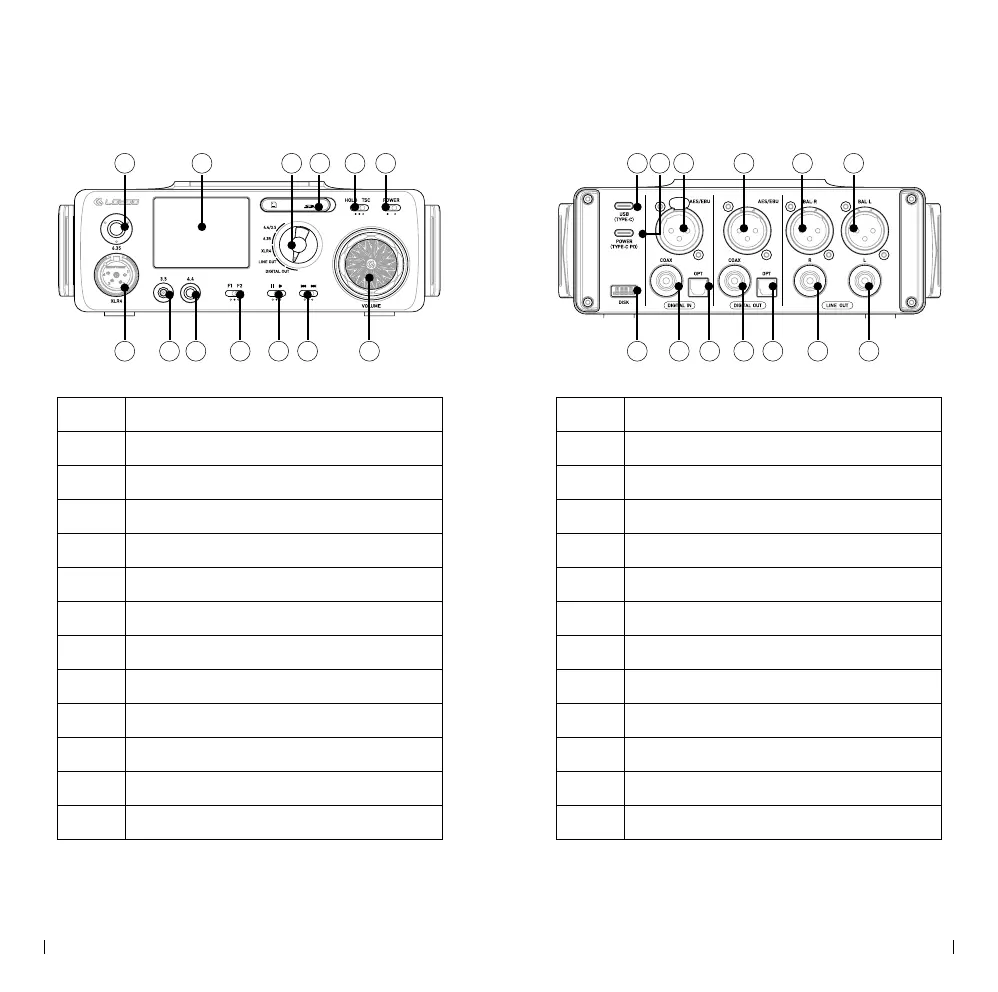

01 USB C port (for USB DAC/Storage)
02 USB C port (for PD recharge)
03 USB A port（for external USB storage）
04 AES/EBU balanced Digital input
05 Coaxial digital input
06 Optical digital input
07 AES/EBU balanced Digital output
08 Coaxial digital output
09 Optical digital output
10 Balanced Line output R
11 Balanced Line output L
12 Unbalanced Line output R
13 Unbalanced Line output L
01 6.35mm unbalanced Headphone output
02 4-pin XLR balanced Headphone output
03 3.5mm unbalanced Headphone output
04 4.4mm balanced Headphone output
05 Screen
06 Output select knob
07 SD card slot
08 Hold / Top screen control
09 Power
10 F1/F2 user-de󽗉nable keys
11 Play / Pause
12 Previous / Next
13 Volume knob
01 02
03 05 0806 09 12 13
04 07 10 1101
02 03 04 10 11 12 13
05 06 07 08 09
