Page 23
Lotus Service Notes Section MR
MR.6 - COMPONENT LOCATION & FUSE RATINGS

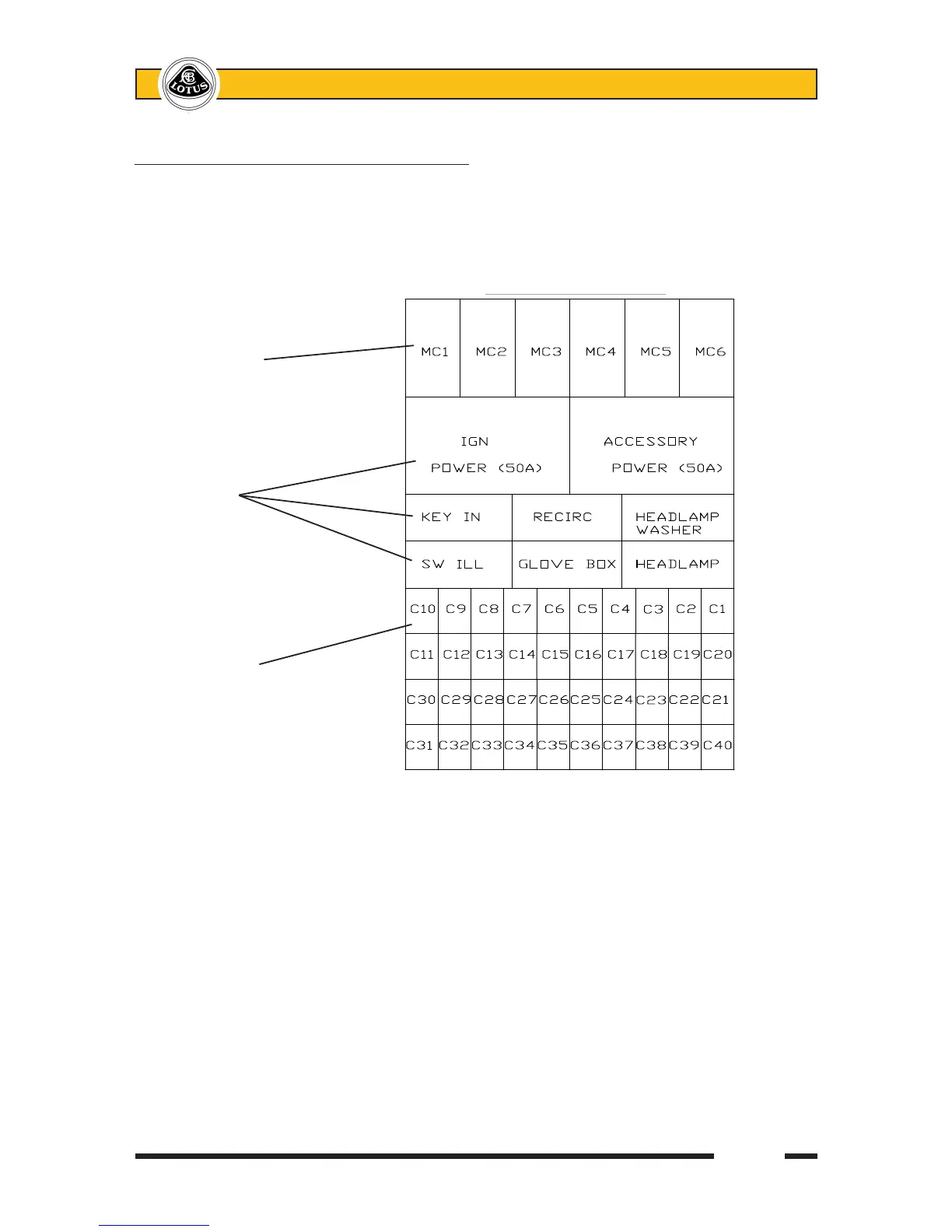

Main Fusebox
The main fuse and relay boxes are located at the front of the passenger footwell, protected by a removable
panel secured by a quarter turn fastener at each top corner, and a location channel on the floor. Forty slots
are provided for mini fuses which are numbered, and coloured according to their amperage rating, and may be
pulled out from their slots using the fuse extractor tool clipped to the fusebox. Six maxi fuses protecting major
circuits are also provided, along with six single contact change over micro relays and two 50A power relays.
Slot Rate Circuit
C1 10A Horn
C2 5A Battery services
C3 5A Alarm B+
C4 20A Rad fan relay 1
C5 20A Rad fan relay 3
C6 10A Radio B+
C7 5A Key-in relay
C8 2A Ignition switch
C9 15A Driver’swindow
C10 15A Pass. window
C11 7.5A Hazard & Turn
C12 3A Interior lighting
C13 20A Int. control mod.
C14 -
C15 5A LH sidelamps
C16 5A RH sidelamps
C17 15A LH headlamp
C18 15A RH headlamp
C19 15A Main beam
C20 3A Rear foglamp
Slot Rate Circuit
C21 3A Ign. services
C22 5A ABS
C23 3A Homelink
C24 3A Brake lamps
C25 15A HL powerwash
C26 5A Alarm ignition
C27 -
C28 5A HVAC ignition
C29 5A Washer jets
C30 5A SRS unit
C31 3A Heated mirrors
C32 5A Washer pump
C33 5A Mirror/window sw.
C34 20A Wiper motor
C35 -
C36 20A Interior fan
C37 10A Cabin pwr. socket
C38 -
C39 -
C40 -
Slot Rate Circuit
MC1 40A Battery positive
MC2 40A B+, ignition
MC3 40A Accessories
MC4 40A ABS B+
MC5 25A ABS B+
MC6 25A HRS
Maxi fuses
Relays
Mini fuses
