To attach both forward and scout transducers on the motor, prepare a transducer for
each view by following the instructions in the “Motor mounting” section of this manual.
Then use a single hose clamp to attach both assemblies to the motor. Align the mounting
brackets to the motor just as you would in a single-view installation. Once attached, orient
the forward transducer to forward view.

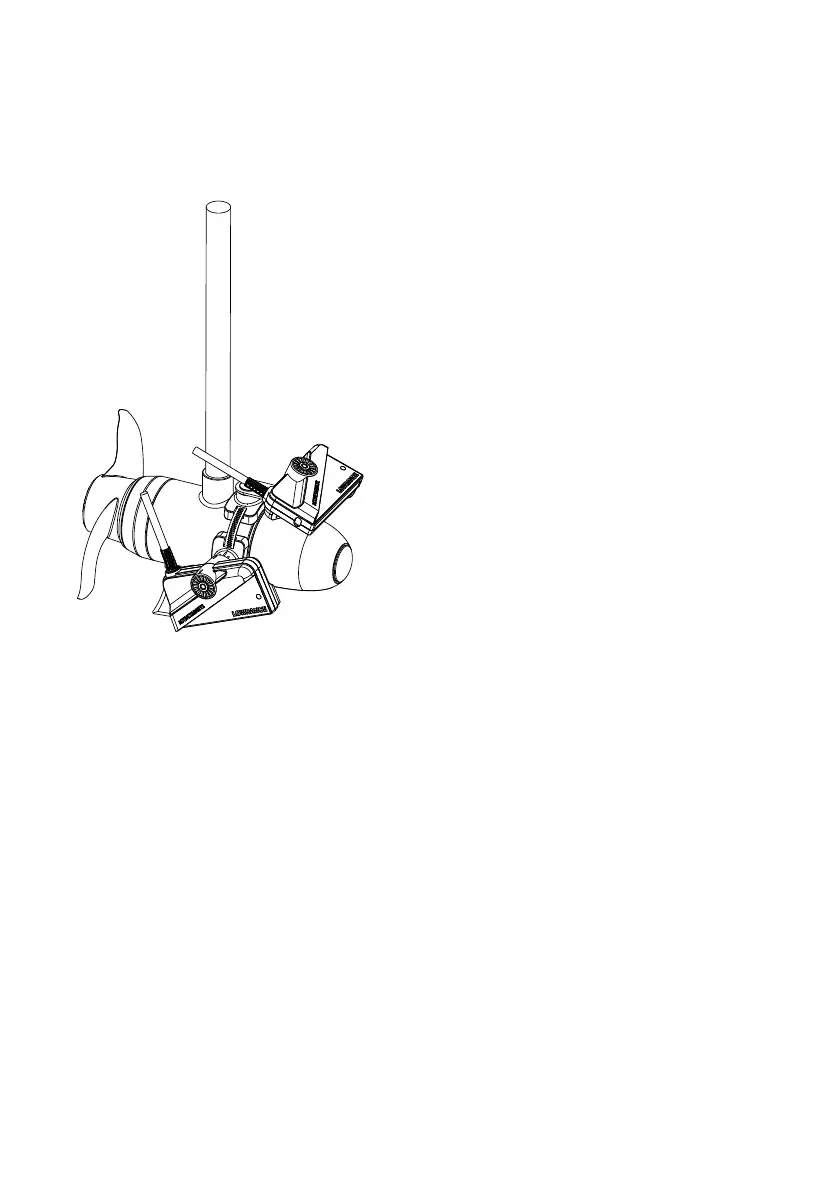

Forward and scout on motor
