Motor mounting

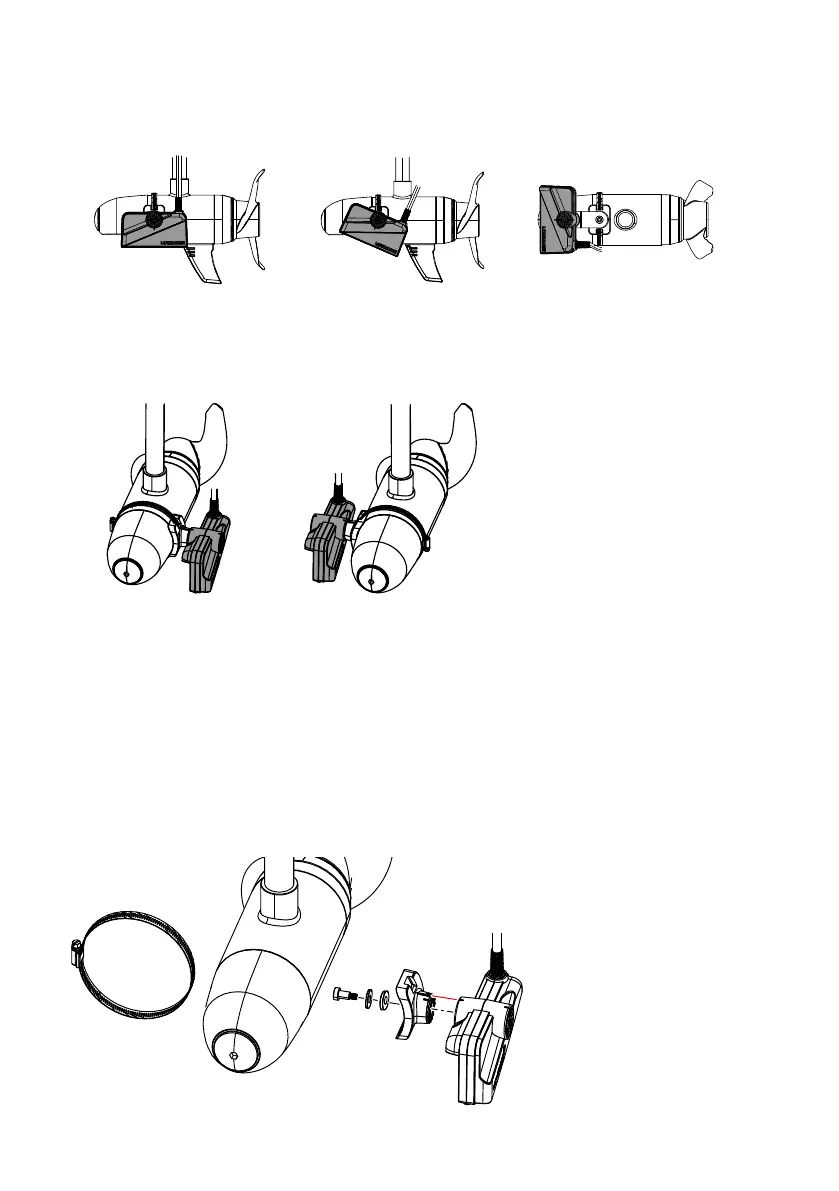

A transducer mounted to the trolling motor can be positioned for all three views:
Down Forward Scout
Down and forward views can be achieved on the port or starboard side of the motor:
Port Starboard
Down or forward view
Use the shoulder bolt, M8 metal washer then rubber washer to attach the down/forward
mounting bracket to the transducer.
Unscrew the hose clamp, wrap it around the motor and through the mounting bracket
slots. Re-screw the hose clamp to secure the transducer to the motor. Tighten just
enough to prevent the transducer from moving during normal use.
