180° view
180° view (composite forward and back) is achieved by installing:
• both the forward and back transducers on the shaft
• the forward transducer on the shaft and back transducer on the motor.
To achieve the 180° view with two transducers on the shaft, attach one shaft mount
clamp with transducer in forward (starboard) view and the other in forward (port) view.
Then rotate one of the clamps 180° on the shaft so both transducers are on the same
side of the motor.
⚠ WARNING: Ensure the backwards-facing transducer is high enough on the shaft
to avoid interference with the trolling motor propeller.
To achieve the 180° view with one transducer on the shaft and one the motor, attach
a shaft mount clamp with transducer in forward view and a motor mount clamp with
transducer in back view.
¼ Note: The down/forward motor mount bracket has three lines on it. The two shorter
lines can be forward or back, depending on which side of the transducer is assembled
to the bracket and which side of the motor its installed on (port or starboard).

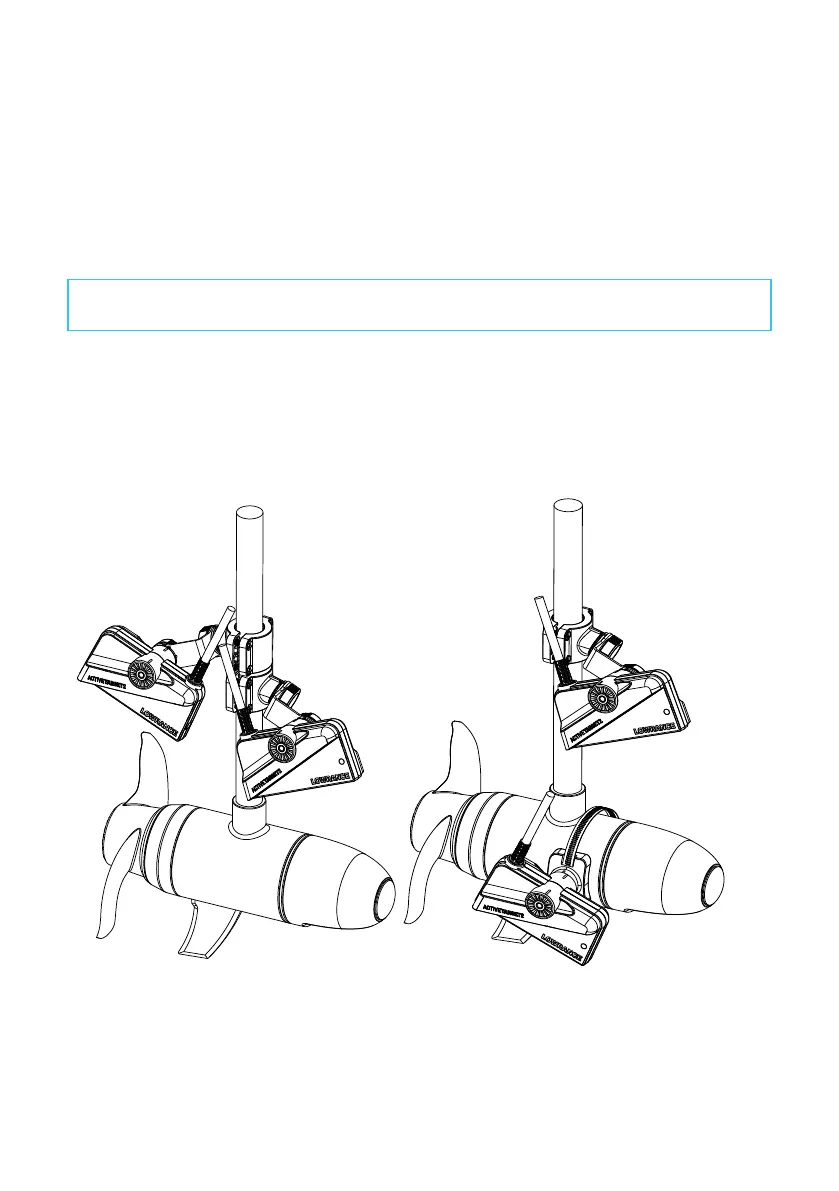

Forward and back on shaft Forward on shaft and back on motor
