9
⚠ WARNING: Tighten the screws by hand and not electric drill. Tighten them just
enough to prevent movement under normal use. Do not use any type of thread-
locking compound on the cap screws or nuts as it may degrade the quality of the
bracket and cause it to break.

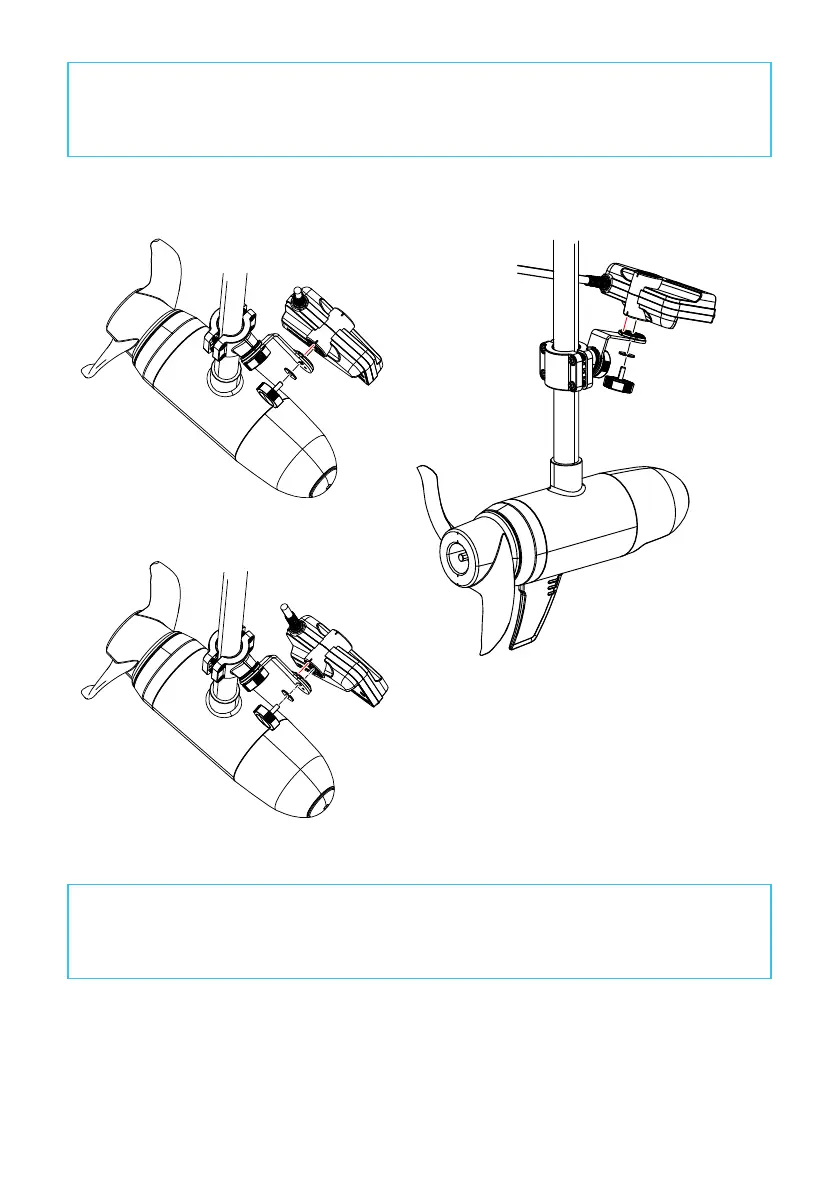

Use the remaining arm knob and washer to attach the transducer to the bracket arm.
Align the lines on the arm with the lines on the transducer.
Down
Scout
Forward
⚠ WARNING: When installing your transducer, leave enough slack in the cable so
you can adjust the transducer to all possible views (down, forward or scout). Also,
leave enough slack in the cable loop so the motor shaft can spin all the way around
without damaging the cable.
