Sonar operation | HOOK X series
Sonar operation | HOOK X series
Transducer

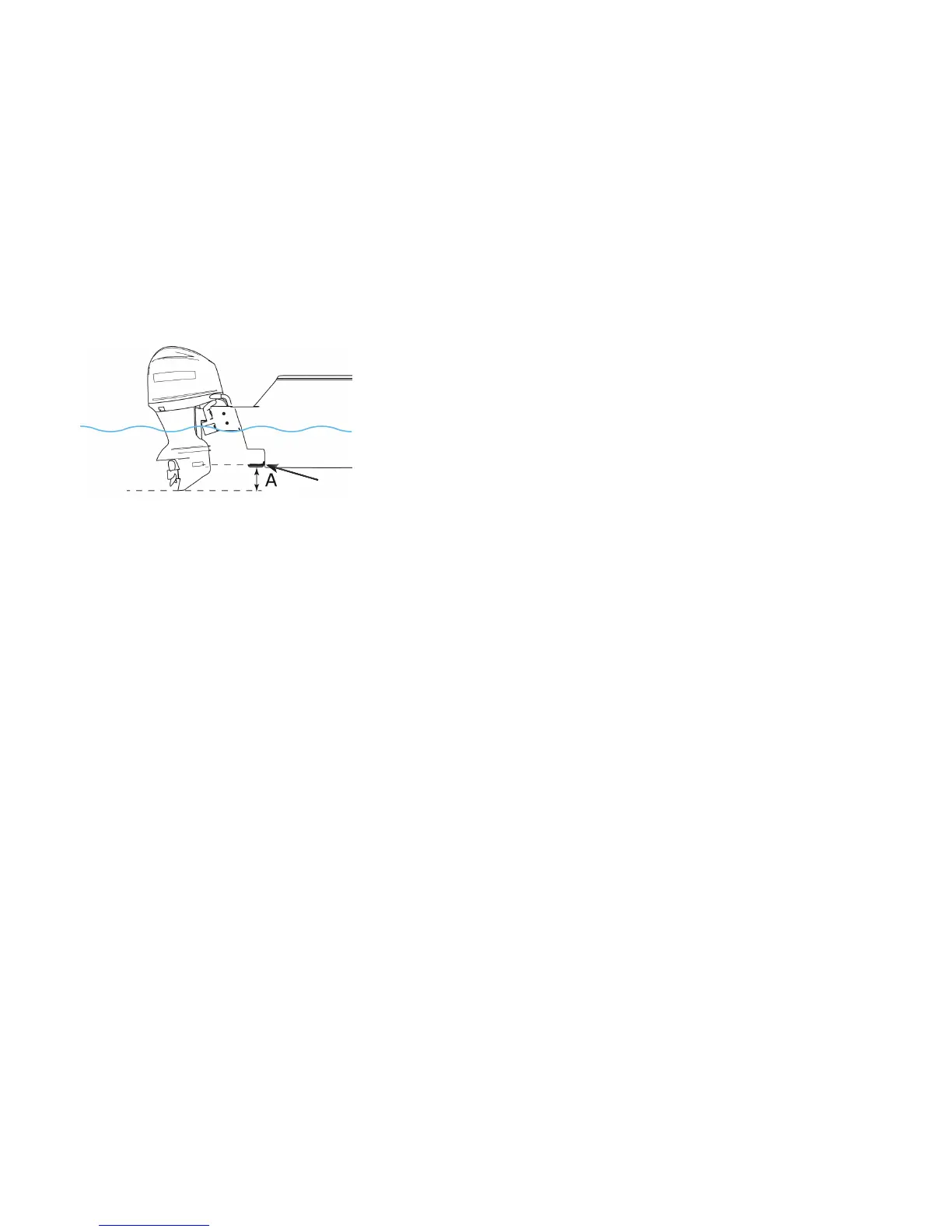

A: Keel offset (e.g. -1 foot)
If, for example, the distance is 1 foot, it will be
input as (minus) –1 foot.
Water speed calibration
Calibrates a paddlewheel speed sensor.
Temperature calibration
Calibrates data from the transducer temperature
sensor with data from a known temperature source
to ensure the accuracy of temperature information.
Reset water distance
Reset Water Distance to zero.
Transducer type
Selects the type of transducer model attached to
your unit.

Lowrance HOOK-4x Specifications

General

Display Size	4.3 inches
Resolution	480 x 272 pixels
Frequency	83/200 kHz
GPS	No
Waterproof Rating	IPX7
Backlight	LED
Operating Voltage	12V DC
Transducer Included	Yes
Power Output	200W RMS
Display Type	Color TFT
Operating Temperature	-15°C to +55°C
Mounting Type	Bracket mount
