Lowrance HOOK-4x User Manual

28
29
DownScan operation | HOOK X series
DownScan operation | HOOK X series

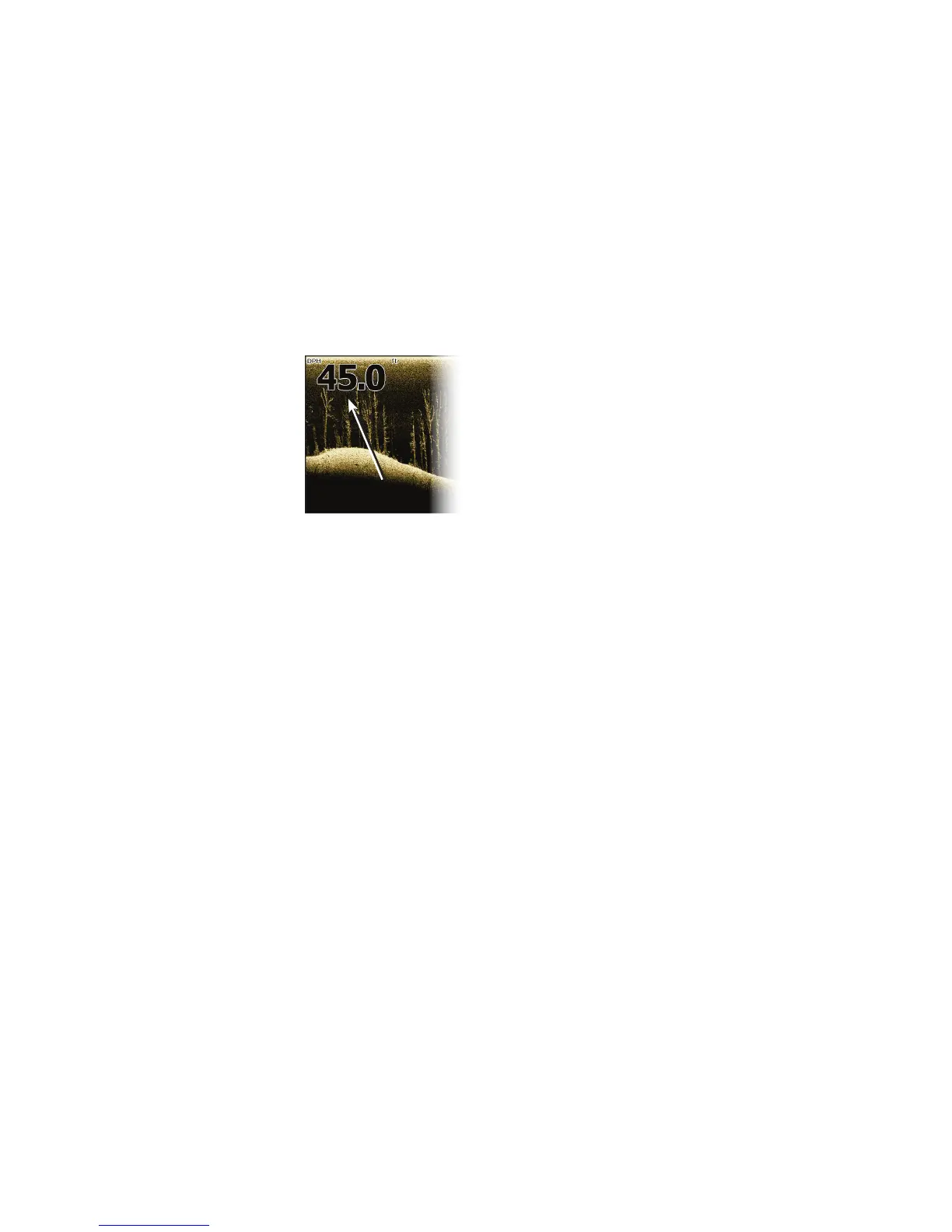

Overlay data
Allows you to select data to
be displayed on top of the
DownScan page.
Overlay data setup is covered
in the Pages section.
Settings
Accesses the Settings menu. Refer to “Sonar
settings” on page 22.
Overlay data

Lowrance HOOK-4x Specifications

General

Display Size	4.3 inches
Resolution	480 x 272 pixels
Frequency	83/200 kHz
GPS	No
Waterproof Rating	IPX7
Backlight	LED
Operating Voltage	12V DC
Transducer Included	Yes
Power Output	200W RMS
Display Type	Color TFT
Operating Temperature	-15°C to +55°C
Mounting Type	Bracket mount
