LS tractor LL1101 - LOADER SPECIFICATION

LOADER SPECIFICATION
* Specifications shown are based on ASAE Standards.
* S
p
ecifications and desi
g
n are sub
j
ect to chan
g
e without
p
rior notice.

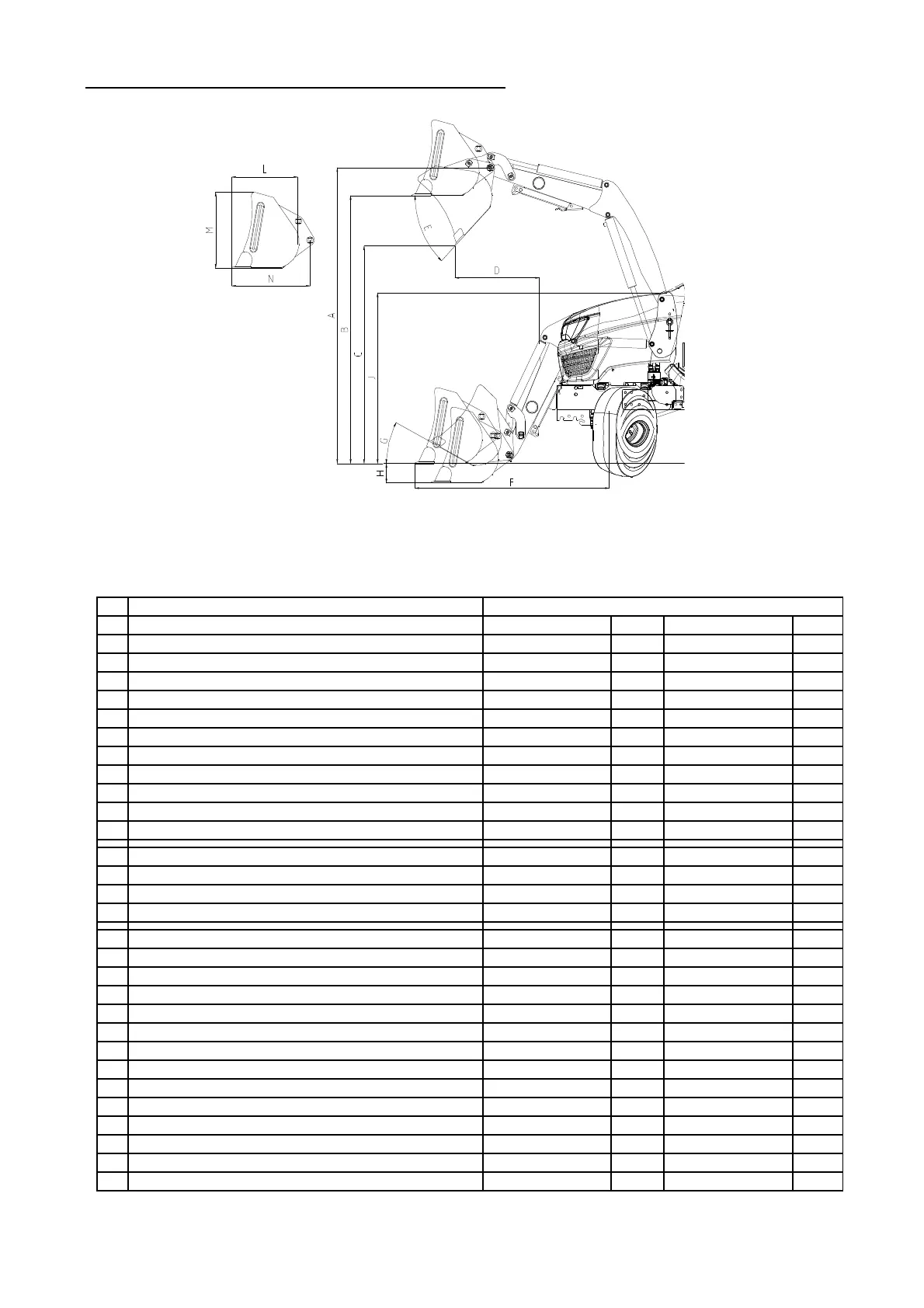

Loader Ratio
A. Maximum lift height to pivot pin 1,830 mm 72.0 "
B. Maximum lift height under level bucket 1,655 mm 65.2 "
C. Clearance with bucket dumped 1,240 mm 48.8 "
D. Reach at maximum lift height 640 mm 25.2 "
E. Maximum dump angle 46 ° 46 °
F. Reach with bucket on ground 1,401 mm 55.2 "
G. Maximum rollback angle 28 ° 28 °
H. Digging depth 122 mm 4.8 "
J. Overall height in carry position 1,055 mm 41.5 "
L. Bucket depth 497 mm 19.6 "
M. Bucket height 421 mm 16.6 "
N. Bucket length 649 mm 25.6 "
Loader Total Weight 215 kg 473 lb
Weight of Boom Assembly 170 ㎏f 374 lb
Weight of Mounting Frame 45 kgf 99 lb
Approx. Weight(Loader w/o Bucket) 140 kg 309 Ib
1. Rated operating load - kg - lb
2. Lift capacity to maximum height-at pivot pin 439 kg 966 lb
3. Breakout force-at pivot pin 927 ㎏f 2,039 lb
4. Bucket rollback force at ground line 510 kgf 1,122 lb
5. Bucket width 1,270 mm 50.0 "
6. Bucket capacity 0.21 ㎥ 7.4 cu.ft
7. Boom cylinder Ø30xØ45x340ST mm 1.2x1.8x13.4ST "
8. Bucket cylinder Ø25xØ40x277ST mm 1.0x1.6x10.9ST "
9. Boom raising time 2.6 sec 2.6 sec
10. Boom lowering time 1.4 sec 1.4 sec
11. Bucket rollback time 1.0 sec 1.0 sec
12. Bucket dumping time 1.7 sec 1.7 sec
13. Maximum pressure (Governing loader operation) 130 bar 1885.0 psi
14. Rated flow 25 ℓ/min. 6.6 gpm
* The above specifications are applied to standard front tire 18x8.5-10 4PR 482, standard rear tire 26x12.00-12 4PR 482
LL1101
Non-Self level type
0.98:1
Loader Model :
Bucket Leveling :
Tractor Model :
MT122, MT125
- 9 -
