SERVICE MANUAL(CYLINDERS)

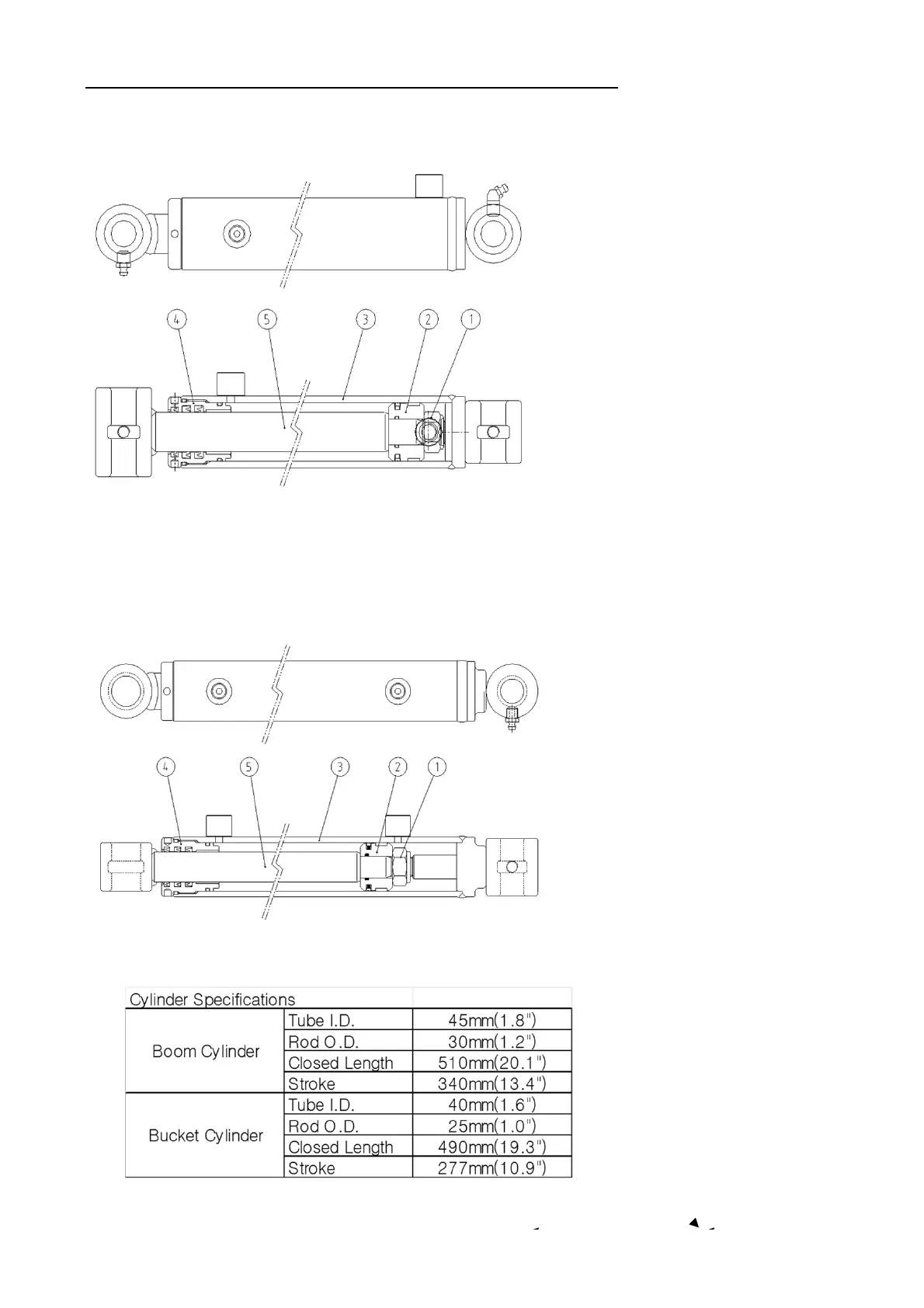

BOOM CYLINDER
① Nut
② Piston
③ Cylinder Tube
④ Cylinder Head
⑤ Piston Rod
BUCKET CYLINDER
① Nut
② Piston
③ Cylinder Tube
④ Cylinder Head
⑤ Piston Rod
Boom cylinder consists of a
nut(①), piston(②), cylinder
tube(③), cylinder head(④),
piston rod(⑤) and other parts as
shown in the figure above. They
are single-rod double acting
cylinder in which the
reciprocating motion of the piston
is controlled by hydraulic force
applied to both of its ends.
Boom cylinder consists of a
nut(①), piston(②), cylinder
tube(③), cylinder head(④),
piston rod(⑤) and other parts as
shown in the figure above. They
are single-rod double acting
cylinder in which the
reciprocating motion of the piston
is controlled by hydraulic force
applied to both of its ends.
- 46 -
