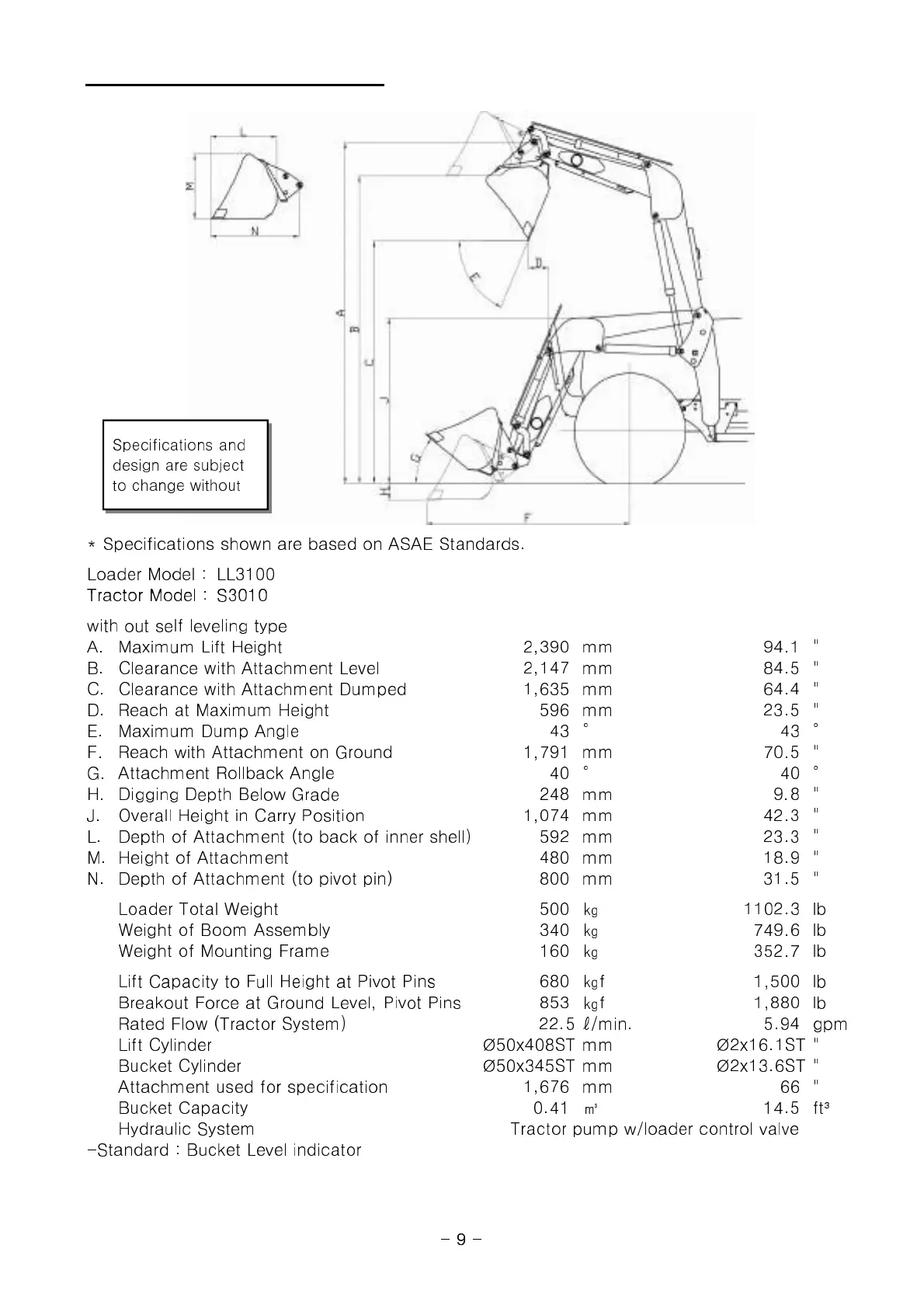

LOADER SPECIFICATION
* Specifications shown are based on ASAE Standards.
Loader Model : LL3100
Specifications and
design are subject
to change without
- 9 -
with out self leveling type
A. Maximum Lift Height 2,390 mm 94.1 "
B. Clearance with Attachment Level 2,147 mm 84.5 "
C. Clearance with Attachment Dumped 1,635 mm 64.4 "
D. Reach at Maximum Height 596 mm 23.5 "
E. Maximum Dump Angle 43 ° 43 °
F. Reach with Attachment on Ground 1,791 mm 70.5 "
G. Attachment Rollback Angle 40 ° 40 °
H. Digging Depth Below Grade 248 mm 9.8 "
J. Overall Height in Carry Position 1,074 mm 42.3 "
L. Depth of Attachment (to back of inner shell) 592 mm 23.3 "
M. Height of Attachment 480 mm 18.9 "
N. Depth of Attachment (to pivot pin) 800 mm 31.5 "
Loader Total Weight 500 ㎏ 1102.3 lb
Weight of Boom Assembly 340 ㎏ 749.6 lb
Weight of Mounting Frame 160 ㎏ 352.7 lb
Lift Capacity to Full Height at Pivot Pins 680 ㎏f 1,500 lb
Breakout Force at Ground Level, Pivot Pins 853 ㎏f 1,880 lb
Rated Flow (Tractor System) 22.5 ℓ/min. 5.94 gpm
Lift Cylinder Ø50x408ST mm Ø2x16.1ST "
Bucket Cylinder Ø50x345ST mm Ø2x13.6ST "
Attachment used for specification 1,676 mm 66 "
Bucket Capacity 0.41 ㎥ 14.5 ft³
Hydraulic System Tractor pump w/loader control valve
-Standard : Bucket Level indicator
- 9 -
