LS tractor LL3100 User Manual

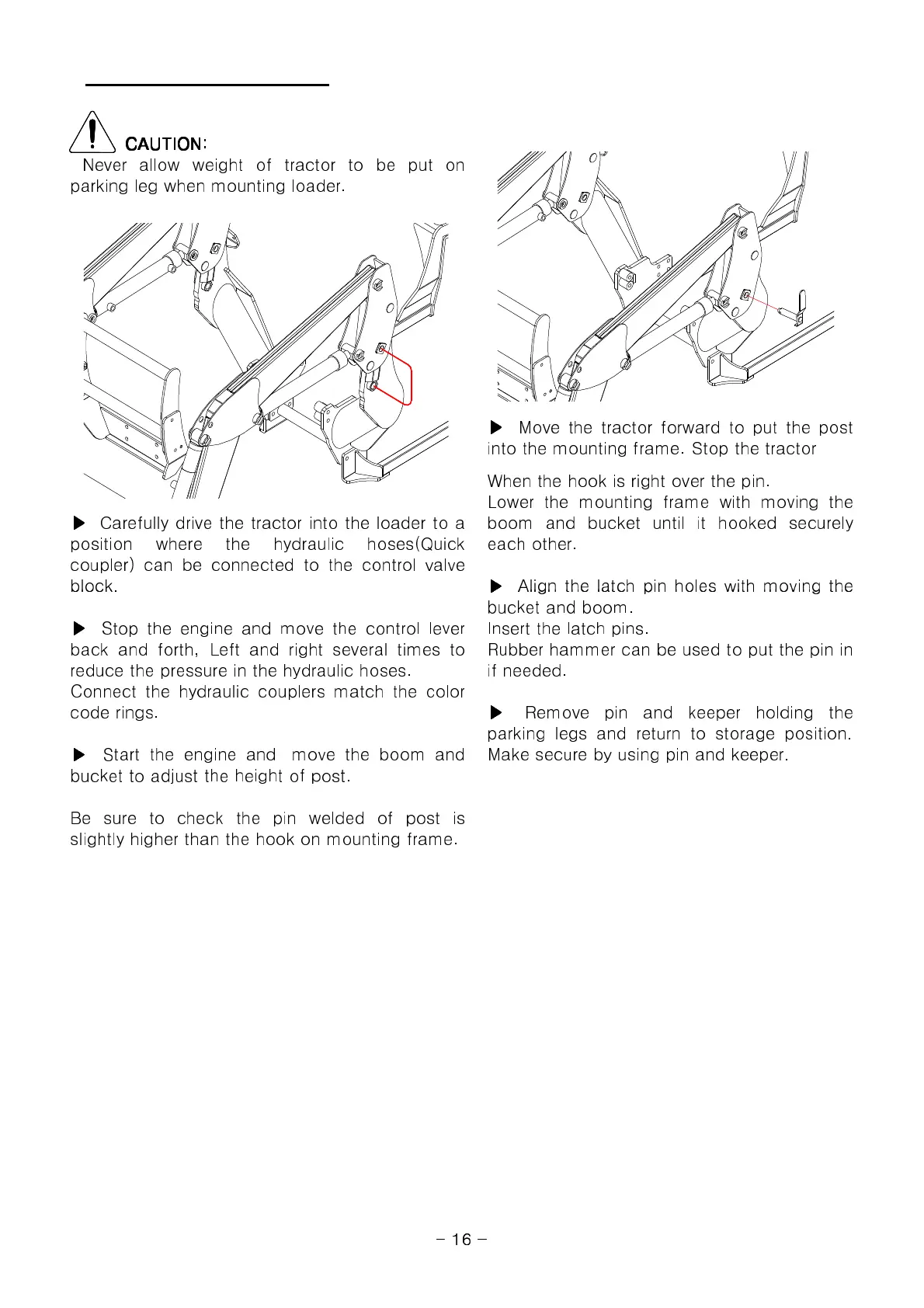

LOADER MOUNTING
CAUTION:
CAUTION:CAUTION:
CAUTION:
When the hook is right over the pin.
▶
▶▶
▶
Align
the
latch
pin
holes
with
moving
the
Never allow weight of tractor to be put on
parking leg when mounting loader.
▶
▶▶
▶ Carefully drive the tractor into the loader to a
position where the hydraulic hoses(Quick
coupler) can be connected to the control valve
block.
▶
▶▶
▶ Move the tractor forward to put the post
into the mounting frame. Stop the tractor
Lower the mounting frame with moving the
boom and bucket until it hooked securely
each other.
- 16 -
Insert the latch pins.
▶
▶▶
▶
Align
the
latch
pin
holes
with
moving
the
bucket and boom.
Rubber hammer can be used to put the pin in
if needed.
▶
▶▶
▶ Remove pin and keeper holding the
parking legs and return to storage position.
Make secure by using pin and keeper. ▶
▶▶
▶ Start the engine and move the boom and
bucket to adjust the height of post.
block.
Be sure to check the pin welded of post is
slightly higher than the hook on mounting frame.
▶
▶▶
▶ Stop the engine and move the control lever
back and forth, Left and right several times to
reduce the pressure in the hydraulic hoses.
Connect the hydraulic couplers match the color
code rings.
- 16 -
