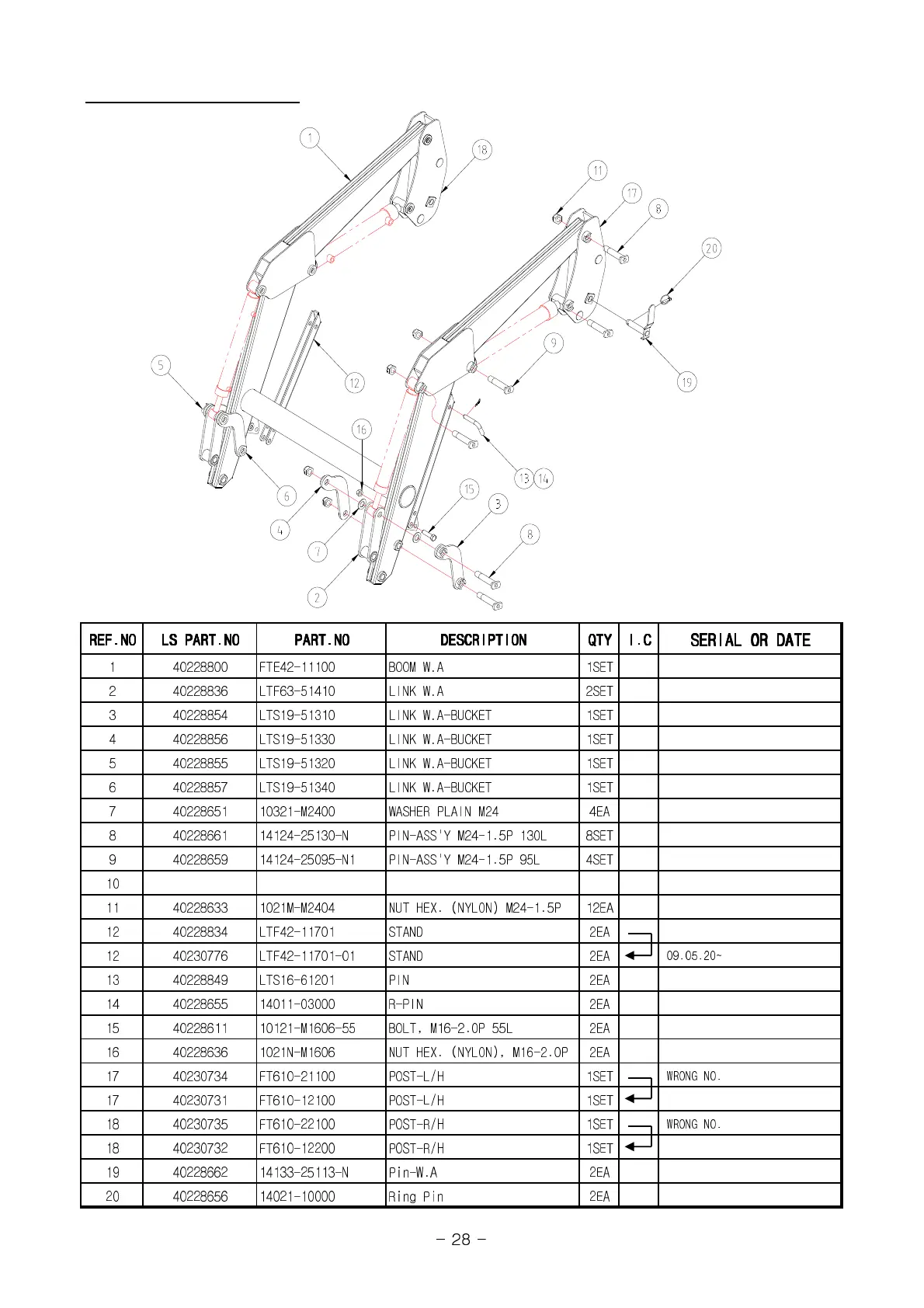

BOOM ASSEMBLY

REF.NO

REF.NOREF.NO

REF.NO LS PART.NO

LS PART.NOLS PART.NO

LS PART.NO PART.NO

PART.NOPART.NO

PART.NO DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION QTY

QTYQTY

QTY I.C

I.CI.C

I.C

SERIAL OR DATE

SERIAL OR DATESERIAL OR DATE

SERIAL OR DATE

1 40228800 FTE42-11100 BOOM W.A 1SET

2 40228836 LTF63-51410 LINK W.A 2SET

3 40228854 LTS19-51310 LINK W.A-BUCKET 1SET

4 40228856 LTS19-51330 LINK W.A-BUCKET 1SET

5 40228855 LTS19-51320 LINK W.A-BUCKET 1SET

6 40228857 LTS19-51340 LINK W.A-BUCKET 1SET

7 40228651 10321-M2400 WASHER PLAIN M24 4EA

8 40228661 14124-25130-N PIN-ASS'Y M24-1.5P 130L 8SET

9 40228659 14124-25095-N1 PIN-ASS'Y M24-1.5P 95L 4SET

11 40228633 1021M-M2404 NUT HEX. (NYLON) M24-1.5P 12EA

12 40228834 LTF42-11701 STAND 2EA

12 40230776 LTF42-11701-01 STAND 2EA

09.05.20~

13 40228849 LTS16-61201 PIN 2EA

14 40228655 14011-03000 R-PIN 2EA

15 40228611 10121-M1606-55 BOLT, M16-2.0P 55L 2EA

16 40228636 1021N-M1606 NUT HEX. (NYLON), M16-2.0P 2EA

17 40230734 FT610-21100 POST-L/H 1SET

WRONG NO.

17 40230731 FT610-12100 POST-L/H 1SET

18 40230735 FT610-22100 POST-R/H 1SET

WRONG NO.

18 40230732 FT610-12200 POST-R/H 1SET

19 40228662 14133-25113-N Pin-W.A 2EA

20 40228656 14021-10000 Ring Pin 2EA
