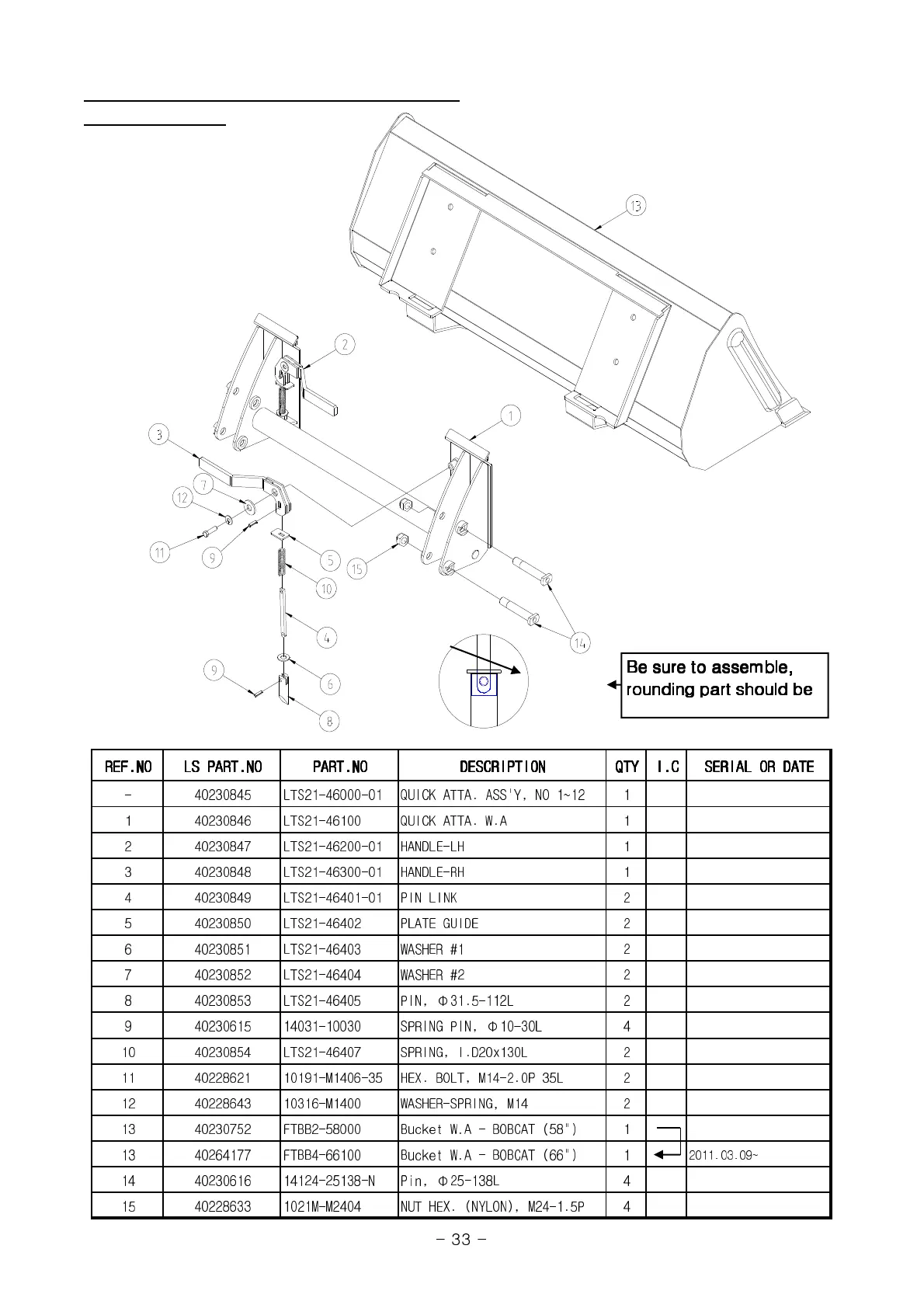

QUICK ATTACHMENT / BUCKET

- BOBCAT TYPE

REF.NO

REF.NOREF.NO

REF.NO LS PART.NO

LS PART.NOLS PART.NO

LS PART.NO PART.NO

PART.NOPART.NO

PART.NO DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION QTY

QTYQTY

QTY I.C

I.CI.C

I.C SERIAL OR DATE

SERIAL OR DATESERIAL OR DATE

SERIAL OR DATE

- 40230845 LTS21-46000-01 QUICK ATTA. ASS'Y, NO 1~12 1

1 40230846 LTS21-46100 QUICK ATTA. W.A 1

2 40230847 LTS21-46200-01 HANDLE-LH 1

3 40230848 LTS21-46300-01 HANDLE-RH 1

4 40230849 LTS21-46401-01 PIN LINK 2

5 40230850 LTS21-46402 PLATE GUIDE 2

6 40230851 LTS21-46403 WASHER #1 2

7 40230852 LTS21-46404 WASHER #2 2

8 40230853 LTS21-46405 PIN, Φ31.5-112L 2

9 40230615 14031-10030 SPRING PIN, Φ10-30L 4

10 40230854 LTS21-46407 SPRING, I.D20x130L 2

11 40228621 10191-M1406-35 HEX. BOLT, M14-2.0P 35L 2

12 40228643 10316-M1400 WASHER-SPRING, M14 2

13 40230752 FTBB2-58000 Bucket W.A - BOBCAT (58") 1

13 40264177 FTBB4-66100 Bucket W.A - BOBCAT (66") 1

2011.03.09~

14 40230616 14124-25138-N Pin, Φ25-138L 4

15 40228633 1021M-M2404 NUT HEX. (NYLON), M24-1.5P 4

Be sure to assemble,

Be sure to assemble, Be sure to assemble,

Be sure to assemble,

rounding part should be

rounding part should be rounding part should be

rounding part should be
