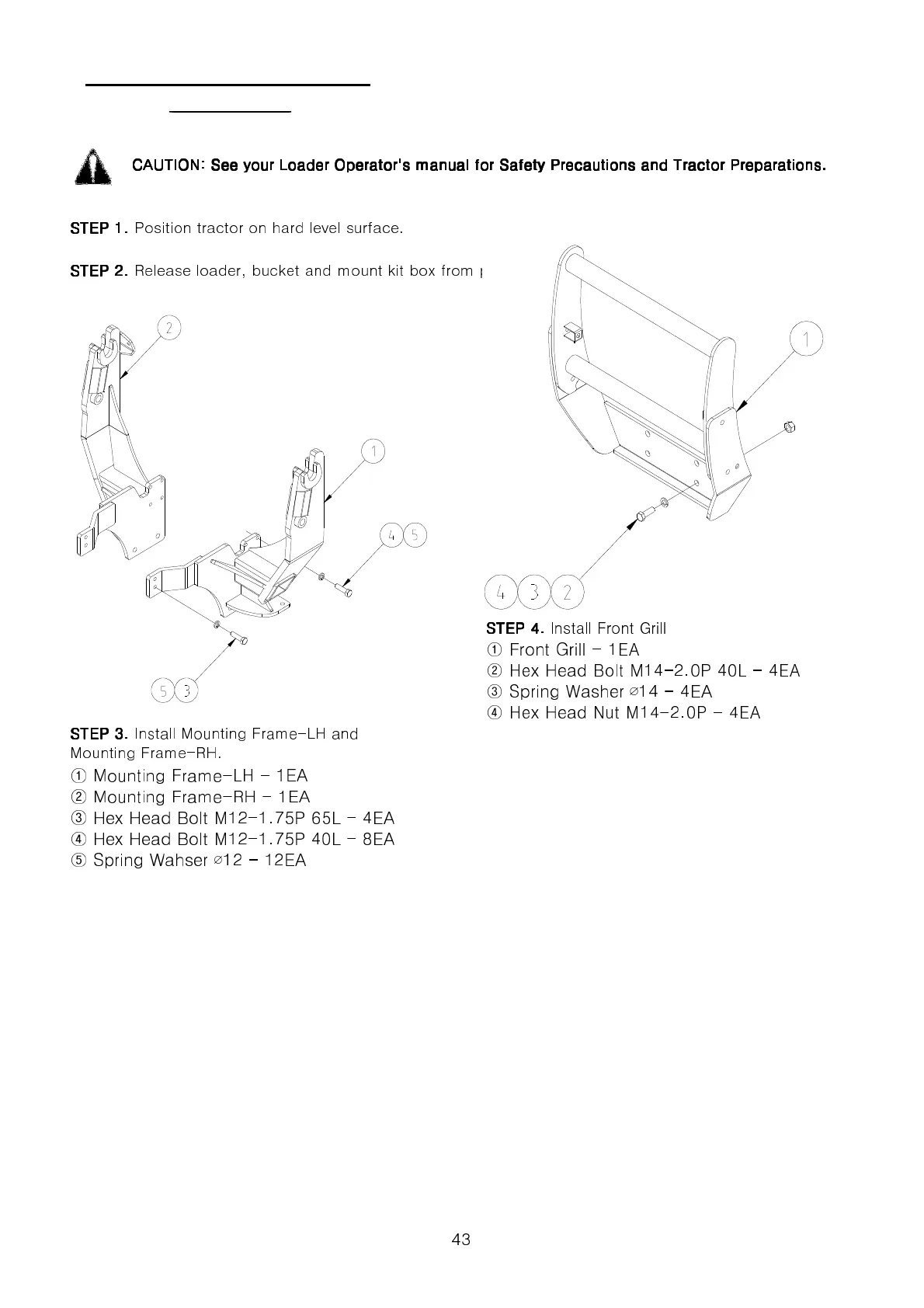

LOADER INSTALLATION
CAUTION: See your Loader Operator's manual for Safety Precautions and Tractor Preparations.
CAUTION: See your Loader Operator's manual for Safety Precautions and Tractor Preparations.CAUTION: See your Loader Operator's manual for Safety Precautions and Tractor Preparations.
CAUTION: See your Loader Operator's manual for Safety Precautions and Tractor Preparations.
STEP 1.
STEP 1.STEP 1.
STEP 1.
Position tractor on hard level surface.
STEP 2.
STEP 2.STEP 2.
STEP 2.
Release loader, bucket and mount kit box from pallet.
STEP 4.
STEP 4.STEP 4.
STEP 4.
Install Front Grill
① Front Grill - 1EA
② Hex Head Bolt M14-2.0P 40L - 4EA
③ Spring Washer
∅
14 - 4EA
④ Hex Head Nut M14-2.0P - 4EA
① Mounting Frame-LH - 1EA
② Mounting Frame-RH - 1EA
③ Hex Head Bolt M12-1.75P 65L - 4EA
④ Hex Head Bolt M12-1.75P 40L - 8EA
⑤ Spring Wahser
∅
12 - 12EA
STEP 3.
STEP 3.STEP 3.
STEP 3.
Install Mounting Frame-LH and
Mounting Frame-RH.
43
