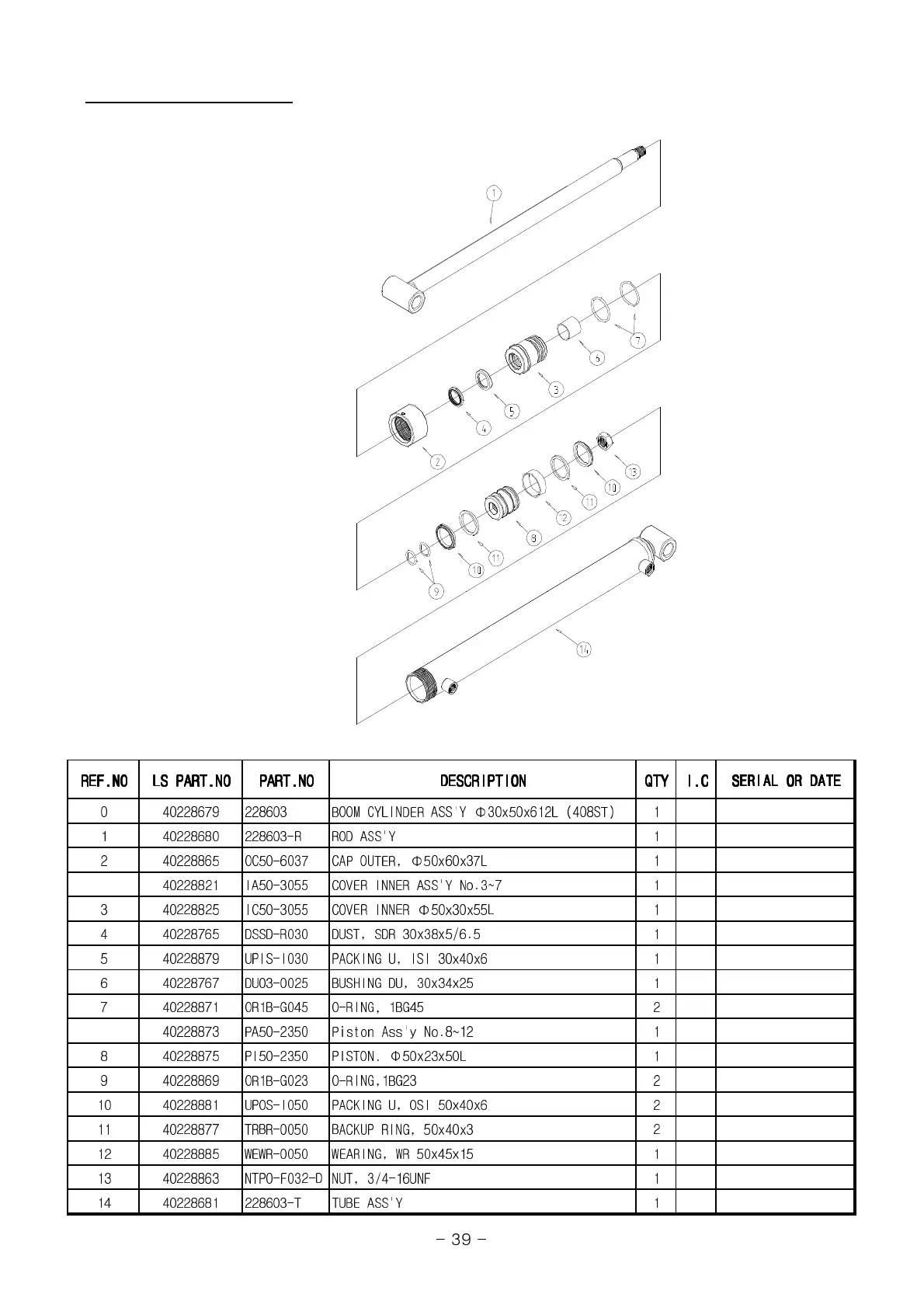

BOOM CYLINDER

REF.NO

REF.NOREF.NO

REF.NO LS PART.NO

LS PART.NOLS PART.NO

LS PART.NO PART.NO

PART.NOPART.NO

PART.NO DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION QTY

QTYQTY

QTY I.C

I.CI.C

I.C

SERIAL OR DATE

SERIAL OR DATESERIAL OR DATE

SERIAL OR DATE

0 40228679 228603 BOOM CYLINDER ASS'Y Φ30x50x612L (408ST) 1

1 40228680 228603-R ROD ASS'Y 1

2 40228865 OC50-6037 CAP OUTER, Φ50x60x37L 1

40228821 IA50-3055 COVER INNER ASS'Y No.3~7 1

3 40228825 IC50-3055 COVER INNER Φ50x30x55L 1

4 40228765 DSSD-R030 DUST, SDR 30x38x5/6.5 1

5 40228879 UPIS-I030 PACKING U, ISI 30x40x6 1

6 40228767 DU03-0025 BUSHING DU, 30x34x25 1

7 40228871 OR1B-G045 O-RING, 1BG45 2

40228873 PA50-2350 Piston Ass'y No.8~12 1

8 40228875 PI50-2350 PISTON. Φ50x23x50L 1

9 40228869 OR1B-G023 O-RING,1BG23 2

10 40228881 UPOS-I050 PACKING U, OSI 50x40x6 2

11 40228877 TRBR-0050 BACKUP RING, 50x40x3 2

12 40228885 WEWR-0050 WEARING, WR 50x45x15 1

13 40228863 NTP0-F032-D NUT, 3/4-16UNF 1

14 40228681 228603-T TUBE ASS'Y 1

- 39 -
