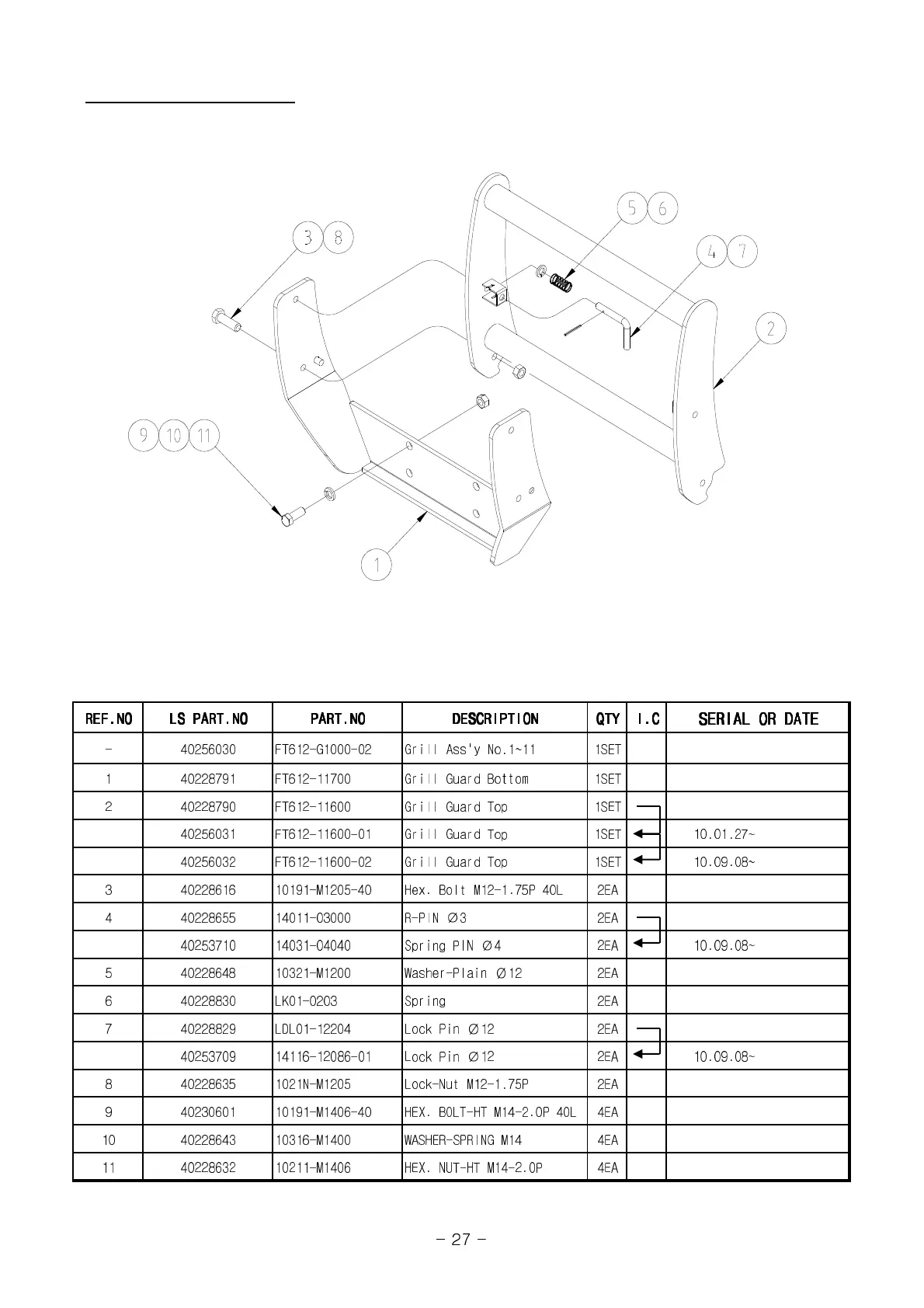

GRILL ASSEMBLY

REF.NO

REF.NOREF.NO

REF.NO LS PART.NO

LS PART.NOLS PART.NO

LS PART.NO PART.NO

PART.NOPART.NO

PART.NO DESCRIPTION

DESCRIPTIONDESCRIPTION

DESCRIPTION QTY

QTYQTY

QTY I.C

I.CI.C

I.C

SERIAL OR DATE

SERIAL OR DATESERIAL OR DATE

SERIAL OR DATE

- 40256030 FT612-G1000-02 Grill Ass'y No.1~11 1SET

1 40228791 FT612-11700 Grill Guard Bottom 1SET

2 40228790 FT612-11600 Grill Guard Top 1SET

40256031 FT612-11600-01 Grill Guard Top 1SET 10.01.27~

40256032 FT612-11600-02 Grill Guard Top 1SET 10.09.08~

3 40228616 10191-M1205-40 Hex. Bolt M12-1.75P 40L 2EA

4 40228655 14011-03000 R-PIN Ø3 2EA

40253710 14031-04040 Spring PIN Ø4 2EA 10.09.08~

5 40228648 10321-M1200 Washer-Plain Ø12 2EA

6 40228830 LK01-0203 Spring 2EA

7 40228829 LDL01-12204 Lock Pin Ø12 2EA

40253709 14116-12086-01 Lock Pin Ø12 2EA 10.09.08~

8 40228635 1021N-M1205 Lock-Nut M12-1.75P 2EA

9 40230601 10191-M1406-40 HEX. BOLT-HT M14-2.0P 40L 4EA

10 40228643 10316-M1400 WASHER-SPRING M14 4EA

11 40228632 10211-M1406 HEX. NUT-HT M14-2.0P 4EA

- 27 -
