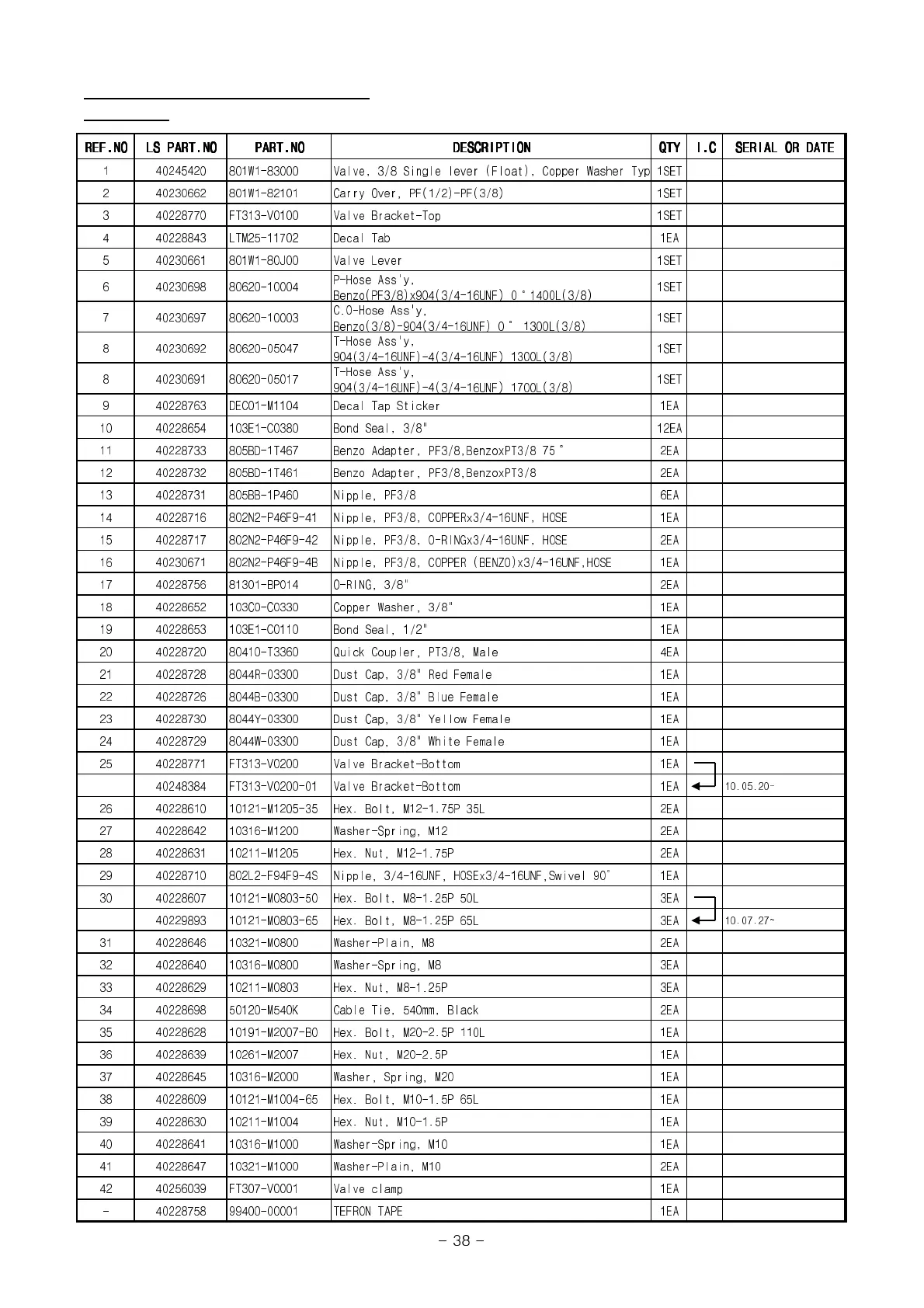

LS tractor LL3100 User Manual

HYDRAULIC CONNECTING
- WALVOIL
REF.NO
REF.NOREF.NO
REF.NO LS PART.NO
LS PART.NOLS PART.NO
LS PART.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
1 40245420 801W1-83000
Valve, 3/8 Single lever (Float), Copper Washer Type
1SET
2 40230662 801W1-82101 Carry Over, PF(1/2)-PF(3/8) 1SET
3 40228770 FT313-V0100 Valve Bracket-Top 1SET
4 40228843 LTM25-11702 Decal Tab 1EA
5 40230661 801W1-80J00 Valve Lever 1SET
6 40230698 80620-10004
P-Hose Ass'y,
Benzo(PF3/8)x904(3/4-16UNF) 0˚1400L(3/8)
1SET
7 40230697 80620-10003
C.O-Hose Ass'y,
Benzo(3/8)-904(3/4-16UNF) 0˚ 1300L(3/8)
1SET
8 40230692 80620-05047
T-Hose Ass'y,
904(3/4-16UNF)-4(3/4-16UNF) 1300L(3/8)
1SET
8 40230691 80620-05017
T-Hose Ass'y,
904(3/4-16UNF)-4(3/4-16UNF) 1700L(3/8)
1SET
9 40228763 DEC01-M1104 Decal Tap Sticker 1EA
10 40228654 103E1-C0380 Bond Seal, 3/8" 12EA
11 40228733 805BD-1T467 Benzo Adapter, PF3/8,BenzoxPT3/8 75˚ 2EA
12 40228732 805BD-1T461 Benzo Adapter, PF3/8,BenzoxPT3/8 2EA
13 40228731 805BB-1P460 Nipple, PF3/8 6EA
14 40228716 802N2-P46F9-41 Nipple, PF3/8, COPPERx3/4-16UNF, HOSE 1EA
15 40228717 802N2-P46F9-42 Nipple, PF3/8, O-RINGx3/4-16UNF, HOSE 2EA
16 40230671 802N2-P46F9-4B Nipple, PF3/8, COPPER (BENZO)x3/4-16UNF,HOSE 1EA
17 40228756 81301-BP014 O-RING, 3/8" 2EA
18 40228652 103C0-C0330 Copper Washer, 3/8" 1EA
19 40228653 103E1-C0110 Bond Seal, 1/2" 1EA
20 40228720 80410-T3360 Quick Coupler, PT3/8, Male 4EA
21 40228728 8044R-03300 Dust Cap, 3/8" Red Female 1EA
22 40228726 8044B-03300 Dust Cap, 3/8" Blue Female 1EA
23 40228730 8044Y-03300 Dust Cap, 3/8" Yellow Female 1EA
24 40228729 8044W-03300 Dust Cap, 3/8" White Female 1EA
25 40228771 FT313-V0200 Valve Bracket-Bottom 1EA
40248384 FT313-V0200-01 Valve Bracket-Bottom 1EA
10.05.20~
26 40228610 10121-M1205-35 Hex. Bolt, M12-1.75P 35L 2EA
27 40228642 10316-M1200 Washer-Spring, M12 2EA
28 40228631 10211-M1205 Hex. Nut, M12-1.75P 2EA
29 40228710 802L2-F94F9-4S Nipple, 3/4-16UNF, HOSEx3/4-16UNF,Swivel 90° 1EA
30 40228607 10121-M0803-50 Hex. Bolt, M8-1.25P 50L 3EA
40229893 10121-M0803-65 Hex. Bolt, M8-1.25P 65L 3EA
10.07.27~
31 40228646 10321-M0800 Washer-Plain, M8 2EA
32 40228640 10316-M0800 Washer-Spring, M8 3EA
33 40228629 10211-M0803 Hex. Nut, M8-1.25P 3EA
34 40228698 50120-M540K Cable Tie, 540mm, Black 2EA
35 40228628 10191-M2007-B0 Hex. Bolt, M20-2.5P 110L 1EA
36 40228639 10261-M2007 Hex. Nut, M20-2.5P 1EA
37 40228645 10316-M2000 Washer, Spring, M20 1EA
38 40228609 10121-M1004-65 Hex. Bolt, M10-1.5P 65L 1EA
39 40228630 10211-M1004 Hex. Nut, M10-1.5P 1EA
40 40228641 10316-M1000 Washer-Spring, M10 1EA
41 40228647 10321-M1000 Washer-Plain, M10 2EA
42 40256039 FT307-V0001 Valve clamp 1EA
- 40228758 99400-00001 TEFRON TAPE 1EA
- 38 -
