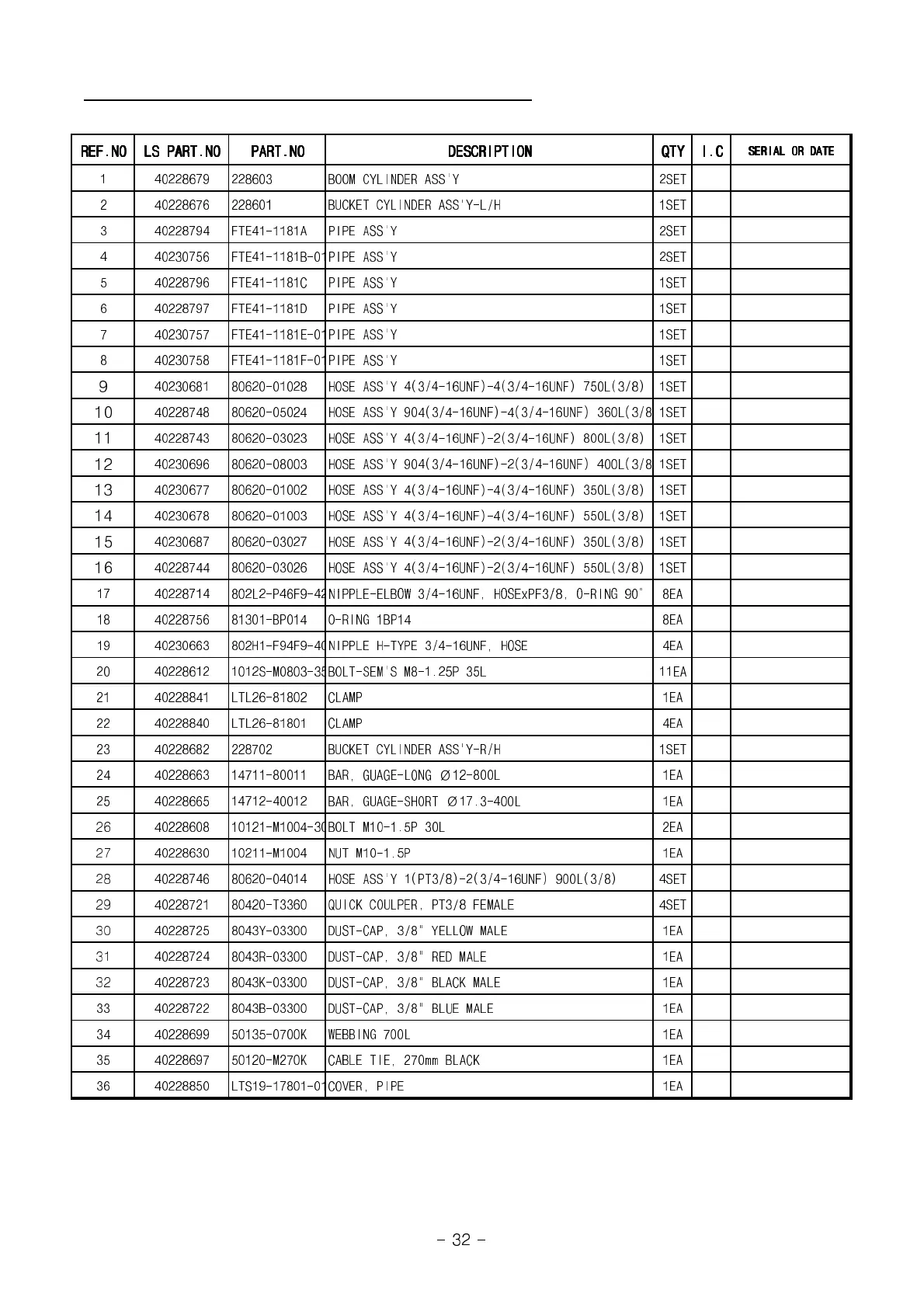

HYDRAULIC PIPING (NON SELF LEVEL H-TYPE)
REF.NO
REF.NOREF.NO
REF.NO LS PART.NO
LS PART.NOLS PART.NO
LS PART.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C
SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
1 40228679 228603 BOOM CYLINDER ASS'Y 2SET
2 40228676 228601 BUCKET CYLINDER ASS'Y-L/H 1SET
3 40228794 FTE41-1181A PIPE ASS'Y 2SET
4 40230756
FTE41-1181B-01
PIPE ASS'Y 2SET
5 40228796 FTE41-1181C PIPE ASS'Y 1SET
6 40228797 FTE41-1181D PIPE ASS'Y 1SET
7 40230757
FTE41-1181E-01
PIPE ASS'Y 1SET
8 40230758
FTE41-1181F-01
PIPE ASS'Y 1SET
9
40230681 80620-01028 HOSE ASS'Y 4(3/4-16UNF)-4(3/4-16UNF) 750L(3/8) 1SET
10
40228748 80620-05024
HOSE ASS'Y 904(3/4-16UNF)-4(3/4-16UNF) 360L(3/8)
1SET
11
40228743 80620-03023 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 800L(3/8) 1SET
12
40230696 80620-08003
HOSE ASS'Y 904(3/4-16UNF)-2(3/4-16UNF) 400L(3/8)
1SET
13
40230677 80620-01002 HOSE ASS'Y 4(3/4-16UNF)-4(3/4-16UNF) 350L(3/8) 1SET
14
40230678 80620-01003 HOSE ASS'Y 4(3/4-16UNF)-4(3/4-16UNF) 550L(3/8) 1SET
15
40230687 80620-03027 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 350L(3/8) 1SET
16
40228744 80620-03026 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 550L(3/8) 1SET
17
40228714
802L2-P46F9-42
NIPPLE-ELBOW 3/4-16UNF, HOSExPF3/8, O-RING 90°
8EA
17
40228714
802L2-P46F9-42
NIPPLE-ELBOW 3/4-16UNF, HOSExPF3/8, O-RING 90°
8EA
18 40228756 81301-BP014 O-RING 1BP14 8EA
19 40230663
802H1-F94F9-40
NIPPLE H-TYPE 3/4-16UNF, HOSE 4EA
20 40228612
1012S-M0803-35
BOLT-SEM'S M8-1.25P 35L 11EA
21 40228841 LTL26-81802 CLAMP 1EA
22 40228840 LTL26-81801 CLAMP 4EA
23 40228682 228702 BUCKET CYLINDER ASS'Y-R/H 1SET
24 40228663 14711-80011 BAR, GUAGE-LONG Ø12-800L 1EA
25 40228665 14712-40012 BAR, GUAGE-SHORT Ø17.3-400L 1EA
26 40228608
10121-M1004-30
BOLT M10-1.5P 30L 2EA
27 40228630 10211-M1004 NUT M10-1.5P 1EA
28 40228746 80620-04014 HOSE ASS'Y 1(PT3/8)-2(3/4-16UNF) 900L(3/8) 4SET
29 40228721 80420-T3360 QUICK COULPER, PT3/8 FEMALE 4SET
30 40228725 8043Y-03300 DUST-CAP, 3/8" YELLOW MALE 1EA
31 40228724 8043R-03300 DUST-CAP, 3/8" RED MALE 1EA
32 40228723 8043K-03300 DUST-CAP, 3/8" BLACK MALE 1EA
33 40228722 8043B-03300 DUST-CAP, 3/8" BLUE MALE 1EA
34 40228699 50135-0700K WEBBING 700L 1EA
35 40228697 50120-M270K CABLE TIE, 270mm BLACK 1EA
36 40228850
LTS19-17801-01
COVER, PIPE 1EA
- 32 -
