LOADER OPERATION
Loader
Loader Loader
Loader
Hydraulic Controls
Hydraulic ControlsHydraulic Controls
Hydraulic Controls

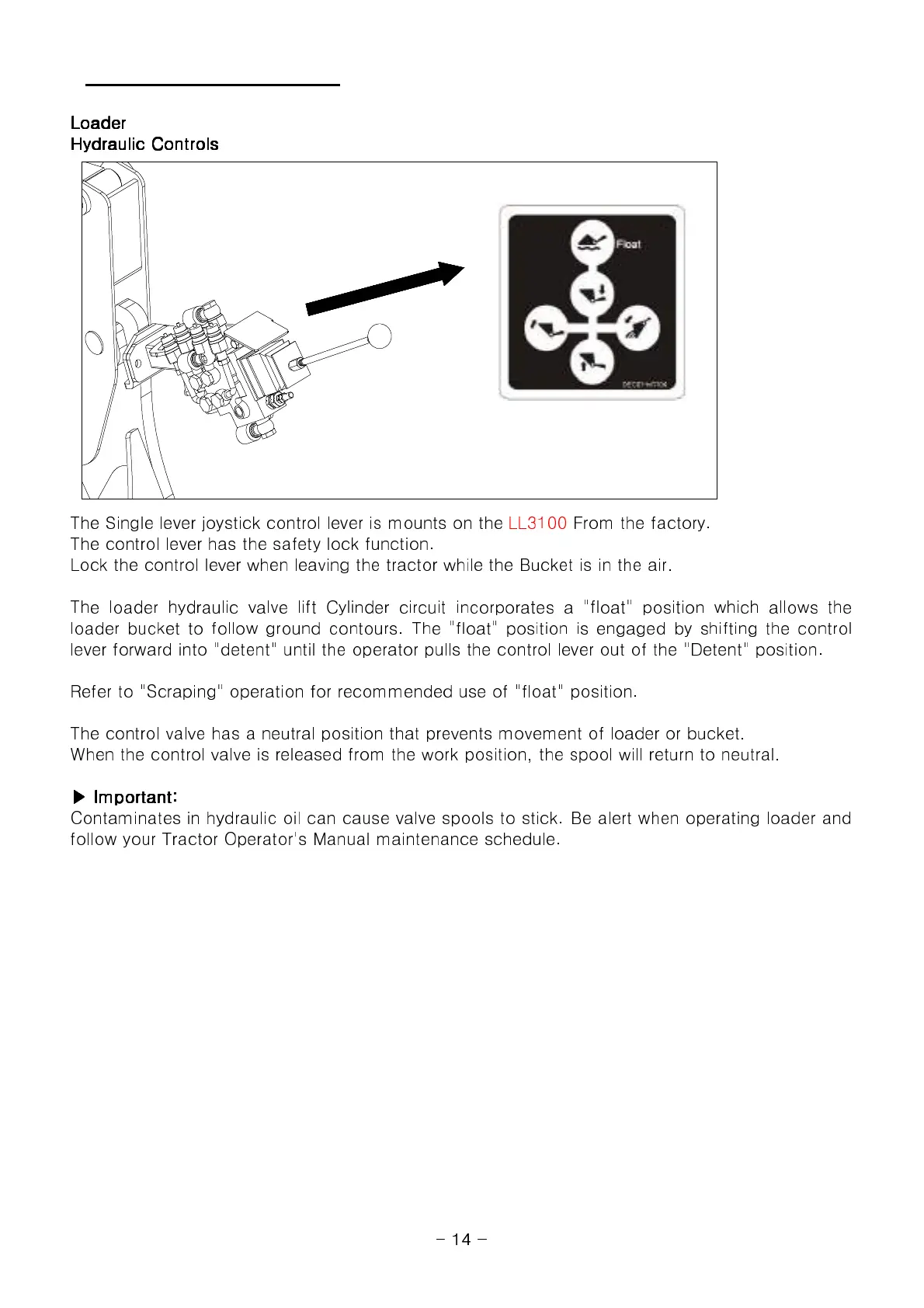

The Single lever joystick control lever is mounts on the LL3100 From the factory.
The control lever has the safety lock function.
Lock the control lever when leaving the tractor while the Bucket is in the air.
- 14 -
Refer to "Scraping" operation for recommended use of "float" position.
The control valve has a neutral position that prevents movement of loader or bucket.
When the control valve is released from the work position, the spool will return to neutral.
▶ Important:
▶ Important:▶ Important:
▶ Important:
The loader hydraulic valve lift Cylinder circuit incorporates a "float" position which allows the
loader bucket to follow ground contours. The "float" position is engaged by shifting the control
lever forward into "detent" until the operator pulls the control lever out of the "Detent" position.
Contaminates in hydraulic oil can cause valve spools to stick. Be alert when operating loader and
follow your Tractor Operator's Manual maintenance schedule.
- 14 -
