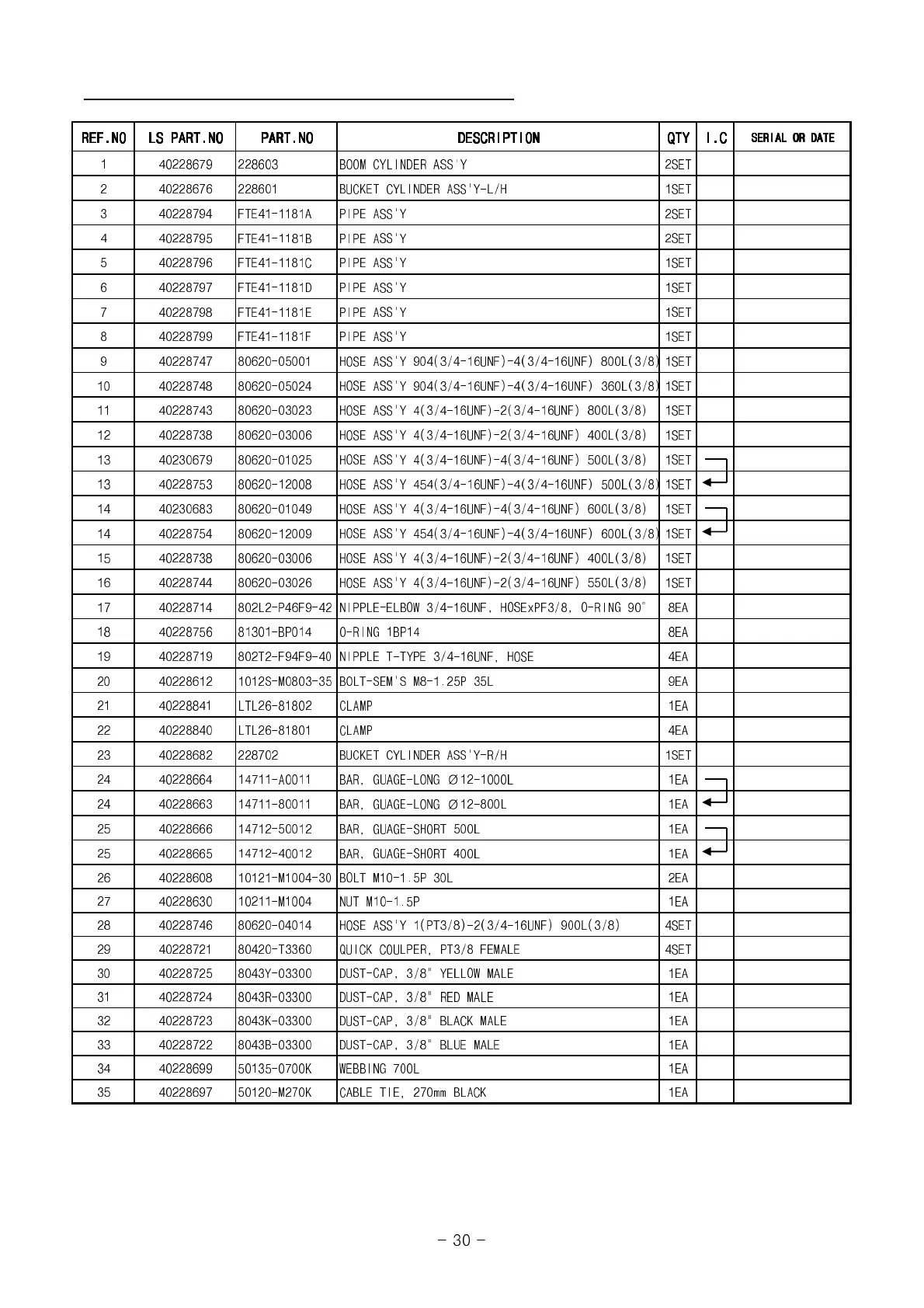

HYDRAULIC PIPING (NON SELF LEVEL T-TYPE)
REF.NO
REF.NOREF.NO
REF.NO LS PART.NO
LS PART.NOLS PART.NO
LS PART.NO PART.NO
PART.NOPART.NO
PART.NO DESCRIPTION
DESCRIPTIONDESCRIPTION
DESCRIPTION QTY
QTYQTY
QTY I.C
I.CI.C
I.C
SERIAL OR DATE
SERIAL OR DATESERIAL OR DATE
SERIAL OR DATE
1 40228679 228603 BOOM CYLINDER ASS'Y 2SET
2 40228676 228601 BUCKET CYLINDER ASS'Y-L/H 1SET
3 40228794 FTE41-1181A PIPE ASS'Y 2SET
4 40228795 FTE41-1181B PIPE ASS'Y 2SET
5 40228796 FTE41-1181C PIPE ASS'Y 1SET
6 40228797 FTE41-1181D PIPE ASS'Y 1SET
7 40228798 FTE41-1181E PIPE ASS'Y 1SET
8 40228799 FTE41-1181F PIPE ASS'Y 1SET
9 40228747 80620-05001
HOSE ASS'Y 904(3/4-16UNF)-4(3/4-16UNF) 800L(3/8)
1SET
10 40228748 80620-05024
HOSE ASS'Y 904(3/4-16UNF)-4(3/4-16UNF) 360L(3/8)
1SET
11 40228743 80620-03023 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 800L(3/8) 1SET
12 40228738 80620-03006 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 400L(3/8) 1SET
13 40230679 80620-01025 HOSE ASS'Y 4(3/4-16UNF)-4(3/4-16UNF) 500L(3/8) 1SET
13 40228753 80620-12008
HOSE ASS'Y 454(3/4-16UNF)-4(3/4-16UNF) 500L(3/8)
1SET
14 40230683 80620-01049 HOSE ASS'Y 4(3/4-16UNF)-4(3/4-16UNF) 600L(3/8) 1SET
14 40228754 80620-12009
HOSE ASS'Y 454(3/4-16UNF)-4(3/4-16UNF) 600L(3/8)
1SET
15 40228738 80620-03006 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 400L(3/8) 1SET
16 40228744 80620-03026 HOSE ASS'Y 4(3/4-16UNF)-2(3/4-16UNF) 550L(3/8) 1SET
17 40228714 802L2-P46F9-42 NIPPLE-ELBOW 3/4-16UNF, HOSExPF3/8, O-RING 90° 8EA
18 40228756 81301-BP014 O-RING 1BP14 8EA
19 40228719 802T2-F94F9-40 NIPPLE T-TYPE 3/4-16UNF, HOSE 4EA
20 40228612 1012S-M0803-35 BOLT-SEM'S M8-1.25P 35L 9EA
21 40228841 LTL26-81802 CLAMP 1EA
22 40228840 LTL26-81801 CLAMP 4EA
23 40228682 228702 BUCKET CYLINDER ASS'Y-R/H 1SET
24 40228664 14711-A0011 BAR, GUAGE-LONG Ø12-1000L 1EA
24 40228663 14711-80011 BAR, GUAGE-LONG Ø12-800L 1EA
25 40228666 14712-50012 BAR, GUAGE-SHORT 500L 1EA
25 40228665 14712-40012 BAR, GUAGE-SHORT 400L 1EA
26 40228608 10121-M1004-30 BOLT M10-1.5P 30L 2EA
27 40228630 10211-M1004 NUT M10-1.5P 1EA
28 40228746 80620-04014 HOSE ASS'Y 1(PT3/8)-2(3/4-16UNF) 900L(3/8) 4SET
29 40228721 80420-T3360 QUICK COULPER, PT3/8 FEMALE 4SET
30 40228725 8043Y-03300 DUST-CAP, 3/8" YELLOW MALE 1EA
31 40228724 8043R-03300 DUST-CAP, 3/8" RED MALE 1EA
32 40228723 8043K-03300 DUST-CAP, 3/8" BLACK MALE 1EA
33 40228722 8043B-03300 DUST-CAP, 3/8" BLUE MALE 1EA
34 40228699 50135-0700K WEBBING 700L 1EA
35 40228697 50120-M270K CABLE TIE, 270mm BLACK 1EA
- 30 -
