2 -6

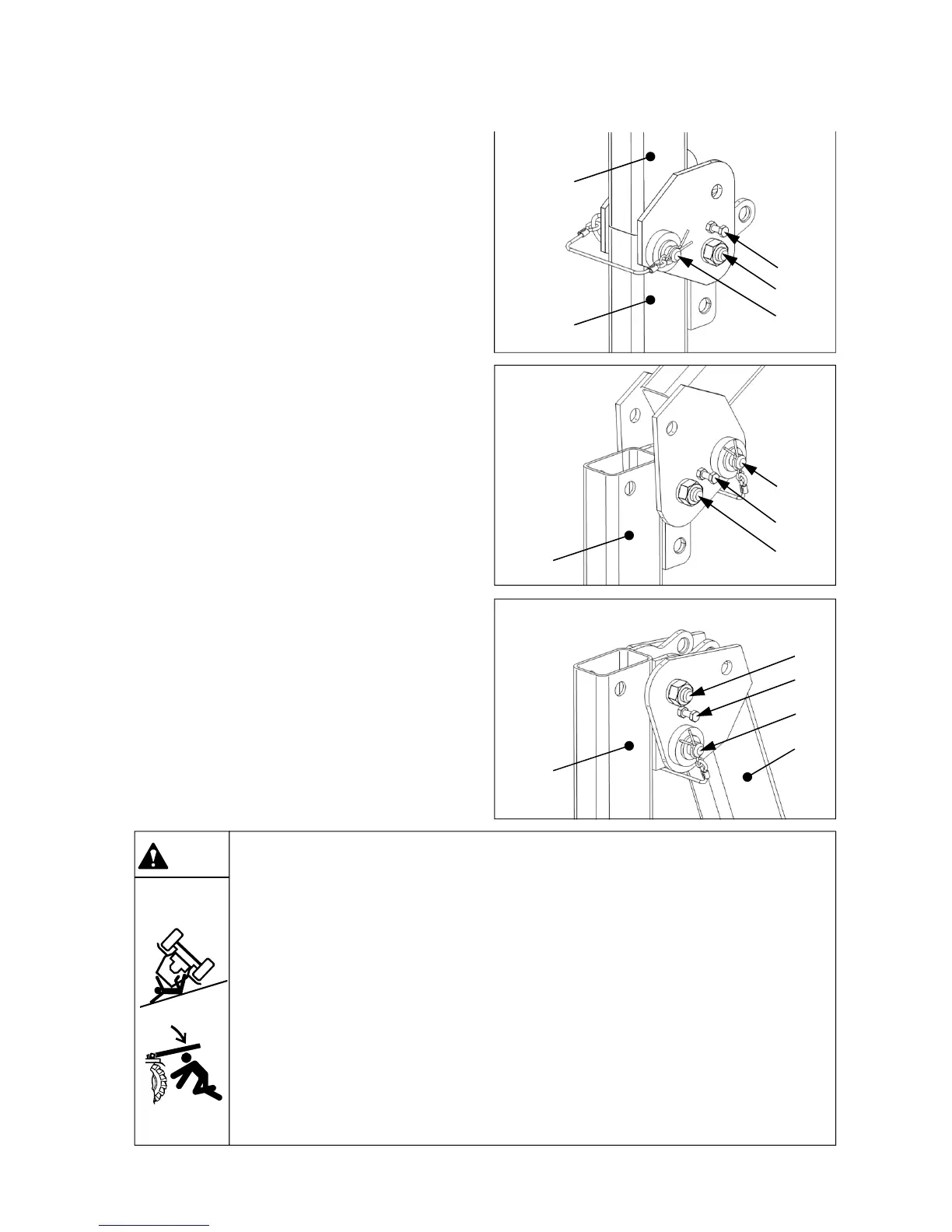

z How to fold the safety frame.
1. Loosen the safety frame bolts②④and nuts
(both sides) loosely. (Do not unscrew them
completely)
2. Remove the pins③ on the both side and fold
down the safety frame backward.
- Be careful of the possibility that your head, hand
and shoulder might be hurt by sudden folding
result from the weight of the safety frame.
3. Depending the position of the upper frame ⑤,
two positions are available on the lower frame
①. When folding the upper frame ⑤ fully, use
the lower side hole of the lower frame ① .
4. Set the holes of the frame ① and ⑤ in line, and
put the pins③ into the hole to fix the safety
frame and apply the snap pin.
5. Fasten the bolts②④and nuts (both sides)
tightly.
z When standing the safety frame up, follow the
same procedure.
z When the upper safety frame ⑤ is fully folded,
check the upper limit of 3-point linkage.
(4) Roll-Over Protective Structure (ROPS)
① Foldable Safety frame (Roll-bar type)
Warning
▶ Do not change or disassemble the safety frame arbitrarily for safety.
▶ Unless the safety frame is applied correctly, it may cause a serious accident on
tractor when being overturned.
- Be sure to stand the safety frame up completely and assemble the bolts, pins and
nuts in correctly.
▶ In case of folding the safety frame.
- Do cooperate with more than 2 people when folding or standing up the safety
frame as it’s heavy.
- Be careful not to be injured by sudden folding, which might occur when folding or
standing up the safety frame, results from its weight.
- Do not wear seatbelt when the safety frame is folded down.
- Do stand the safety frame up again as soon as the work is finished.
①
②
③
④
⑤
①
②
③
④
⑤
①
②
③
④
