4
-5

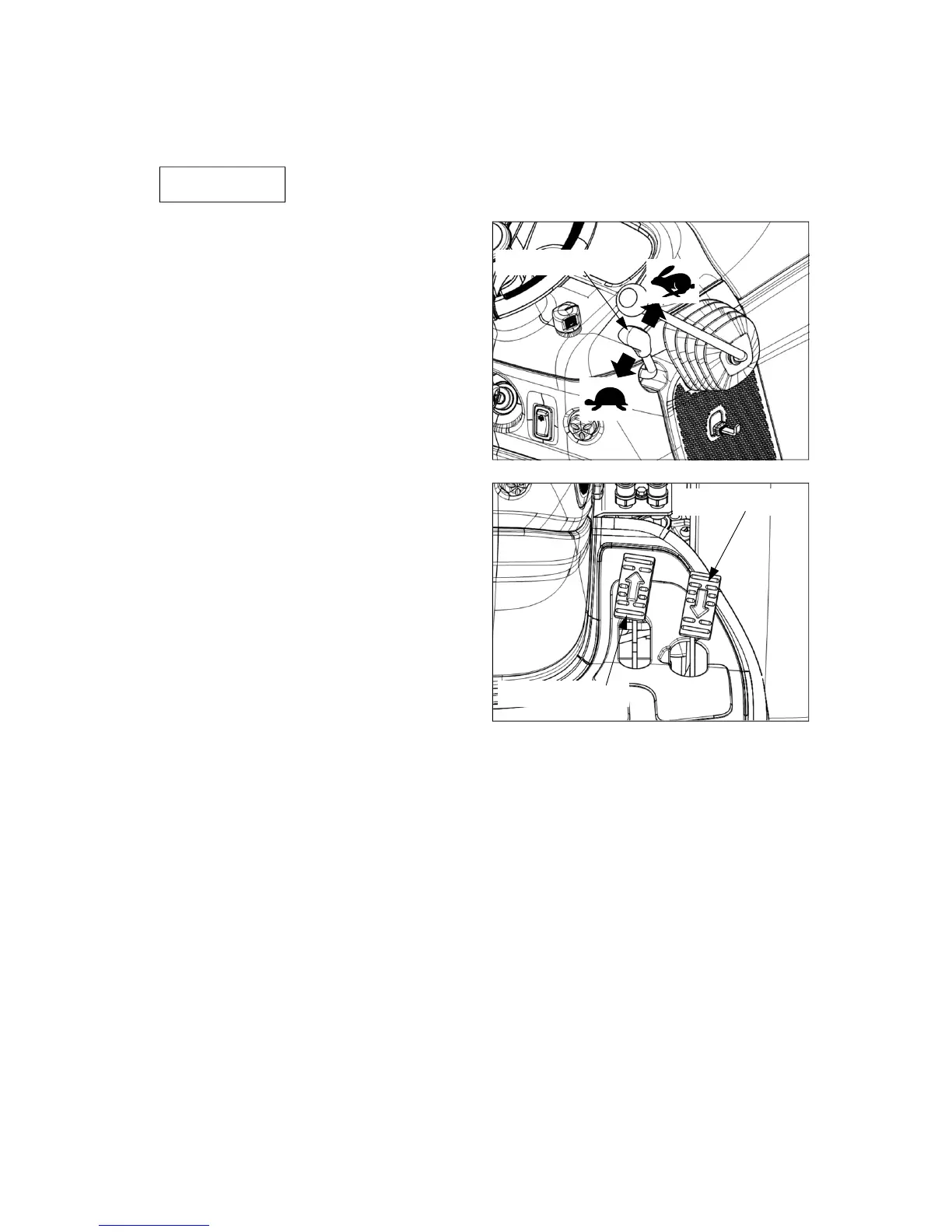

(2) Changing speed
HST type
z
Move throttle lever forward to increase the
driving speed.
z
Press down the HST
pedals slightly or fully to
control the driving speed.
z
Set
driving speed prope
r
ly dependin
g on the
road condition
with
range gear lever.
z
The range gear shift lever must
be operated
in
the neural state of HST pedals, and after tractor
has sto
pped completely.
Throttle lever
HST forw
ard pedal
HST reverse ped
al
65
67
Table of Contents
Default Chapter
9
Table of Contents
9
1 General Notices for Safety
13
Before Using the Tractor
13
Safety Precautions (Read this for Safety before Using)
16
Notices before Using the Tractor
16
Notices When Starting Engine
19
Notices While Operating/Using the Tractor
20
Notices When Connecting Implement
22
Notices When Towing the Tractor
23
Notices When Transporting the Tractor
23
Notices When Servicing the Tractor after Work
24
Notices When Handling Diesel Fuel
25
Notices When Leaving the Tractor
26
Notices Relating to Toxic Substances
26
Long-Term Storage
27
Preparation for Storage
27
Check & Maintenance During Storage
28
Preparation for Reuse
28
Notices for "Use & Disposal" Related to the Environment
29
Symbols
30
Safety Decals
31
Handling and Maintenance of Safety Decals
31
Safety Decals and Attaching Position
31
2 Instruction for Safe Operation
36
The Name of each Part
36
Boarding and Exiting the Tractor
37
Boarding the Tractor
37
Driver's Seat Switch
37
Seat Adjustment
38
Seat Belt
39
Exiting the Tractor
39
Safety Device
40
Hood (Bonnet)
40
Fender
40
PTO Safety Cover and Protection Cap
40
Roll-Over Protective Structure (ROPS)
41
3 Instruments and Controls
42
Instrument Panel and Front Controls
42
Instrument Panel
43
Key Switch
45
Turn Signal Light Switch
45
Light Switch
46
Hazard Warning Light Switch
46
PTO Switch
47
Throttle Lever
49
HST Forward / Reverse Pedal (HST Type)
49
Cruise Control Switch (HST Type)
50
Left / Right-Hand Side Levers and Pedals
51
Range Gear Shift Lever
52
4WD Lever
52
PTO Select Lever
53
Work Light Switch
53
Differential Lock Pedal
54
Electrical Power Outlet Socket
54
Hydraulic System (1) Safety Precautions
55
Steering System
56
Hydraulic Lift Control
57
MID Mower Height Adjustment Knob
58
Remote Control Lever and Quick Coupler (Optional)
59
Joystick Lever (if Fitted)
60
Hydraulic System Diagram
61
4 Operation and Work
62
Engine Start and Stop
62
Engine Start
62
Start in Cold Weather
63
Engine Stop
64
How to Drive and Stop
65
How to Drive
65
Changing Speed
66
Emergency Stop
67
Stopping Tractor
68
Driving Tractor on the Road
69
How to Handle New Tractor
71
Check Points
71
Notices in Handling New Tractor
71
Attaching Implement
72
3-Point Linkage
72
Power Take-Off (PTO) Shaft
76
Hitch and Drawbar (Optional)
79
7-Pole Connector (Optional)
80
Technically Maximum Permissible Mass
81
Tires and Load Capacity
82
Adjusting Wheel Tracks and Tire Replacement
83
Using Front-End Loader (Optional)
84
Adjusting Steering Angle
87
Recommended Maximum Specification of Implements
88
Driving Speed
89
5 Lubrication and Maintenance
90
Access for Maintenance
90
Maintenance Chart
91
Lubricants and Capacity
93
First 50 Hour Check
94
Engine Oil
95
Fuel Tank
96
Instrument Panel & Indicators
96
Turn Signal Lights, Lights and Horn
97
Engine Coolant
98
Air Cleaner (Dry Type)
98
Tire Air Pressure and Damage
99
Tightening State of Bolts and Nuts of each Part
100
Adjustment of Brake Pedal Play
101
Lubricating Grease
103
Cleaning of Radiator and Radiator Screen
103
Checking Transmission Oil
103
Checking Front Axle Oil
104
Battery Check
104
Air Cleaner (Dry Type)
104
Hydraulic Hoses and Leakage
104
Every 250 Hour Check
105
Replacing Engine Oil and Filter
105
Replacing Hydraulic Oil Filter
106
Tension Adjustment of Fan Belt
107
Drain Fuel Tank
107
Toe-In
108
Every 500 Hour Check
109
Changing Front Axle Oil
109
Changing Transmission Oil
109
Replacing Fuel Filter Cartridge
110
Replacing Air Cleaner Element (Dry Type)
111
Every 1000 Hour Check
112
Adjusting Engine Valve Clearance
112
Every 1500 Hour Check
112
Inspect Crankcase Breather System
112
Every 2000 Hour or 2-Year Check
113
Replacement of Engine Coolant
113
Check and Replace Fuel Hoses and Coolant Hoses
114
General Maintenance (When Required)
115
Air-Bleeding from Fuel System
115
Fuse & Main Fuse
116
Battery Handling and Notices
118
Troubleshooting
122
