Atom Operator Manual Introduction
LSC Lighting Systems (Aust) Pty. Ltd. 2
1.0 INTRODUCTION
The Atom is a simple to use yet powerful lighting control desk that is suited to a wide range of applications. It
is available in the 12/24 channel model and the 24/48 channel model, both of which have similar features and
vary only in the number of channels and Submasters that they support.

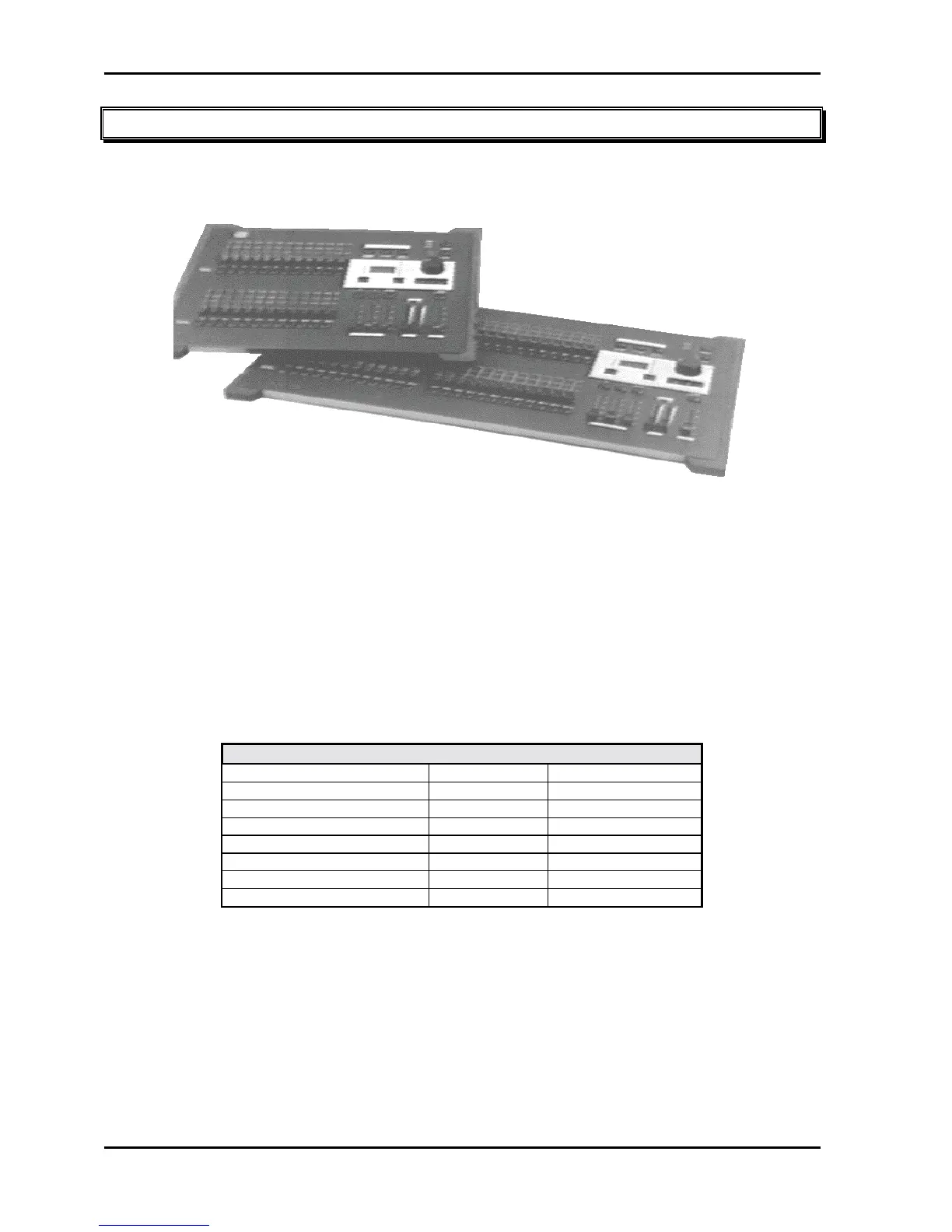

Atom 12/24 Atom 24/48
1.1 Features
The Atom incorporates the following features;
• Manual faders for all channels with associated Solo keys.
• Red, Yellow and Grab Preset masters with associated Solo keys.
• Yellow Preset master may be inverted.
• “Preset”, “WIDE” preset and “Scene” modes of operation.
• In Scene mode, the red faders become Submasters that may be used for scenes or chases.
• 9 pages of memory for the Submasters.
• Separate In (up) and Out (down) fade times (0 to 120 seconds).
• Scene Fade Times can be derived from the Time Faders or from Memory.
• Solo level fader, with associated Add or Kill mode key.
• Large storage capacity for Scenes and Chases.
ATOM 12/24 ATOM 24/48
Channels -Preset Mode 12 24
Channels -Wide Mode 24 48
Submasters -Scene Mode 12 24
Pages of memory 9 9
Scenes up to 108 up to 216
Chases up to 108 up to 216
Steps per chase 99 99
Active chases 13 25
• Extensive Recording Editing and Previewing facilities for Scenes & Chases.
• Utilises “battery backed up” memory.
• User prompts are scrolled on the display and active keys flash to make operations simple.
• Information may be displayed on a VGA monitor (optional), Video Terminal or Personal Computer.
• Memory contents may be down loaded to a serial printer or a computer
• DMX 512/1990 output signal.
• Inbuilt Softpatch.
• Power supply is user selectable, 85−130 volts or 170−260 volts.
