Lucent Technologies MERLIN LEGEND Release 6.1 Network Reference

MERLIN LEGEND Communications System Release 6.1
Network Reference 555-661-150
Issue 1
August 1998
Introduction
Page 1-9Tandem Trunking and Tandem Switching
1
In this example, system users make calls in the same way as they would in a
series configuration. The primary difference between a star configuration and a
series configuration is that in a star configuration all network-routed calls pass
through a central
hub system , in this case, a DEFINITY ECS or DEFINITY
ProLogix Solutions system. The hub normally terminates stations as well as
external facilities.

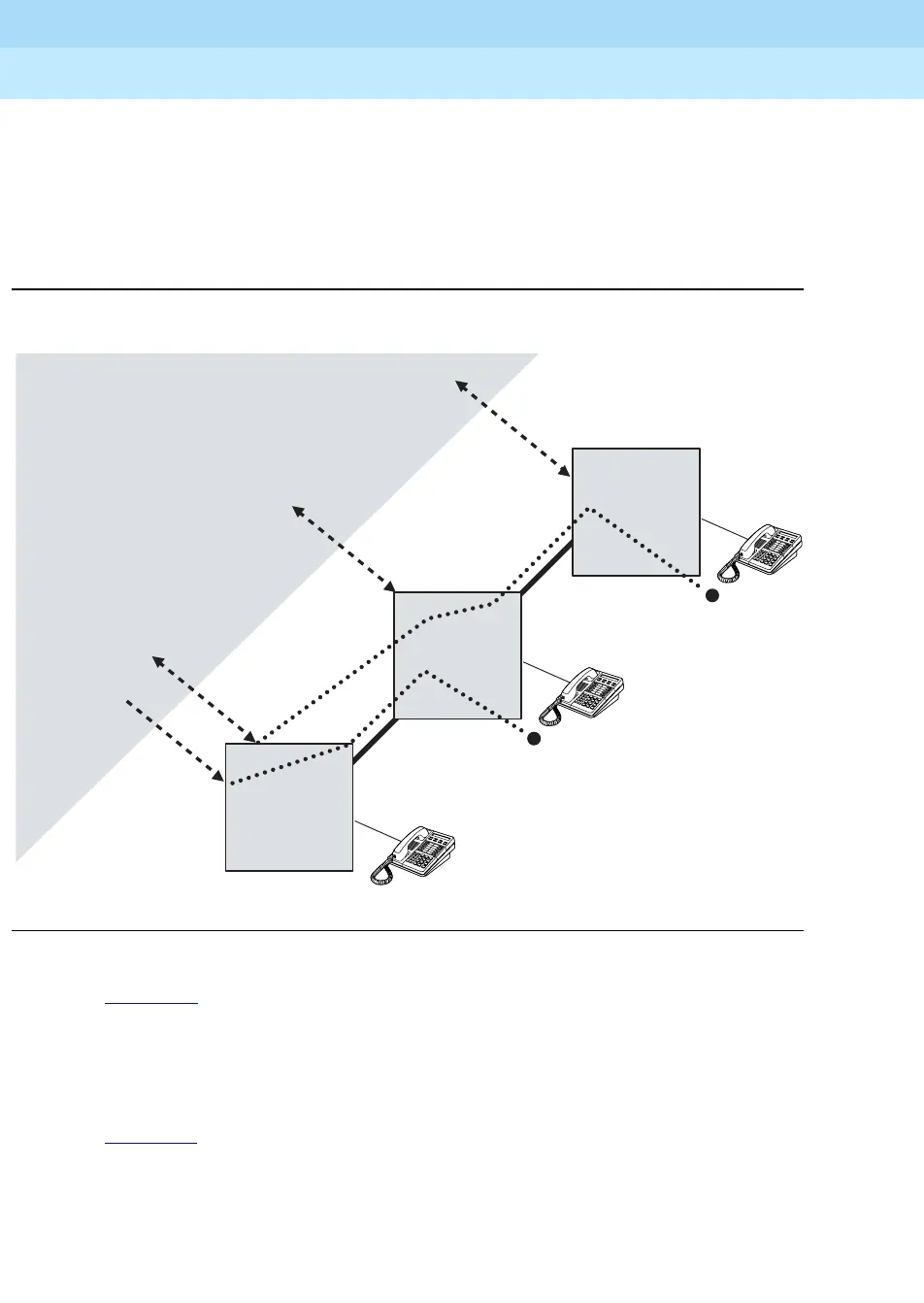

Figure 1–3. Star Configuration: Three Systems
Figure 1–3
shows a simpler star configuration consisting only of MERLIN
LEGEND Communications Systems. It may look like a series, but all network-
routed calls pass through a central hub, System A, just as they do in the larger
star configuration. This illustration also shows how PSTN calls can be routed in a
private network.
Figure 1–3
shows some specific PSTN facilities as well as tandem trunks. Calls 1
and 2, represented by dotted lines, can enter the private network and be routed
directly through System B to extensions on System C and System A. Both Direct
Inward Dialing (DID) and PRI outside facilities permit this type of routing.
However, the types of tandem trunks that connect the systems, as well as the
lines/trunks connecting to the PSTN, also affect the decisions that you make
PSTN
PRI
PRI
PRI
T1 DID
Call 2
Call 1
ML B
ML A
ML C
