11-5
944E-42
Transfer Carriage

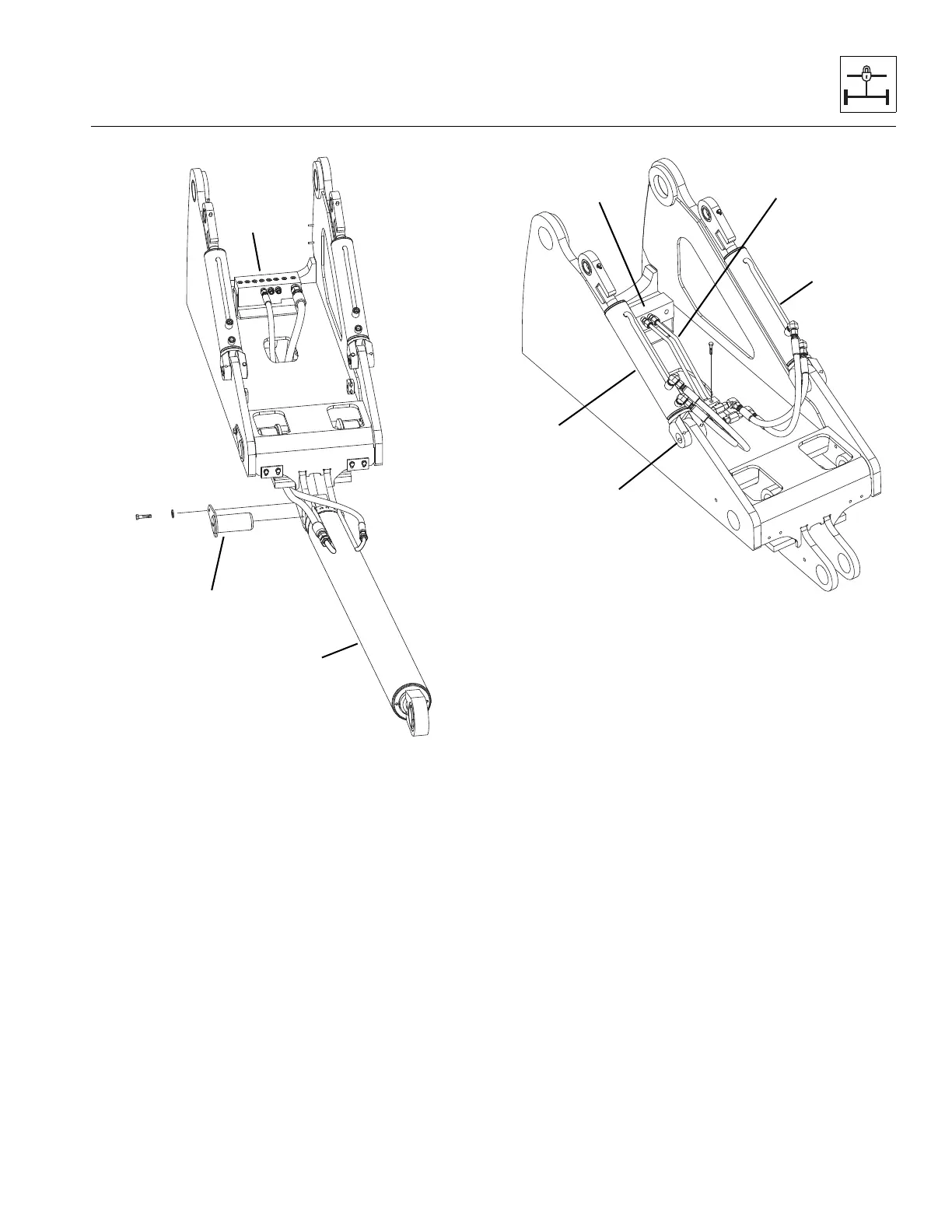

18. Remove the pin (8) from lift cylinder (6). Lower and
place the cylinder on support blocks on a firm level
surface.
19. Label, disconnect and cap all hydraulic hoses
connecting the slave cylinders (9) to the hydraulic
tubes (10). Cap all fittings and openings to prevent
dirt and debris from entering the hydraulic system.
20. Label, disconnect and cap the hydraulic tubes (10)
from the hydraulic junction manifold (7). Cap all
fittings and openings to prevent dirt and debris from
entering the hydraulic system.
21. Secure the slave cylinder with a sling and take up
any slack.
22. Remove the pin (11) from the slave cylinder (9). Lift,
lower and place the slave cylinder on support blocks
on a firm level surface.
23. Repeat steps 21 and 22 for the other slave cylinder.
24. Disconnect the back-up alarm electrical connection
from the wire harness and remove the back-up
alarm from the transfer carriage.
25. Remove the hydraulic junction manifold (7) from the
transfer carriage. Lay hoses and hydraulic junction
manifold behind frame.
To Next Page
