19

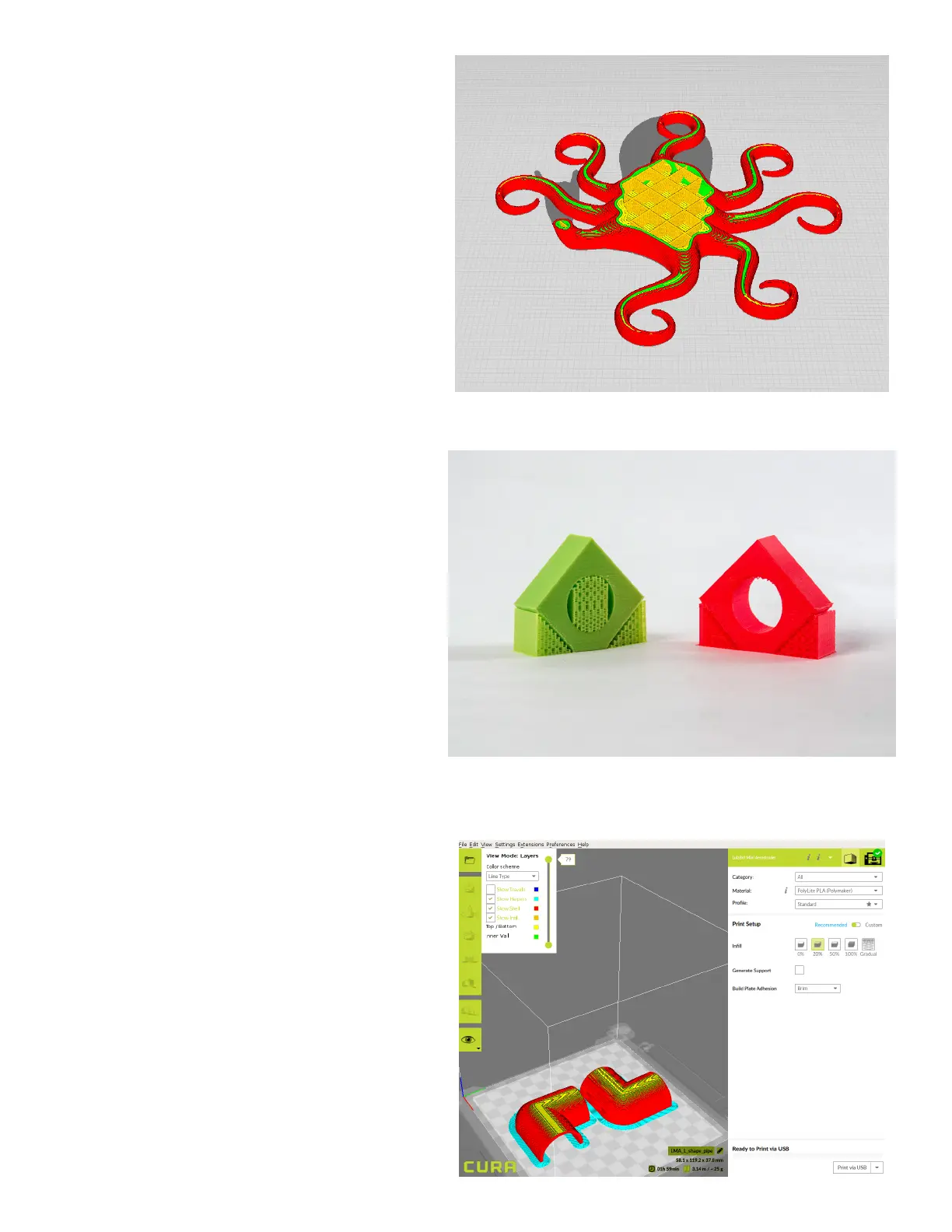

Infill
Balance material use, print speed, and print
weight with the recommended print infill
setting of 20%. A higher infill percentage
can result in stronger object, for example
your LulzBot 3D Printer is built with ABS
parts 3D printed with a 60% or higher infill.
Generate Support
The LulzBot Mini 2 3D printer is able to
print models that have angles and
overhangs, even without support material.
Turn this option on if sections of the model
extend out away from the model. This will
build up material underneath the portion
extending in mid-air, preventing drooping
or sagging.
Build Plate Adhesion
The slicing profiles included within Cura LE
will use a skirt to prime the hot end to
ensure that sufficient material is being
extruded prior to starting on the actual
object.
The Brim option can improve printed part
adhesion to the print surface by increasing
the surface area of the first layer.
The Raft option uses a larger, multi-layered
base to improve part adhesion. In general,
Skirt is preferred.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the LulzBot Mini 2 and is the answer not in the manual?

LulzBot Mini 2 Specifications

General IconGeneral
Filament Diameter2.85 mm
Nozzle Diameter0.5 mm
Print SpeedUp to 275 mm/s
ConnectivityUSB, SD Card
SoftwareCura LulzBot Edition
Operating System CompatibilityWindows, macOS, Linux
Build Volume160 mm x 160 mm x 180 mm
Layer Resolution0.05 mm - 0.4 mm
Supported MaterialsPLA, ABS, TPU, Nylon
Print SurfaceHeated borosilicate glass/PEI
Bed LevelingAutomatic
Power Requirements100 - 240 VAC
Printer Dimensions340mm x 385mm
