English -
13

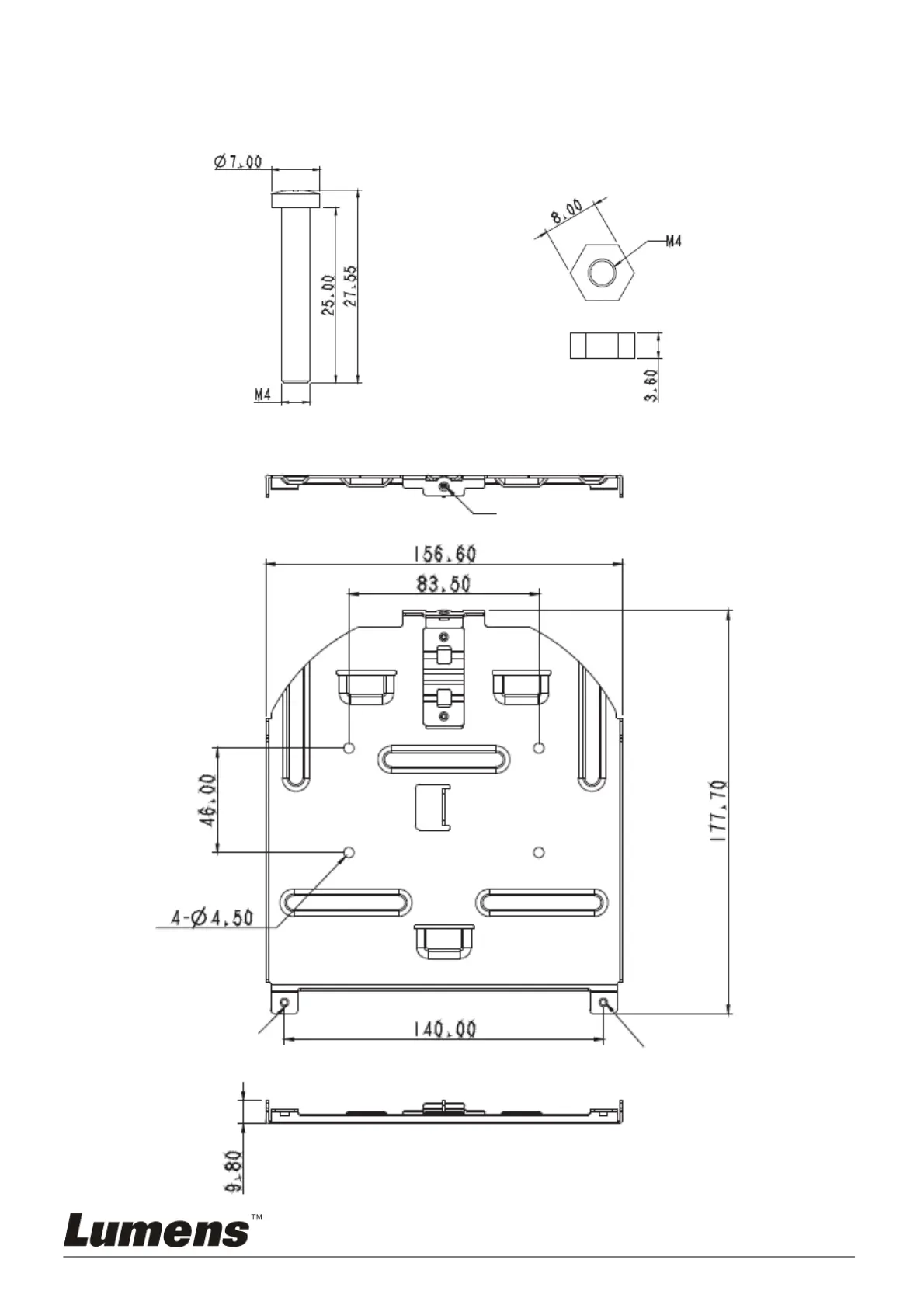

4.2.2.4 Size Diagram
1. Metal plate B - ceiling side
Metal plate B locking screw Metal plate B locking bolt
Metal plate B - ceiling side
M3 threaded hole
M3 threaded hole
M3 threaded hole
