10
4.2.2.4

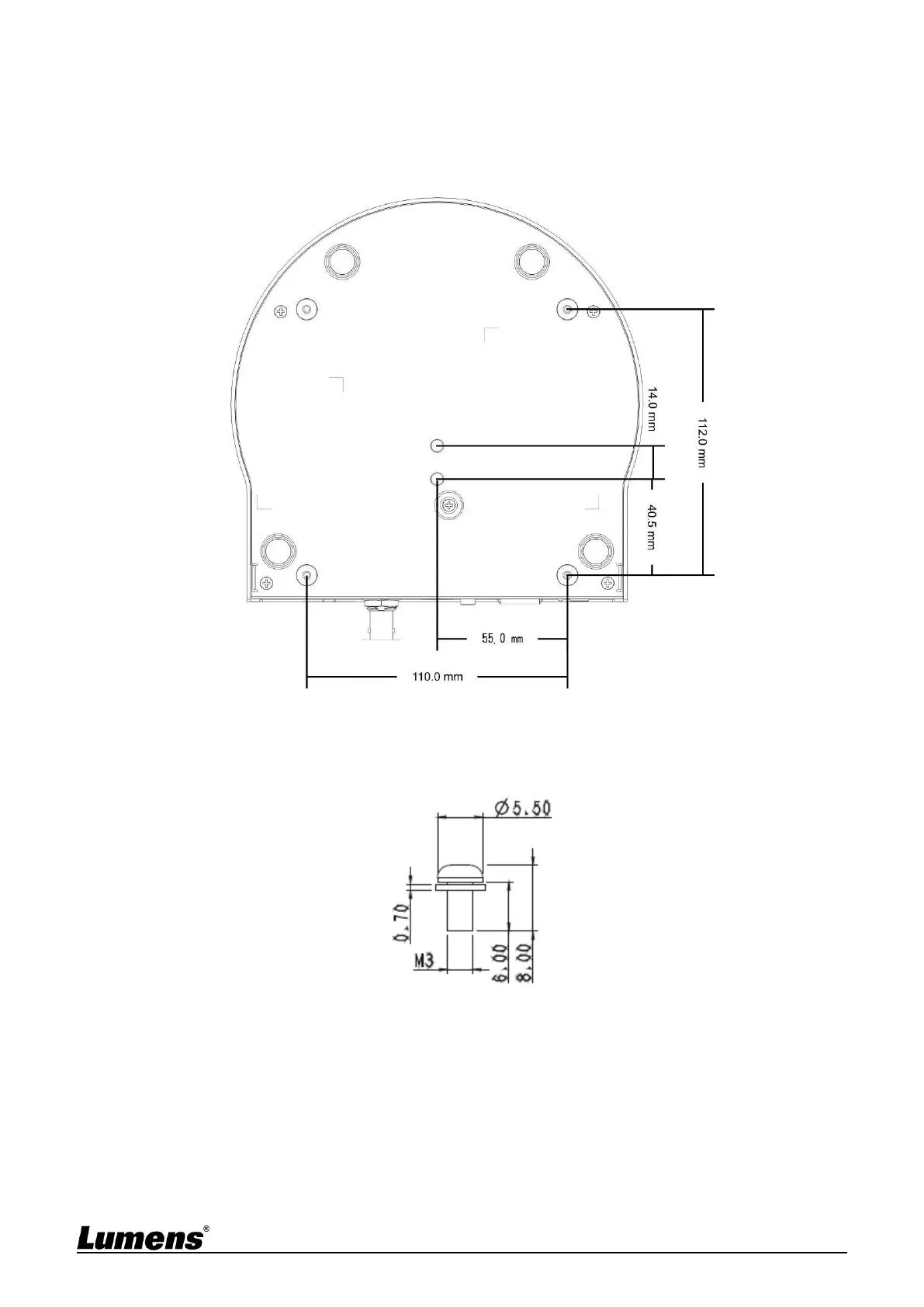

Size Diagram
1.
Bottom of machine
The camera can be m
ounted on a 1/4
”
,
-
20
UN
C PTZ tripod deck
by using the lock
holes on the bottom for the tripod
2.
Metal Plate size diagra
m
Metal plate A - machine side
Metal plate A lock
ing screw
10
12
