English - 18

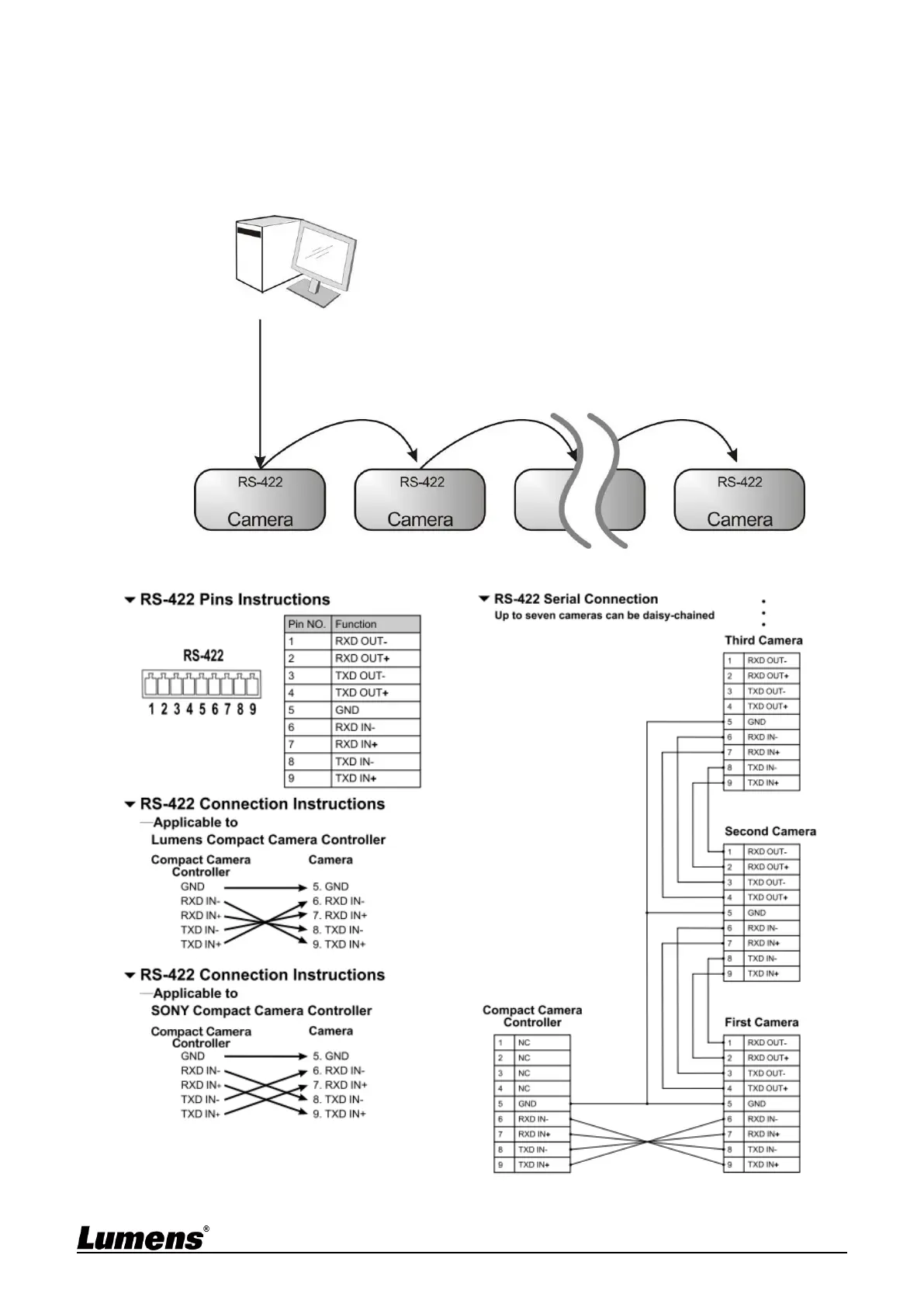

4.3.6 Connecting RS-422
With RS-422, at most 7 Lumens cameras can be connected.
<Caution> When RS-422 connection is being used, do not use RS-232
connection.
RS-422 pins definition instructions
