English - 12

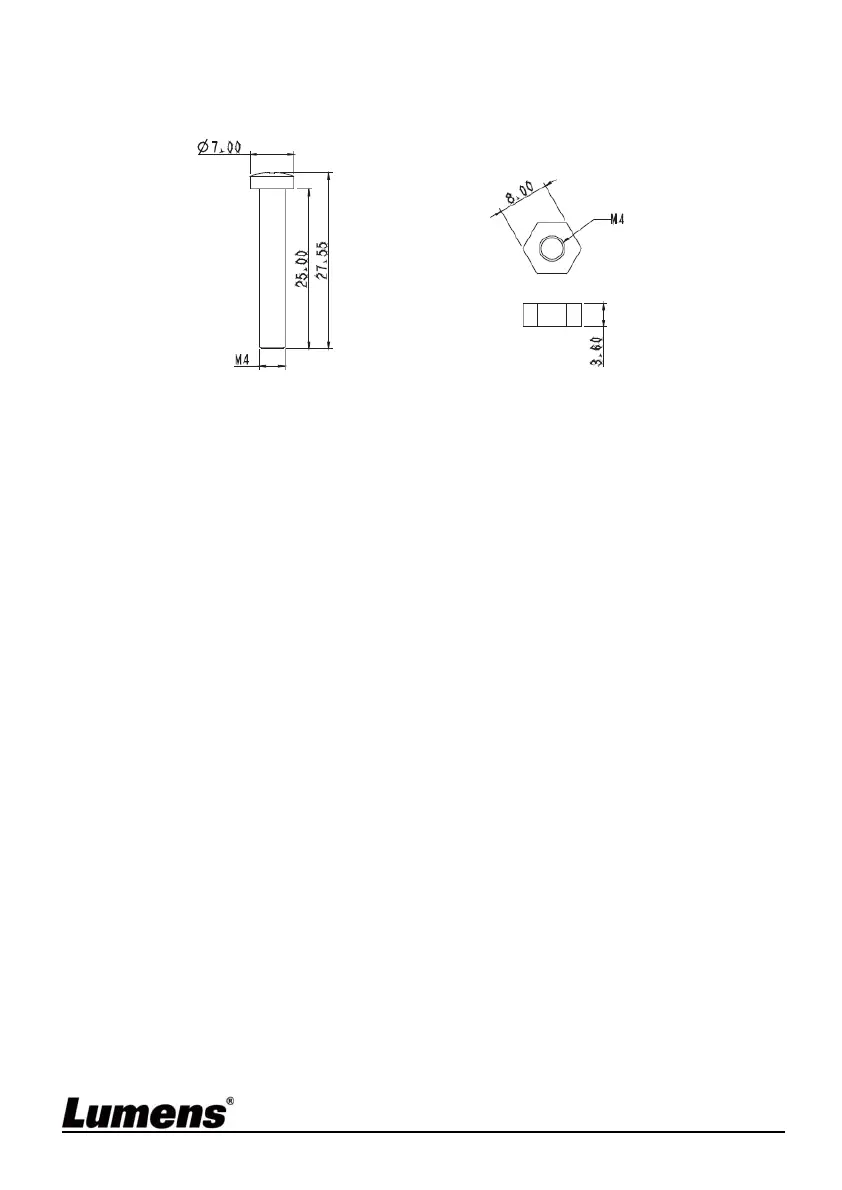

4.2.2.4 Size Diagram
1. Metal plate B - ceiling side
Metal plate B locking
screw
Metal plate B locking bolt
