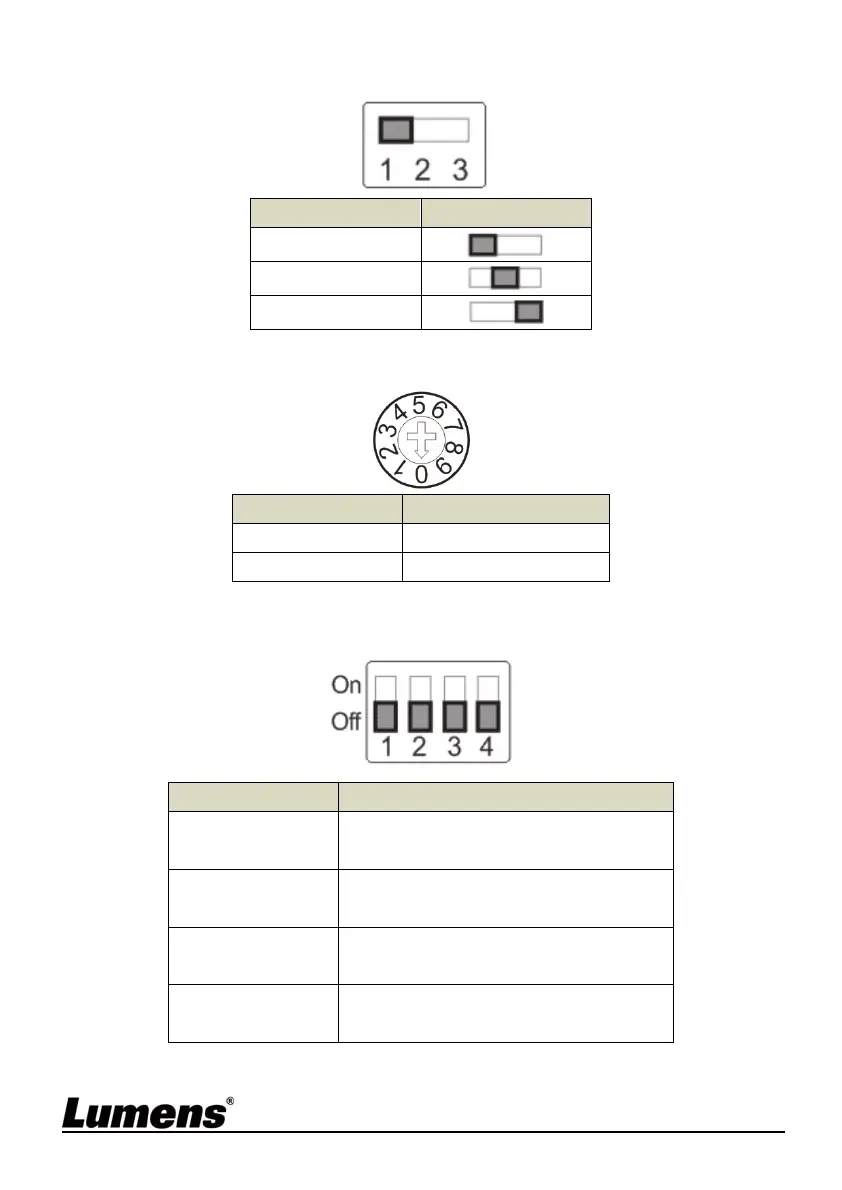

7.1.2 IR SELECT
ID Setting
1
2
3
7.1.3 Camera Address Selector
Setting Function Descriptions
0~7 ID 0~7
8~9 Reserved
7.1.4 System Switch
Setting Function Descriptions
DIP 1
RS-232C/RS-422 selector
OFF : RS-232C / ON : RS-422
DIP 2
Infrared signal output switch
OFF : Off / ON : On
DIP 3
Communication baud rate selector
OFF : 9600 / ON : 38400
DIP 4 Reserved
