Lumens VC-A70HB Firmware Upgrade

VC-A70H Firmware(FW) Upgrade 7
8. PAN/Tilt Motor Control FW
8.1 Please refer to 4.2 Connections for FW upgrade
8.2 Please return the DIP switch to the default position (all off), and then plug in the
power cord.
8.3 After connecting, set the DIP Switch 1,2,4 ON for the PAN motor.
**Note:
- PAN and TILT have different FW and download mode.
- Please upgrade PAN motor first. When FW upgrade for PAN finished, please change
the DIP switch and then upgrade the TILT motor.

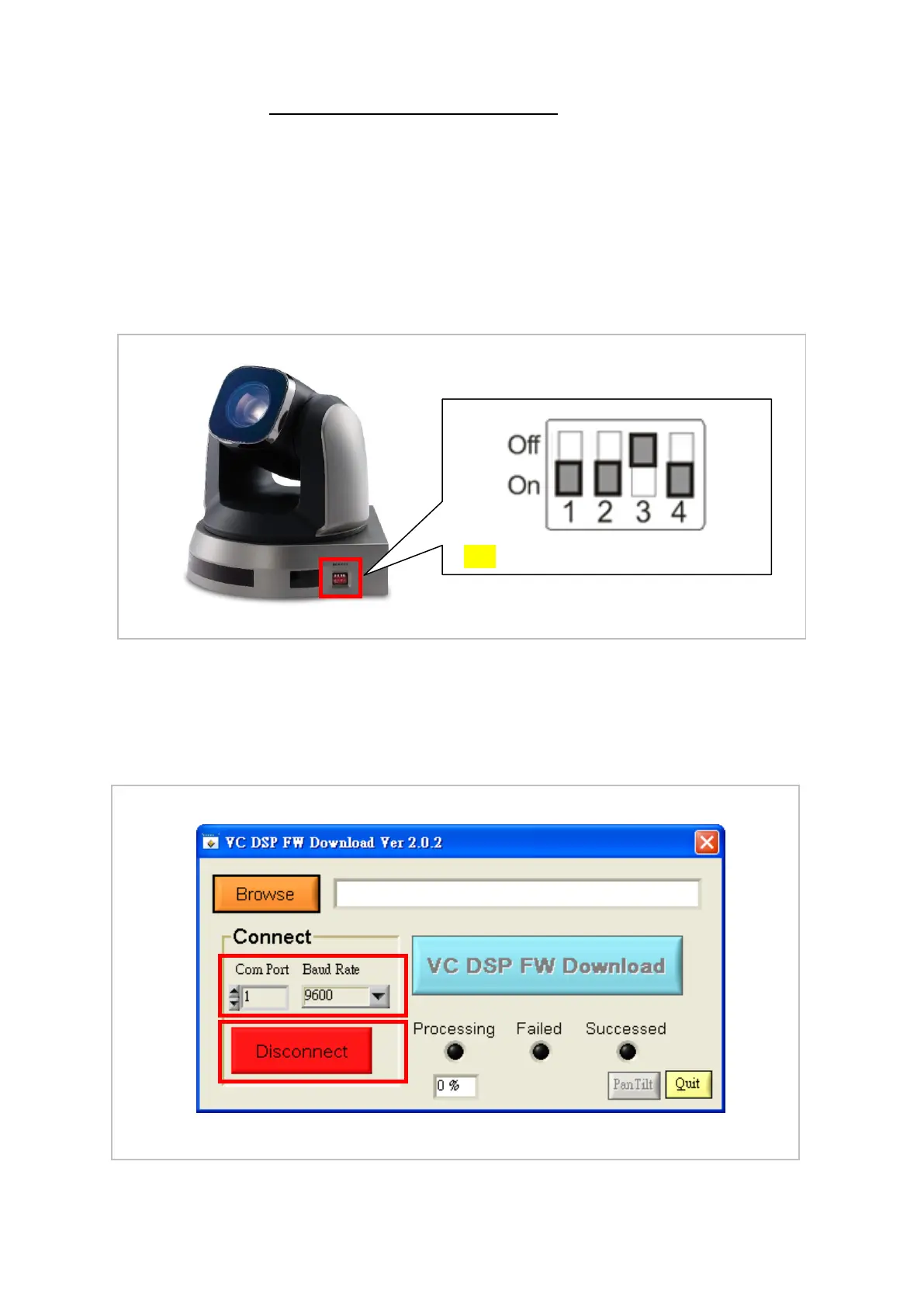

8.4 Launch the AP [VC DSP FW download]
• A: Select the [Comport] and set the [Baud Rate] to [9600]
• B: Press [Disconnect] for connection.
The button will turn to green [Connect] when it is connected.
A
B
( PAN Motor Control Download Setting)
