From rmware version 2.0 onwards the LCD display has been activated and the following information can
be found on the display.
In normal operation the LumiNode will step through the port overview pages depending on the total
amount of ports on the model. If more than 4 ports are available, the display will change every 5 seconds.
The following image is showing the layout of the display:
(A) Short name of the device (default is the model of the device).
(B) IP address/Netmask ( /8 = 255.0.0.0, /16=255.255.0.0, /24=255.255.255.0). If advanced networking is
congured, the LCD display will not be showing the IP conguration.
(C) Port number.
(D) Shows if the port is an input or an output.
(E) Shows the mode of the process engine.
For a more detailed view per port, you can use the jog wheel and scroll to the right.
Example of detailed port info:
(A) Port number you are viewing.
(B) When the RDM icon is showing, RDM is enabled on this port.
(C) Shows if the port is an input or an output.

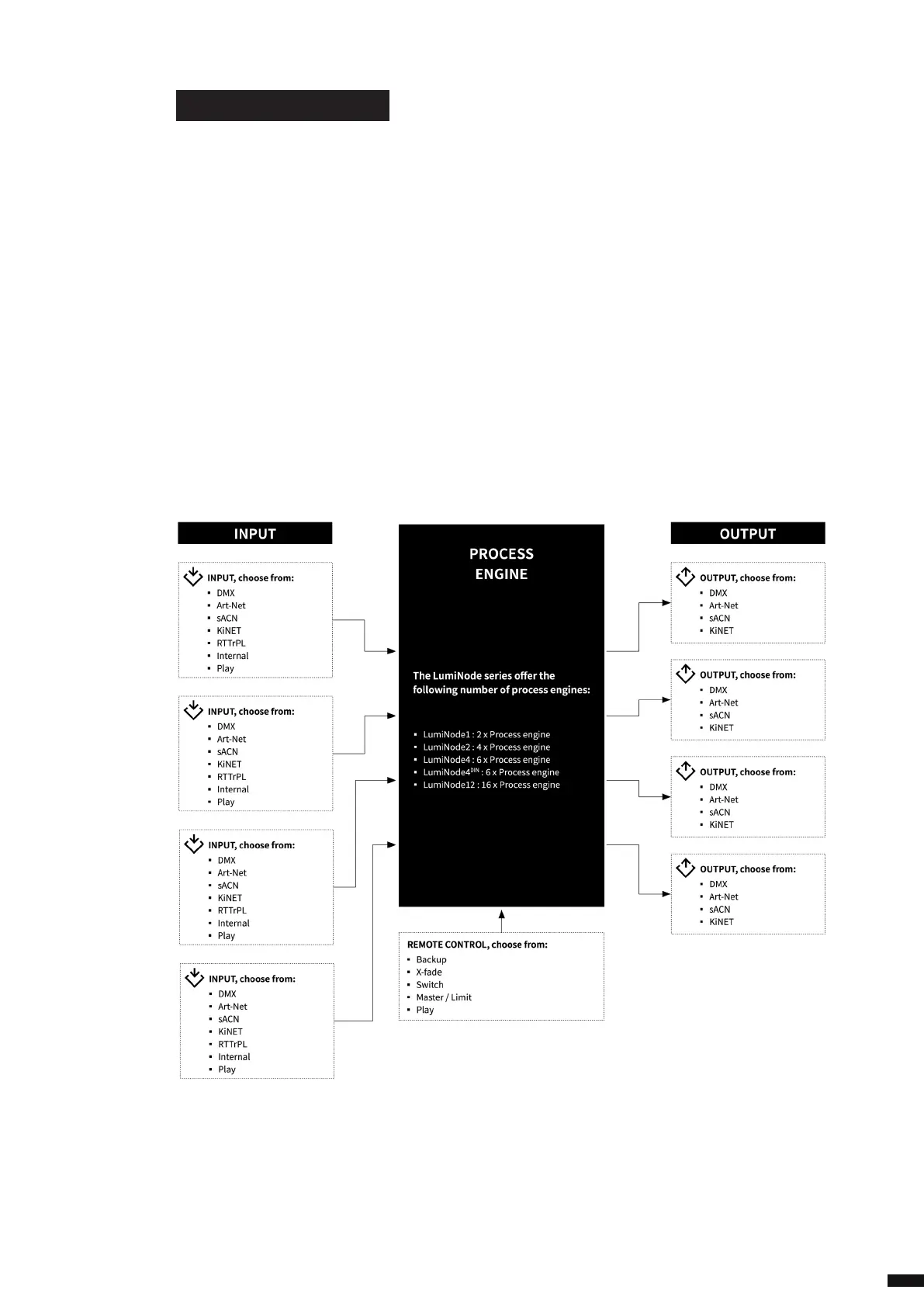

(D) Shows the input of the process engine, what protocol and which universe.
(E) Displays which process engine is linked, what mode the process engine is in, if there is a patch or if the
master/limit has been set.
(F) Shows the output of the process engine, universe number and protocol.
23
4. LCD Display
