Lund Genesis - Step 13: Inspect Front Clamps and Use Safety Pin; Securing Front Clamps - Fold Cover Forward; Unlatching and Securing Latches for Folding and Stowing Center

5
6
7
8
9
1
2
3
4
5
4
5
6
7
8
13
14
15

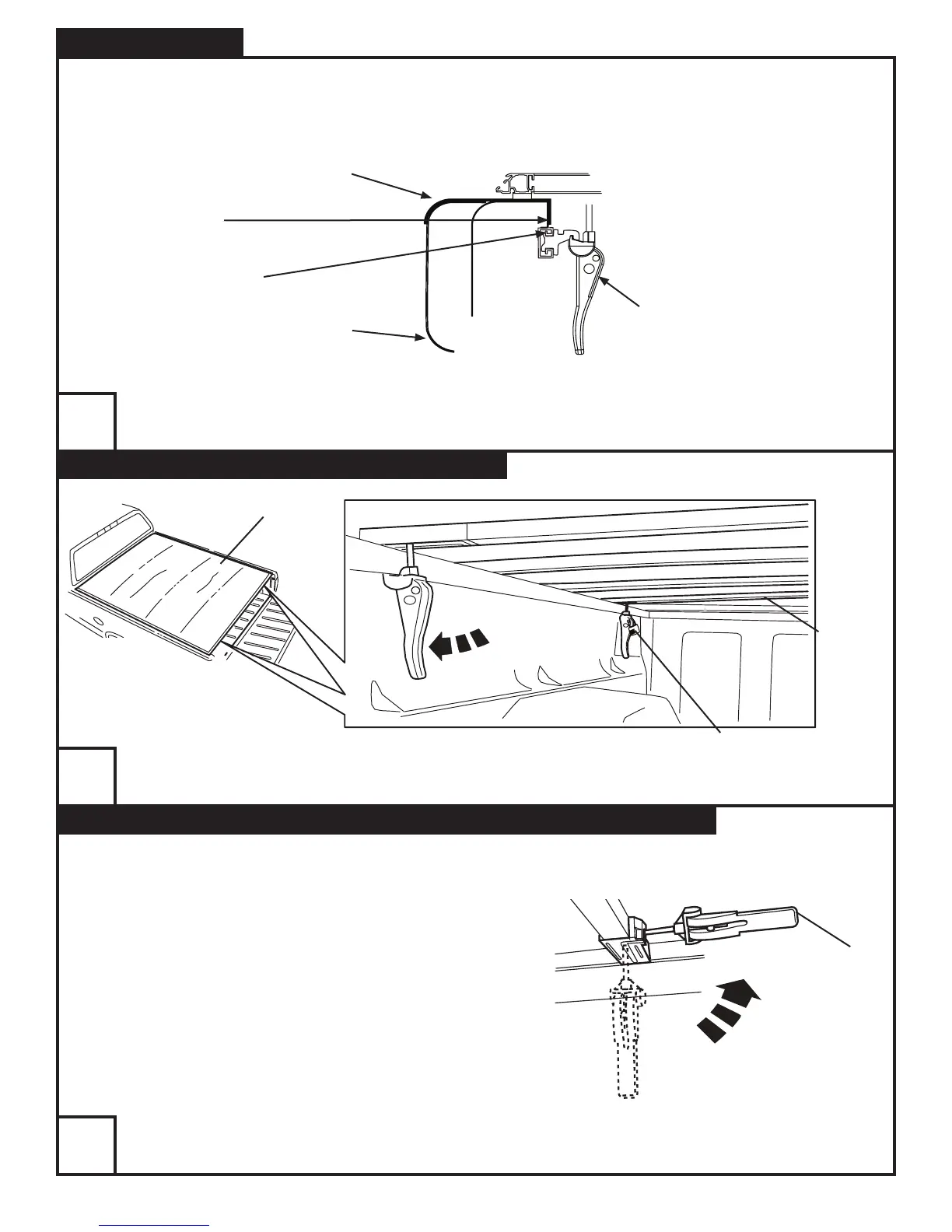

After clamping Tonneau inspect clamps to make sure the pinch weld is seated properly in the notch on the clamp. Trim the bed
cap at the clamp location if it extends down past the metal.
If traveling with the Tonneau in the folded position it is recommended to use a safety pin or lock in the front clamps.
Rotate clamp up from its install position into its storage position as shown.
Make sure that latch handle matches illustration on bow caution label.
Bed Cap
cover
Repeat Step 11 thru Step 14
Front Driver Side Clamp
cover
cover
1/4” Safety Pin / Lock Hole
Pinch Weld
Clamp Notch
Outside sheet metal
Securing Front Clamps - Fold Cover Forward
Unlatching and Securing Latches for Folding and Stowing Center
Installation Steps
NOTE: Actual application may vary slightly from illustrations.
Page 6 of 7
