Page 5 of 7
Installation Steps
NOTE: Actual application may vary slightly from illustrations.

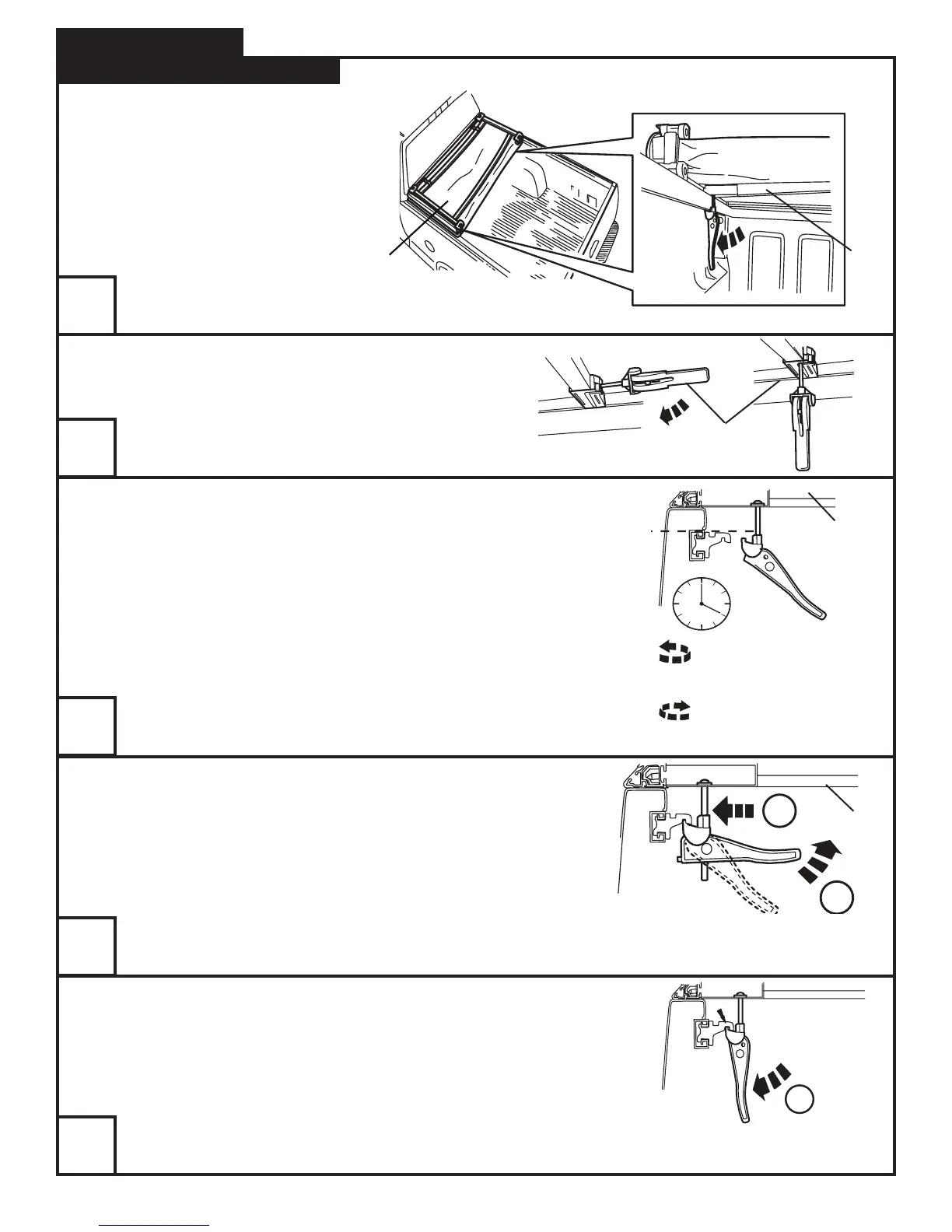

Securing Both Rear Clamps
NOTE: Clamp handle must rotate completely down to
the stop to be locked. If something interfers with
the handle (bed liner, bed extender or cargo, etc.)
it must be modified or removed.
cover
bow
Rotate each clamp down from its storage position.
12
4
cover
•
Raise to Tighten (Up)
•
Lower to Loosen (Down)
Adjust clamps to proper height. Make sure that the inner bedwall structure and clamp lid are
aligned as shown by dashed line. Handle height should be adjusted, such that, the clamp
contacts the bed rail flange while the handle is in the 4 o’ clock (LH) or 8 o’clock (RH) position.
1
2
bow
Rotate handles back up and slide clamps to edge of truck bed as shown. For ease
of sliding outward, the latch handle should be in this position until the clamp
engages the bed flange.
Reverse process for folding and stowing cover.
Rotate clamps to locking position. Repeat for opposite side. Note: A light to moderate
force should be felt when latching to the truck bed. The latches should NOT be loose
when in the LOCKED POSITION.
Reverse process for folding and stowing cover.
3
