Lund Genesis - Step 5: Secure Front Clamps; Step 7 A: Unfold Second Section; Step 7 B: Prepare Rear Rail; Step 7 C: Unfold Third Section

A
A
B
.
Installation Steps
5
Page 4 of 7
6
7

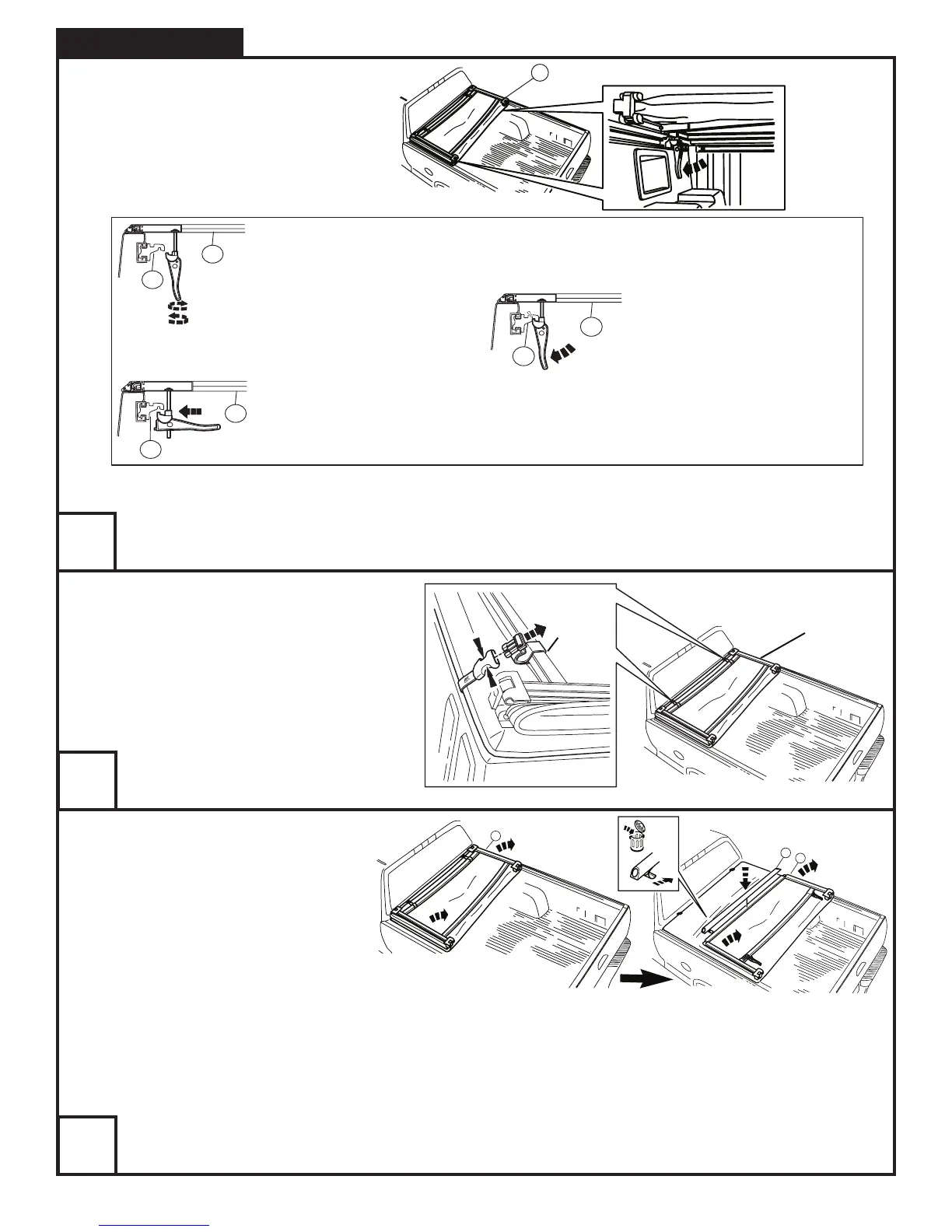

NOTE: Actual application may vary slightly from illustrations.
Secure both front clamps.
Warning: Prior to vehicle operation, inspect clamps to make sure the lip on clamp is properly seated in the utility track adaptors.
7A Unfold second section of the cover
7B Make sure there is no dust or debris on the rear rail. Apply supplied foam (Item B) to the rear rail of cover (Item A).
7C Unfold third section of the cover.
A
Tighten
Loosen
•
•
A
C
A
C
A
C
Slide clamps to edge of truck bed.
Rotate clamps down from its storage position.
Adjust clamps to proper height.
Rotate clamps to locking position.
Repeat for opposite side.
Note: Repeat steps for rear clamps.
The cover has retaining straps with quick-release
buckles to keep it from being damaged when bulk
hauling or when it is not on the vehicle.
cover
cover
