Lund REVOLUTION - Bull Bar Attachment and Final Tightening

I-Sheet Number I-20251 Rev.A
REVOLUTION BULL BAR
2007-CURRENT CHEVY SILVERADO1500/GMC SIERRA1500
2007-CURRENT TAHOE/SUBURBAN/YUKON/YUKON XL
2007-14 CADILLAC ESCALADE 1500/ESV/EXT
2007-13 CHEVY AVALANCHE
Page 5 of 7 11/21/16

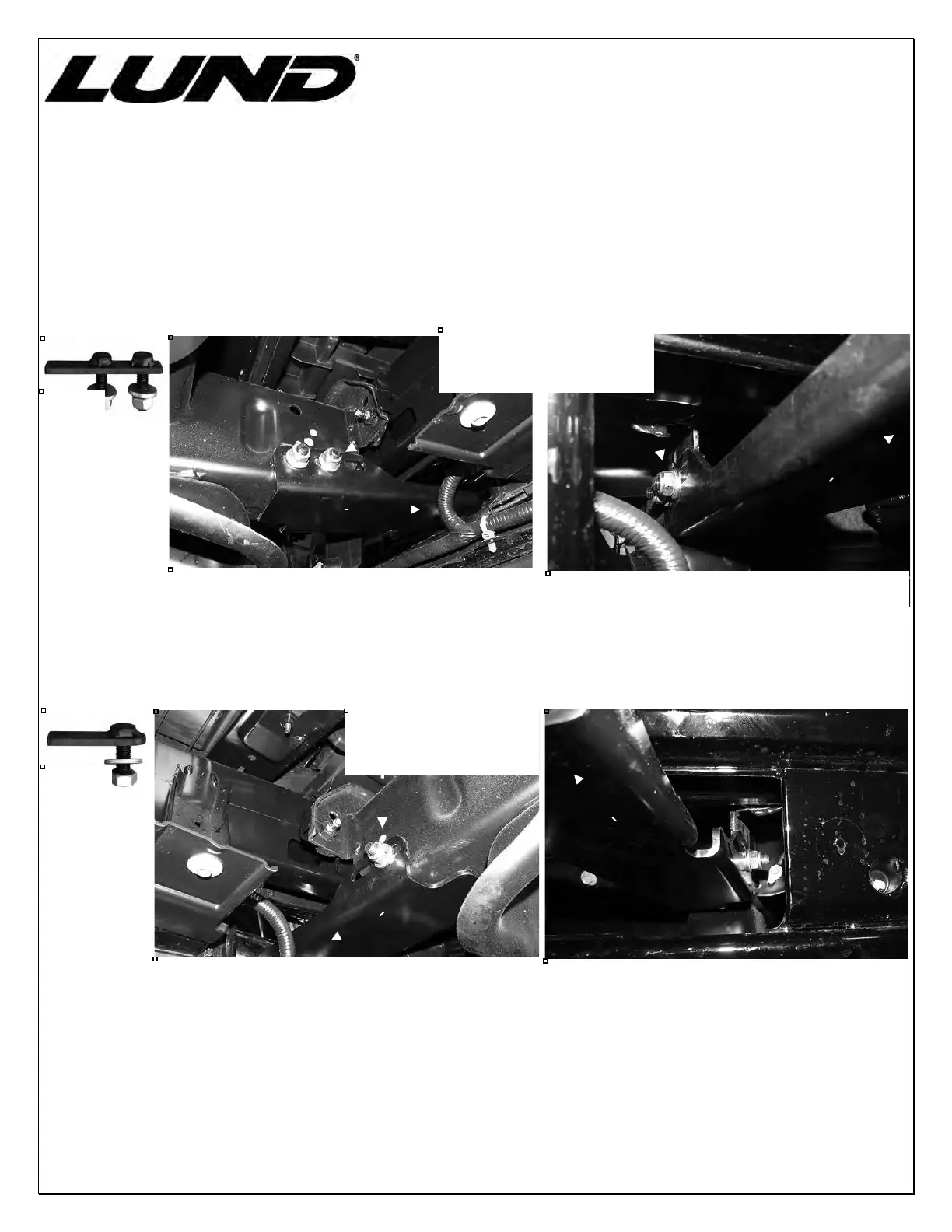

3. Line up the holes in the Bracket with the holes in the end of the frame channel for the tow hook. Select (1)
12mm Double Bolt Plate, (Figure 6A). Insert the Bolt Plate into the end of the frame, through the (2) holes
in the side of the frame and out through the Bracket, (Figures 5, 6B & 6C). Secure the Bracket to the Bolt
Plate with (2) 12mm Flat Washers and (2) 12mm Nylon Lock Nuts, (Figure 6B). Snug but do not fully
tighten hardware at this time.
4. Repeat Step 3 to install the 12mm x 35mm Single Bolt Plate, (Figure 7A), into the remaining hole in the
other side of the frame channel and Bracket, (Figures 5, 7B & 7C).
Fig 6A
12mm Double Bolt Plate
(2) 12mm Flat Washers
(2) 12mm Nylon Lock Nuts
(Fig 6B) Note Bracket installed in “forward”
position to move Bull Bar away from bumper
(Fig 6C) Inner driver side Bracket with Double
Bolt Plate
Front
Front
Bracket
Fig 7A
(Fig 7C) Outer driver side Bracket with Single
Bolt Plate
Front
12mm Single Bolt Plate
12mm Flat Washer
12mm Nylon Lock Nut
(Fig 7B) Passenger Bracket installed in “forward”
position to move Bull Bar away from bumper
Front
