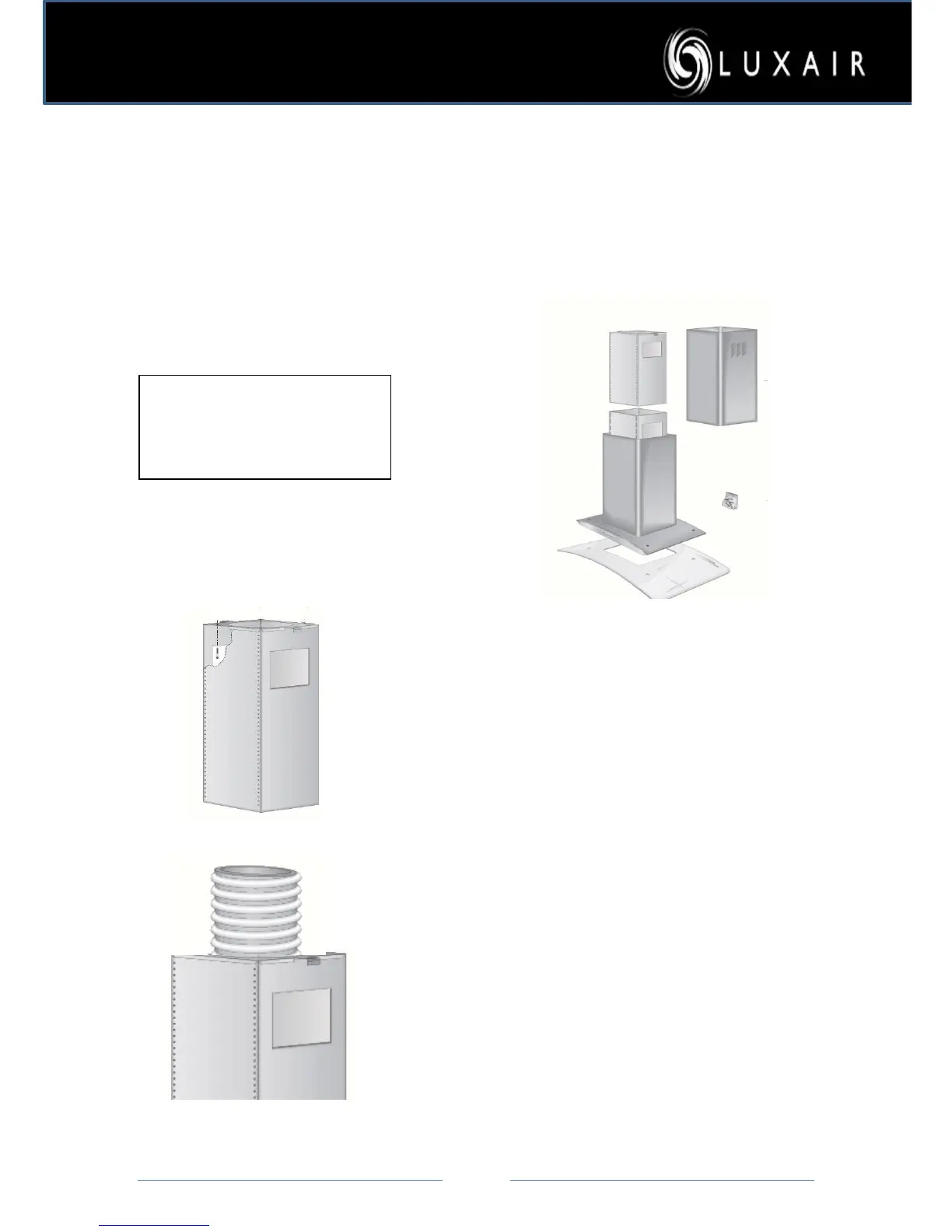

Installation- all Island hoods
Please note: All Luxair Islands are installed in ex actly the s ame manner and it is
only the shape and design that
differ, please use the following steps for all Island
unit models
Please note that the installation of all Island hoods should be
carried out by at least two people.
Position the inner top section of
the upper arm directly on the
ceiling and above your hob and
mark the center hole, also mark
fixing
positions. Make sure you are
center to your hob.
2
Make sure that your fixings will
hold at least 75kg in weight; this
must
also be flush with the ceiling.
Drill a 150mm hole in the ceiling
and
connect your ducting, run it to
the outside wall, this must not
exceed 4mtrs in length.
3
Pass the ducting hose and
electrical cable through the center
hole of the Ceiling top inner arm.
Proceed to secure the arm to your
ceiling using either coach screws
(provided) or coach bolts (not
provided). It is paramount
that these fixings are strong
enough to hold the weight of the
All Island hood must be flush
mounted and under no
circumstances must the chimney be
inset into the ceiling void.
To Next Page
