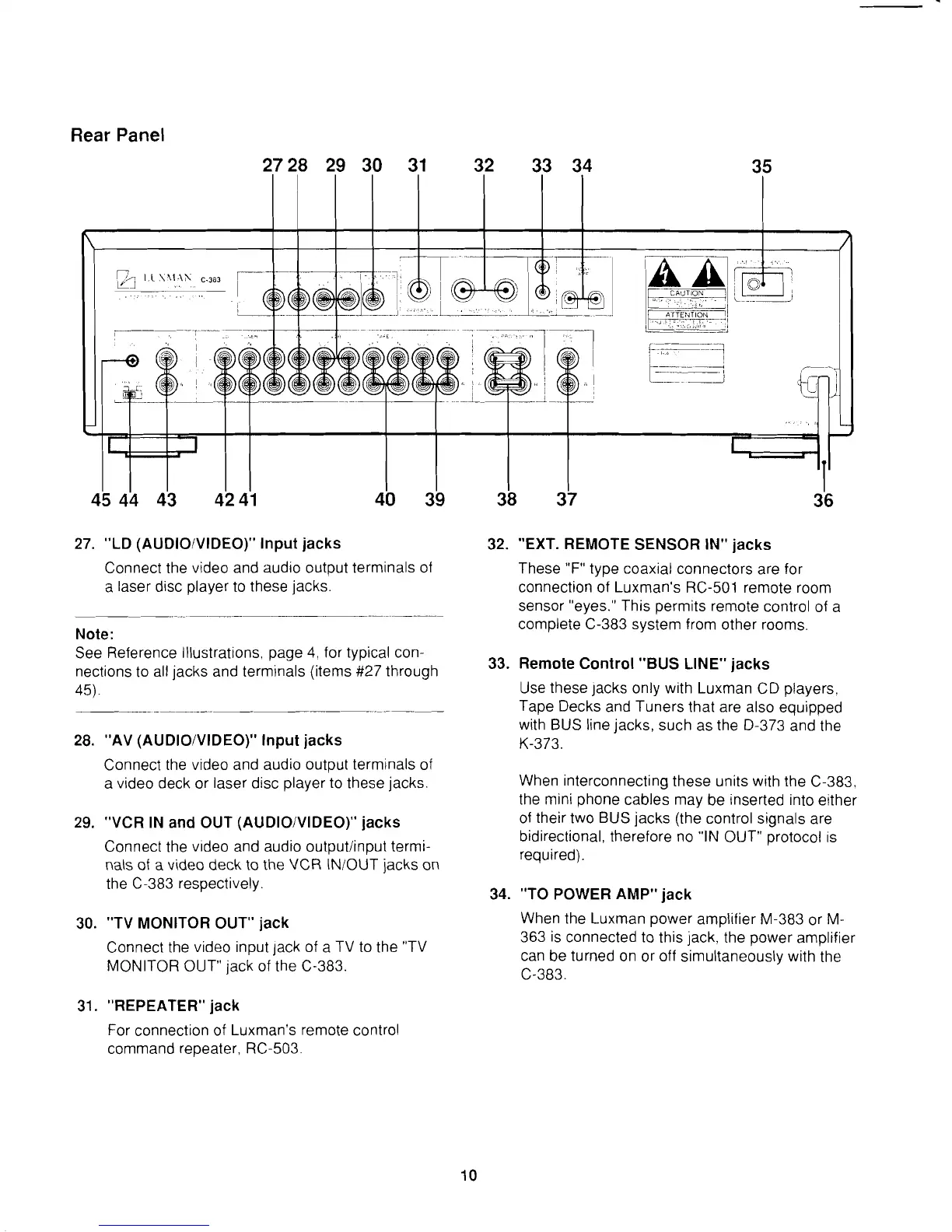

Rear
Panel
27.
"LD (AUDIOiVIDEO)" lnput
jacks
Connect the video and audio output terminals of
a laser disc player to these jacks.
Note:
See Reference Illustrations, page 4, for typical con-
nections to all jacks and terminals (items
#27
through
45).
28. "AV (AUDIOIVIDEO)" lnput
jacks
Connect the video and audio output terminals of
a video deck or laser disc player to these jacks.
29.
"VCR IN
and
OUT (AUDIOIVIDEO)"
jacks
Connect the video and audio outputlinput termi-
nals of a video deck to the
VCR
INIOUT jacks on
the C-383 respectively.
30.
"TV MONITOR OUT"
jack
Connect the video input jack of a TV to the "TV
MONITOR OUT" jack of the
(2-383.
32. "EXT. REMOTE SENSOR IN"
jacks
These
"F"
type coaxial connectors are for
connection of
Luxman's RC-501 remote room
sensor "eyes." This permits remote control of
a
complete C-383 system from other rooms.
33. Remote Control "BUS LINE"
jacks
Use these jacks only with Luxman CD players.
Tape Decks and Tuners that are also equipped
with BUS line jacks, such as the D-373 and the
K-373.
When interconnecting these units with the C-383.
the mini phone cables may be inserted into either
of their two BUS jacks (the control signals are
bidirectional, therefore no "IN OUT" protocol is
required).
34. "TO POWER AMP"
jack
When the L.uxman power amplifier M-383 or M-
363 is connected to this jack, the power amplifier
can be turned on or off simultaneously with the
C-383.
31.
"REPEATER"
jack
For connection of Luxman's remote control
command repeater, RC-503.
