8
Names and Functions
1. Input indicator (IN:)
Displays the input terminal selected with the input selector
or remote control.
2. Volume indicator (VOL:)
Indicates the current volume level in steps of 1 dB.
• “- -“ shows the mute state. No sound is generated.
• The minimum volume level is shown as “–87 dB”, and the
maximum volume level is shown as “0 dB”.
3. Loudness indicator (LOUDNESS)
Lights up when the loudness switch on the remote control
is set to ON.
4. Balance indicator (BAL)
Lights up when the balanced output terminal is selected for
the output mode.
5. Standby indicator (STAND BY)
Lights up when the main power switch on the rear panel is
turned on and the operation switch is turned off.
When the operation switch is turned on or when the main
power switch is turned off, this indicator turns off.
6. Unbalance indicator (UNBAL)
Lights up when the unbalanced output terminal is selected
for the output mode.
7. Remote sensor (REMOTE)
Receives signals from the accessory remote control.

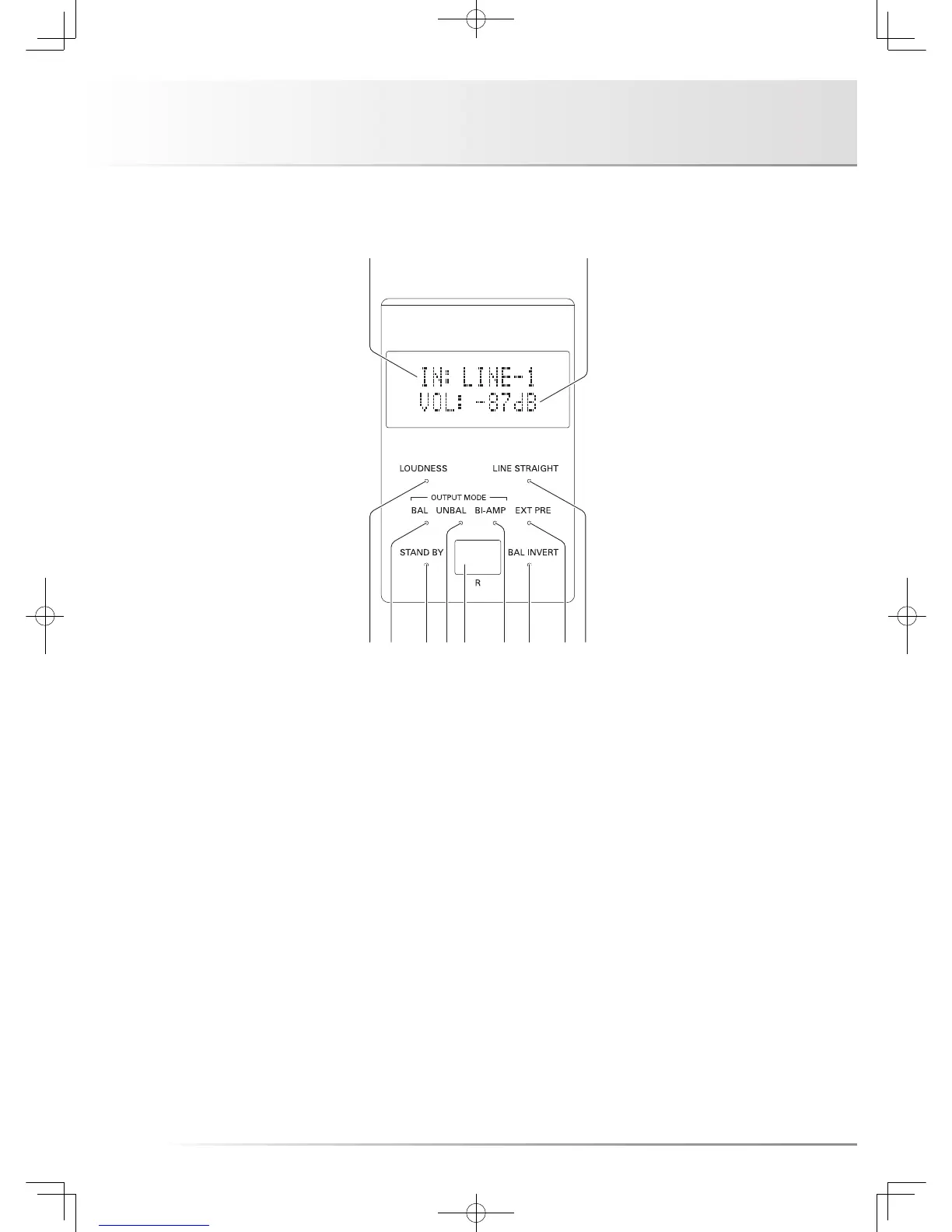

Display window
