8

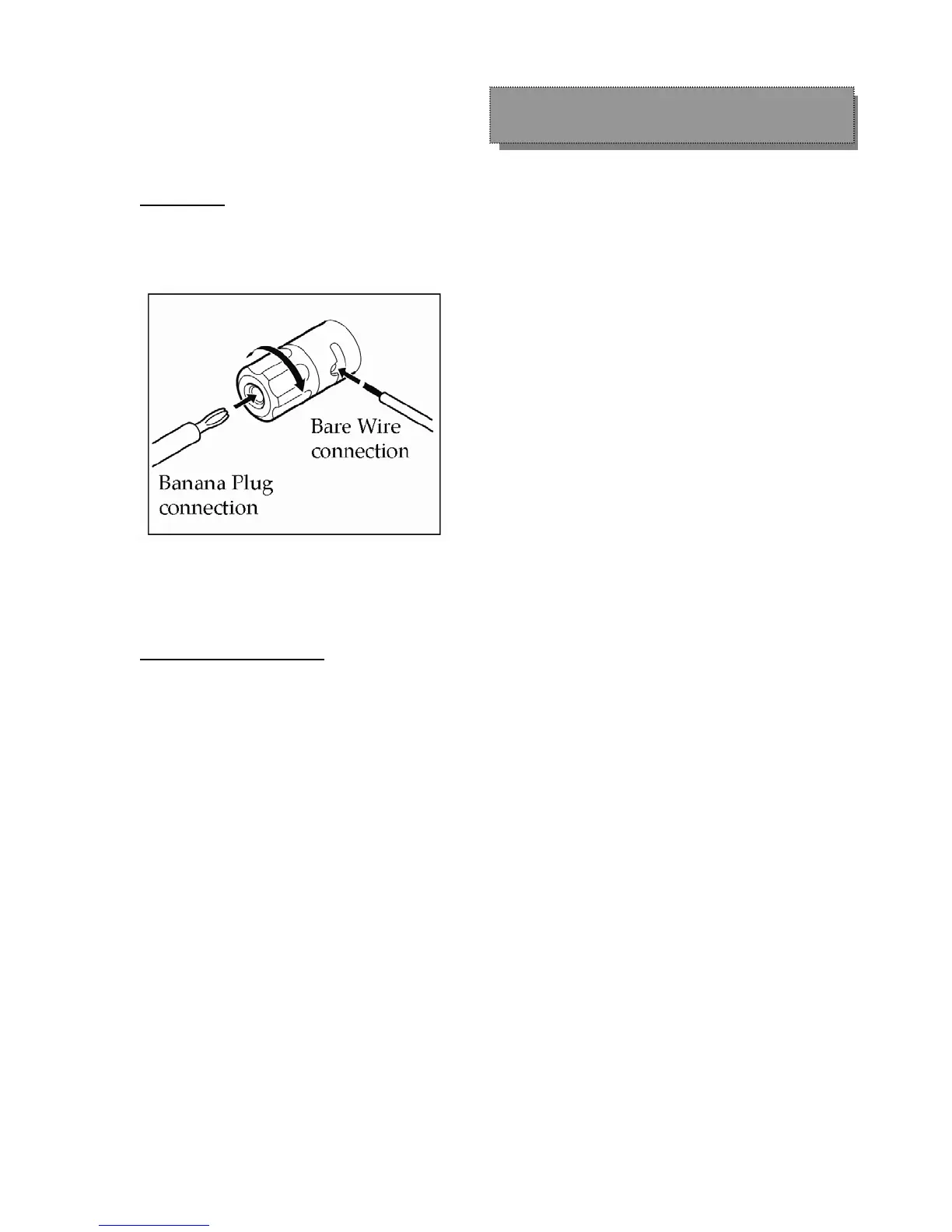

Spade Lug:
Insert the spade lug connector or prepared section of the cable end into the terminal side access
hole, and tighten the terminal cap until the cable is firmly clamped into the terminal so the wires
cannot slip out.
Banana Plug Connection
Remove the black plastic cap in the center of the speaker terminal and insert the banana plug.
Note: Please take care to observe the correct polarities. Otherwise one or both speakers
might be out of phase. When both speakers are out of phase, for example, the
singer will not be clearly defined in the center of the soundstage, but smeared
across the center. Bass will not be as taut…
Speaker Connections contd.
