INSTALLATION
The M-800A can be placed upright on a table (amplifier stand) or shelf, standing on its four feet. It
also can be custom installed in piece of furniture or cabinet of your choice.
Always provide adequate ventilation for your M-800A. Cool operation ensures the longest possible
operating life for any electronic instrument. Do not install the M-800A directly above a heat generat-
ing component such as a high powered amplifier. If all the components are installed in a single
cabinet, a quiet running ventilation fan should be utilized to maintain all the system components at
the coolest temperature
.
Allow at least 6’ above the amplifier, 2” all around.

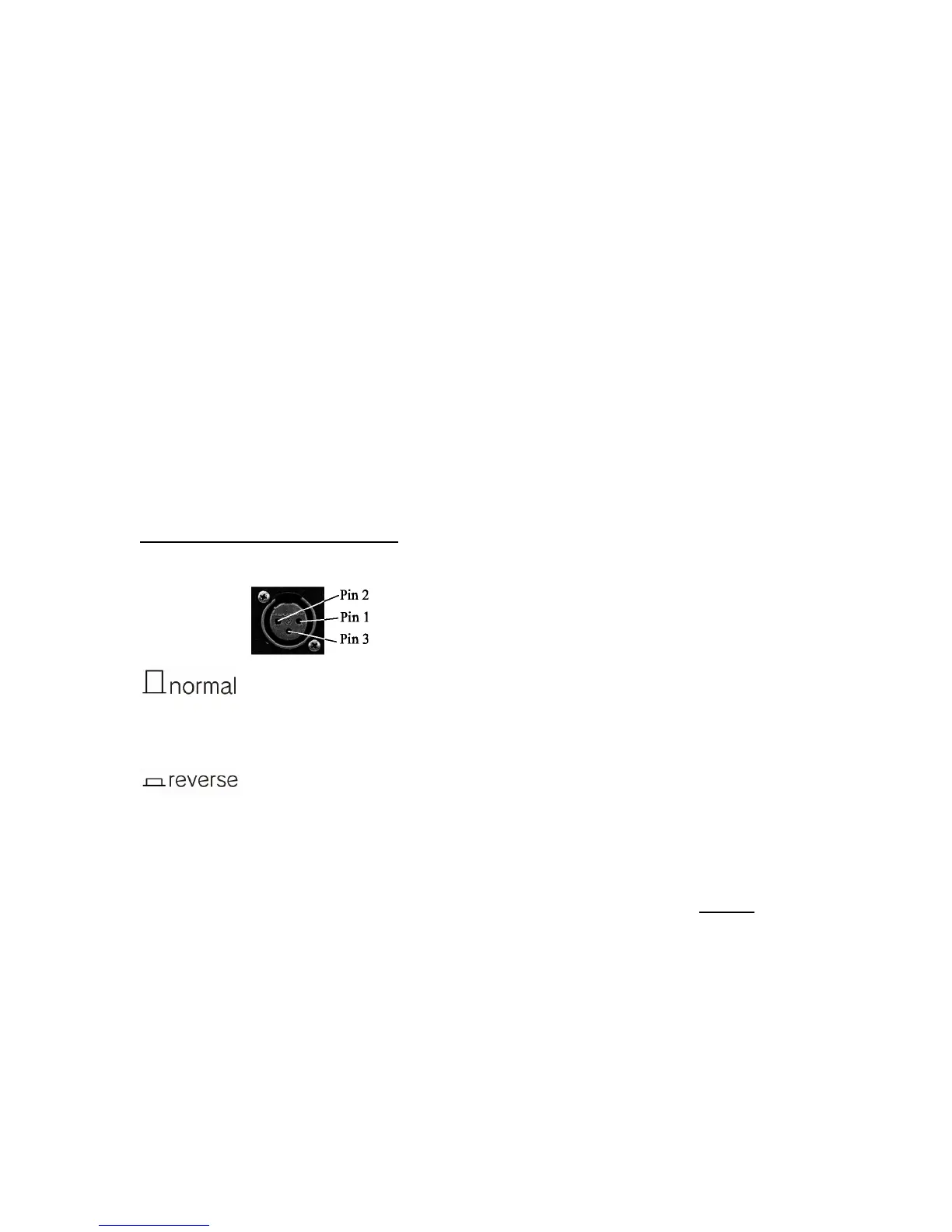

XLR Balanced Connection Pin Out
1. Ground
2. Cold –
3. Hot +
1. Ground
2. Hot +
3. Cold -
In the USA, most balanced products use Pin 2 = Hot or + (this is the reverse switch
setting).
