R FR 5018 Reference Manual. Rev 1.0
Page 11 of 24

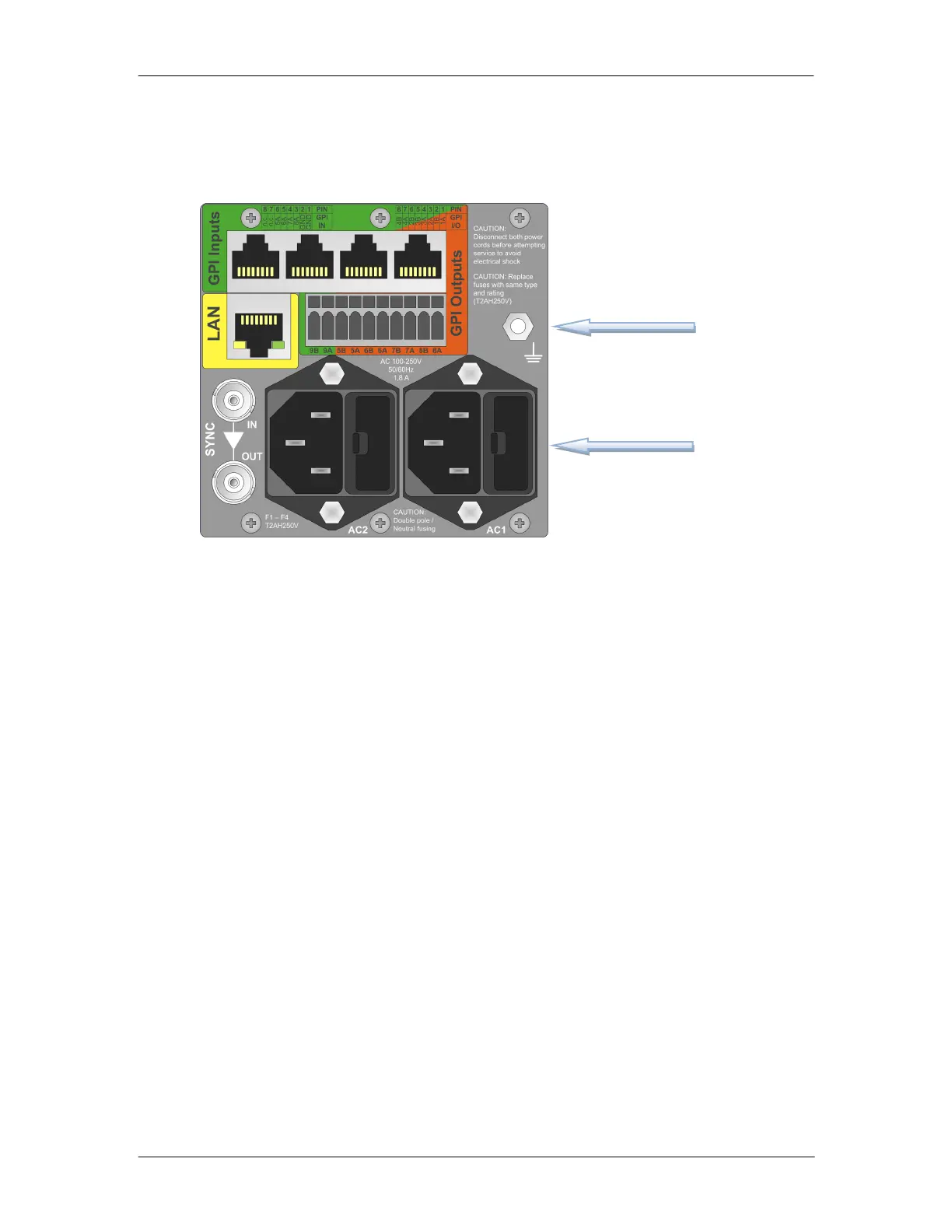

Rear Termination Panel
The R FR 5018 has an integral termination panel on the rear of the rack for the
connection of power and various other connections for expansion and interfacing.
Rack Connections
Power Connection
There are two power connections provided for the rack. One is for primary power and the
second for the optional redundant power supply. Input power range is 100 to 240VAC 50
to 60Hz. Connection is made using an IEC power cable. For systems without redundant
power connection is made to AC1 in only. The power fuses are in the connector
assembly and removal of this small module will enable fuse exchange. Please ensure
you use the correct fuse rating. (2A). (2 fuses required, double pole neutral fusing is
implemented)
A stud is provided on the termination panel for the connection of an external ground
Note: the chassis is permanently grounded via the AC connections
Caution
Service to be performed by qualified personnel only
Caution
Please remove power before attempting to exchange a power fuse. Only replace
the fuse with a correctly rated replacement. For safety DO NOT physically
disconnect or isolate the rack from earth for any reason.
Connection to external ground
