R FR 5018 Reference Manual. Rev 1.0
Page 9 of 24
Getting Started
Packaging
The shipping carton and packaging materials provide protection for the rack frame during
transit. Please retain the shipping cartons in case subsequent shipping of the product
becomes necessary.
Product Description
The R FR 5018 is a high quality 2 RU high 19 inch rack frame enclosure for the LYNX
Series 5000 CardModules, designed primarily for broadcast and professional
applications.
The rack frame can accept up to 10 Series 5000 CardModules plus an optional controller
card. All modules are installed from the front. Module connection plates are supplied with
each CardModule and are mounted on the rear of the rack to align CardModules
installed. All CardModules and power supplies are hot swappable.
The R FR 5018 features connections for remote alarming and GPI conncetions. A LAN
connection is also provided for use with the optional R CT 5023-G Controller.
Optional redundant power capability can be installed and two separate AC power
connections are provided for maximum isolation. The power supplies have sophisticated
power filtering with microprocessor control for power and temperature monitoring and
communication with the control system. An on board multifunction LED has various
states to indicate different alarm conditions and a separate GPO alarm output is provided
for connection to an external monitoring system.

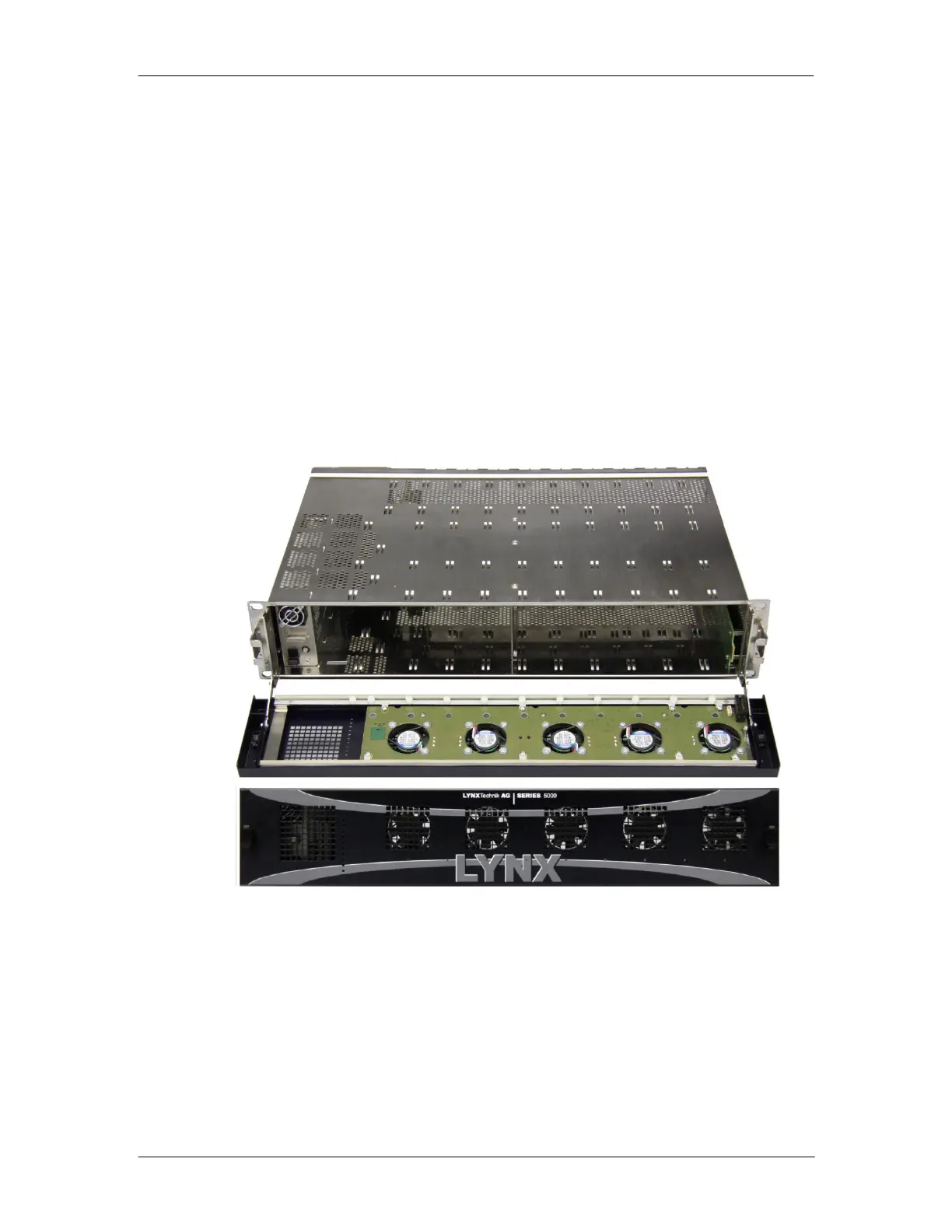

The R FR 5018 rack frame has a front cover with integrated fans for applications where
no external forced cooling is available or if modules with high power dissipation are used
in this rack frame.
