R FR 5018 Reference Manual. Rev 1.0
Page 15 of 24

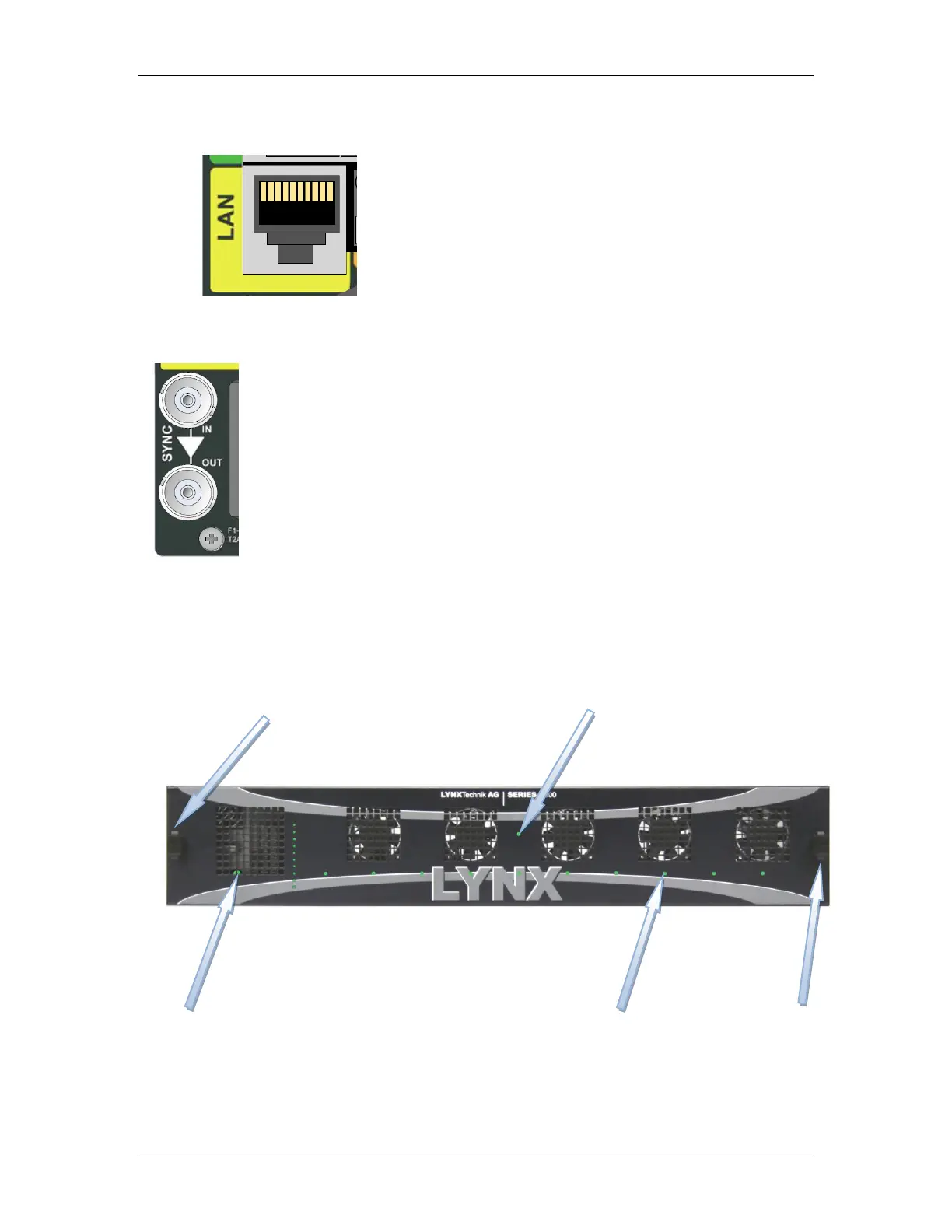

LAN Connection
This is a standard RJ45 connection and is used to provide
TCP/IP network control connectivity into a control system.
External Sync Connection
An external sync reference can be connected to the rack. An active loop through
connection is provided with relay bypass in the event of a power failure.
The sync signal can be black / black burst or b-level composite analog NTSC or
PAL sync or analog HDTV Tri-Level-Sync. This provides a single common
reference to all module slots in the rack and can simplify the distribution of the
reference signal in some installations. (Example connection of house sync)
Alarm/LED Status Indicators
There are a number of status / alarm indicators visible on the front panel of the
R FR 5018 Rack frame when closed.
Fan Alarm LED
Please refer to table below
for indication status
Individual Module Alarm:
Function is determined by the module
installed. Please refer to the manual for
the specific module
Locking Clip
to open cover
Locking Clip
to open cover
Power Supply Indicators:
One LED per power supply (Primary
and Redundant).
Please refer to table below for
indication states.
